GIGABYTE B850 AORUS ELITE WIFI7 – AM5 ATX Motherboard, 14+2+2 VRM, PCIe 5.0 x16 and M.2, Wi-Fi 7, 2.5GbE

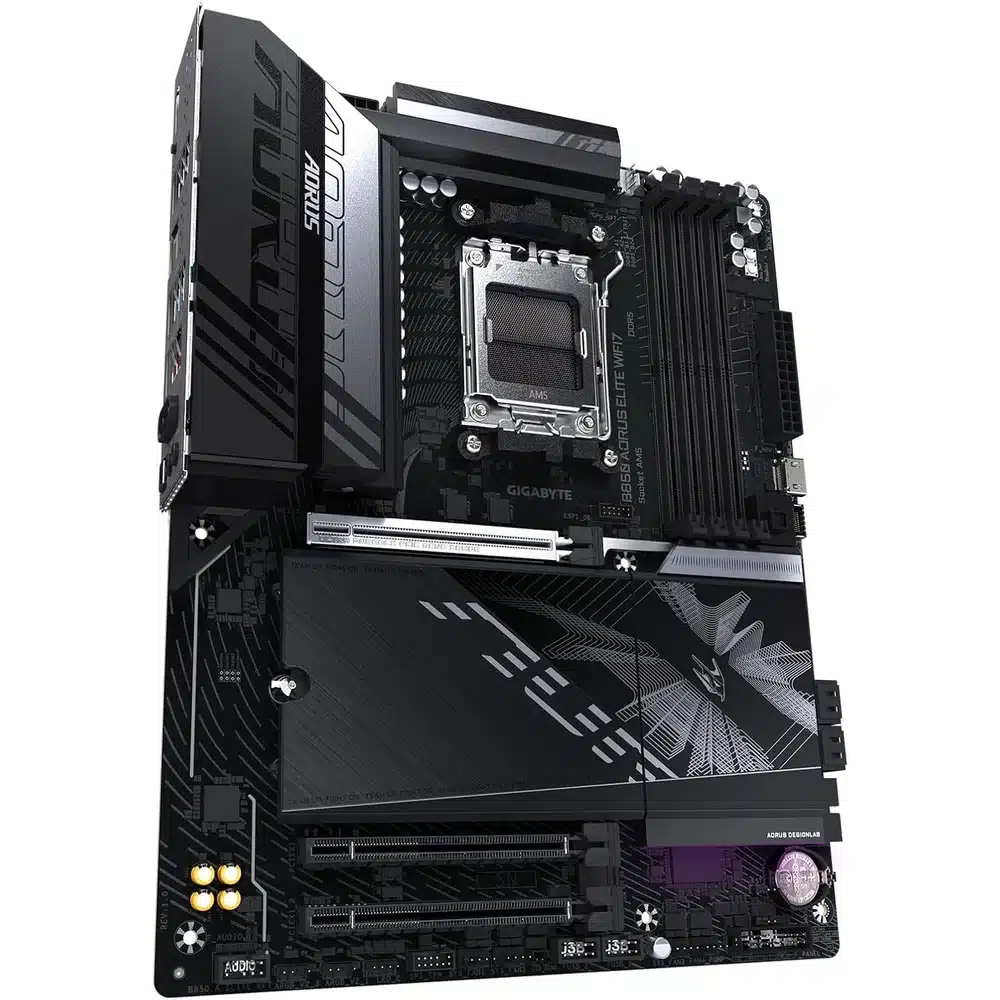

The GIGABYTE B850 AORUS ELITE WIFI7 is an ATX motherboard for AMD’s AM5 socket, built on the B850 chipset for Ryzen 9000, 8000 and 7000 processors. With a Ryzen 9000 or 7000 CPU, the B850 AORUS ELITE WIFI7 gives you PCIe 5.0 on the main graphics slot and on one M.2 slot, plus two more PCIe 4.0 M.2 slots, Wi-Fi 7 and 2.5GbE networking. What the board actually delivers depends on the processor you pair it with, and the slot-by-slot breakdown below sets that out.

B850 AORUS ELITE WIFI7: Which Ryzen Chips It Takes

GIGABYTE lists support for Ryzen 9000, Ryzen 8000 and Ryzen 7000 processors on socket AM5. All three fit, but they do not unlock the same features. A Ryzen 9000 or 7000 CPU brings the full set of CPU PCIe lanes, so the top graphics slot and the first M.2 slot run at PCIe 5.0. The Ryzen 8000 desktop APUs (GIGABYTE groups them as Phoenix 1 and Phoenix 2) have fewer lanes, and the board steps down to match, as the next section shows.

The chipset itself is AMD B850. On the B850 AORUS ELITE WIFI7 the PCIe 5.0 graphics slot is wired by GIGABYTE, since AMD leaves PCIe 5.0 graphics optional on B850 boards; it is the board wiring, not the chipset name alone, that decides what you get. GIGABYTE supports Windows 11 64-bit only.

PCIe Slots and M.2 Lanes, Slot by Slot

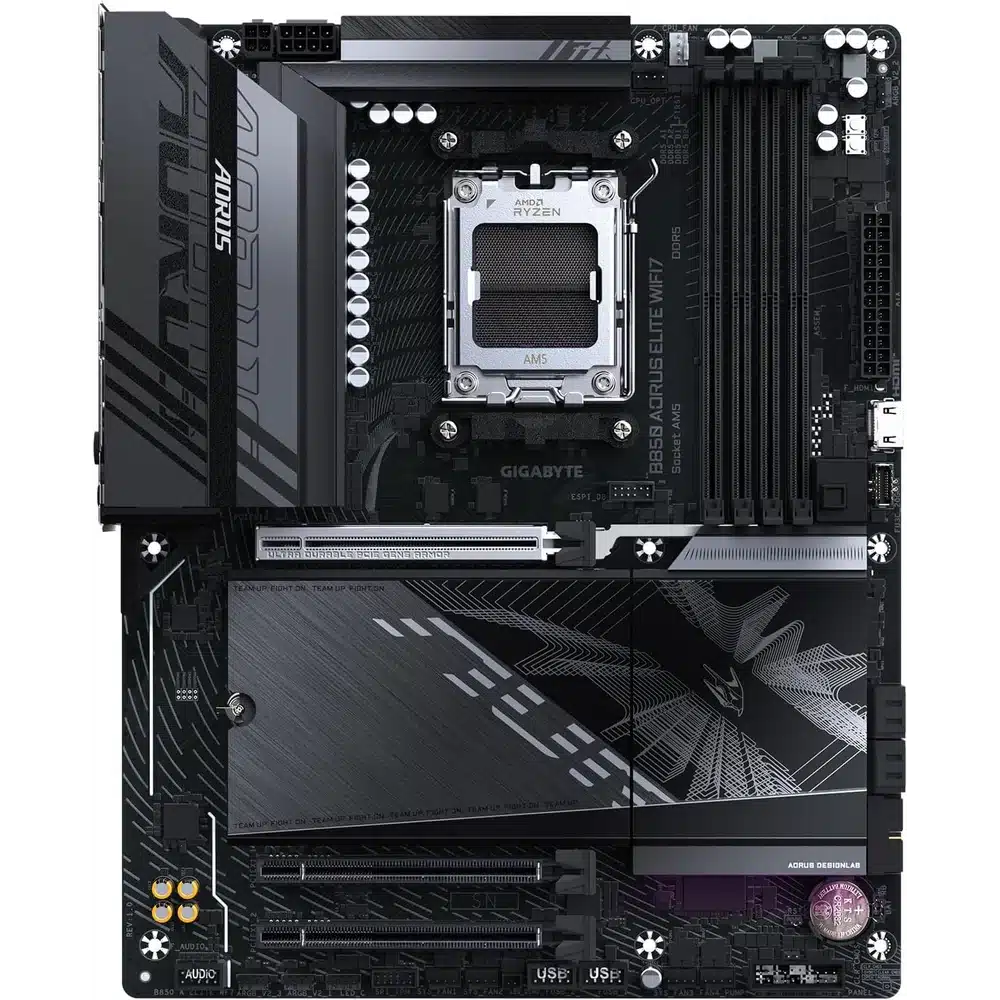

On the B850 AORUS ELITE WIFI7, the main PCIEX16 slot is wired to the CPU. GIGABYTE lists it at PCIe 5.0 x16 with Ryzen 9000 and 7000, PCIe 4.0 x8 with Ryzen 8000 Phoenix 1, and PCIe 4.0 x4 with Ryzen 8000 Phoenix 2. The two other full-length slots come from the chipset and run at PCIe 3.0 x1, so they suit a capture card, network card or sound card, not a second graphics card.

Storage uses three M.2 sockets. M2A_CPU runs PCIe 5.0 x4 with Ryzen 9000 and 7000, and PCIe 4.0 x4 with Ryzen 8000. M2B_CPU runs PCIe 4.0 x4, dropping to x2 with a Phoenix 2 APU. M2C_SB hangs off the chipset at PCIe 4.0 x4. GIGABYTE’s specification does not list any lane sharing between these M.2 slots and the graphics slot, and there are also four SATA 6Gb/s ports. NVMe RAID 0, 1 and 10 are supported, with RAID 5 on Ryzen 9000 only; SATA RAID covers 0, 1 and 10.

Memory: What Is Standard and What Is Overclocking

The B850 AORUS ELITE WIFI7 has four DDR5 slots in dual channel, taking up to 256 GB with 64 GB modules. GIGABYTE’s list runs from 4400 MT/s up to 8200 MT/s, and the product page quotes DDR5 OC up to 8200 MT/s. Anything above the memory speed AMD rates for your processor is an overclock through an AMD EXPO or Intel XMP profile, so the result depends on the CPU’s memory controller and the specific kit. GIGABYTE notes that memory overclocking may vary, and its qualified vendor list (QVL) is the reference for tested kits.

For most buyers, a two-stick DDR5 kit with an EXPO profile is the simple route: enable the profile in the BIOS and check stability. Four sticks at high speed is harder on any AM5 board.

Power Delivery and Cooling on the B850 AORUS ELITE WIFI7

GIGABYTE describes a 14+2+2 Twin Digital VRM, laid out as 7+7 parallel phases, with 60A DrMOS on the 14 VCORE and 2 SOC phases, on a 6-layer PCB with 2X copper. Power comes in through an 8-pin plus a 4-pin 12V CPU connector. The VRM heatsinks use GIGABYTE’s VRM Thermal Armor Advanced with a heatpipe and 5 W/mK thermal pads.

M.2 Thermal Guard Ext. covers all three M.2 slots, and GIGABYTE claims up to 7°C lower SSD temperature with it. Smart Fan 6 controls the fan headers, including a CPU fan header, a CPU fan/pump header, three system fan headers and a hybrid fan/pump header, each rated up to 12V 2A.

Wi-Fi 7, 2.5GbE and USB

Networking is a Realtek 2.5GbE LAN chip plus a Realtek Wi-Fi 7 RTL8922AE module with Bluetooth 5.4 across the 2.4, 5 and 6 GHz bands. The antenna is GIGABYTE’s directional high-gain design and attaches with the WIFI EZ-Plug connector. Wi-Fi 7 speeds need a Wi-Fi 7 router, and 6 GHz needs a router that broadcasts it.

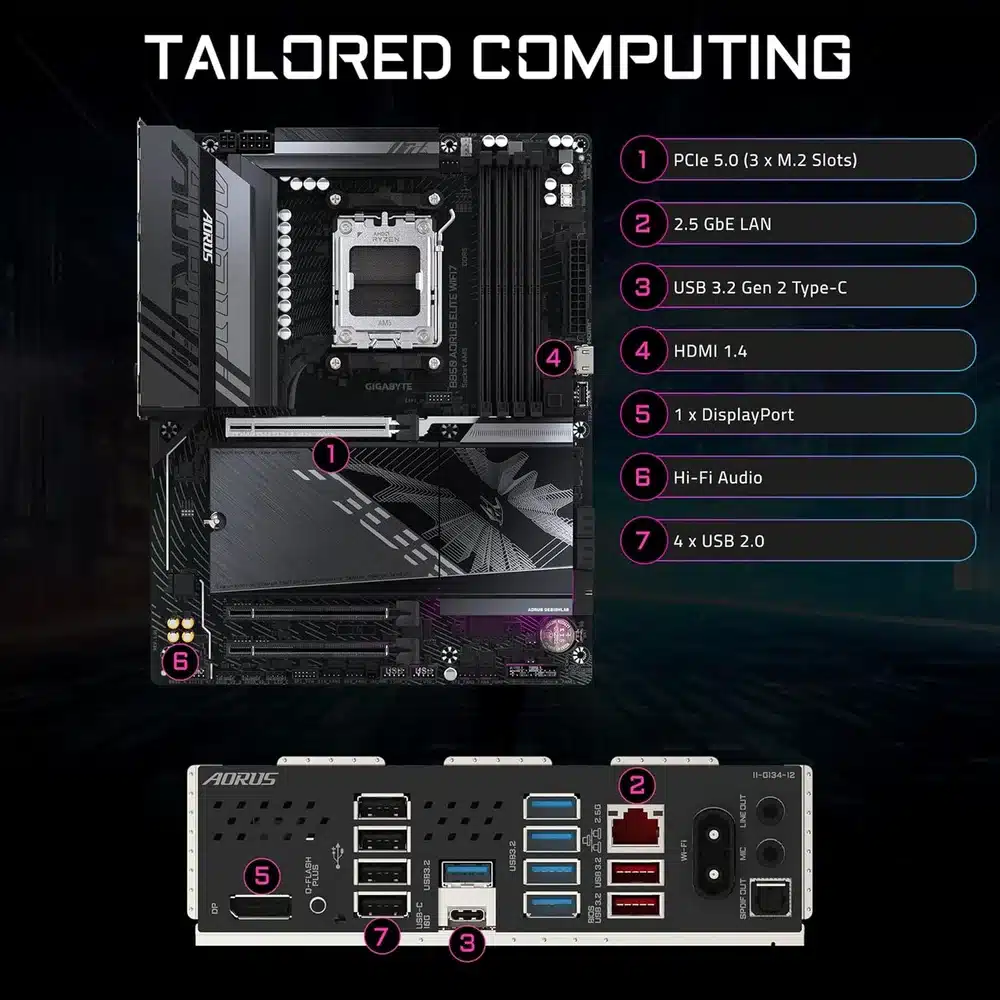

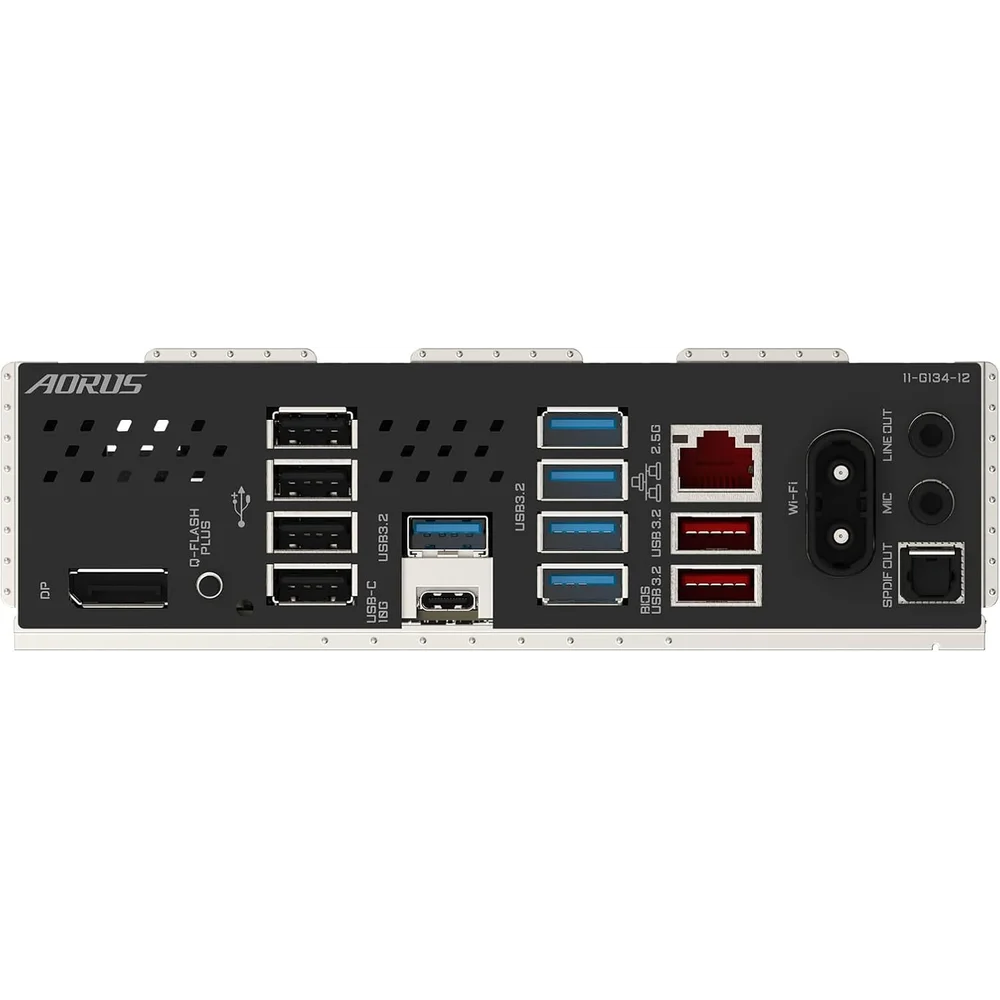

The rear panel of the B850 AORUS ELITE WIFI7 carries one USB Type-C at USB 3.2 Gen 2, two USB 3.2 Gen 2 Type-A, five USB 3.2 Gen 1 and four USB 2.0 ports. For the case, there is a front USB Type-C header at USB 3.2 Gen 2×2 (20 Gb/s), which only reaches that speed if your case’s front port supports it. Audio is Realtek with two analogue jacks and an optical S/PDIF output; GIGABYTE lists the ALC1220 codec on Rev. 1.1 boards.

Display Outputs and Build Features

The rear DisplayPort 1.4 supports up to 3840×2160 at 144 Hz with HDR, and an internal HDMI port (1920×1080 at 30 Hz) is meant for a small status screen mounted inside the case. Both outputs only work with a CPU that has integrated graphics; with a Ryzen processor without graphics, you need a graphics card.

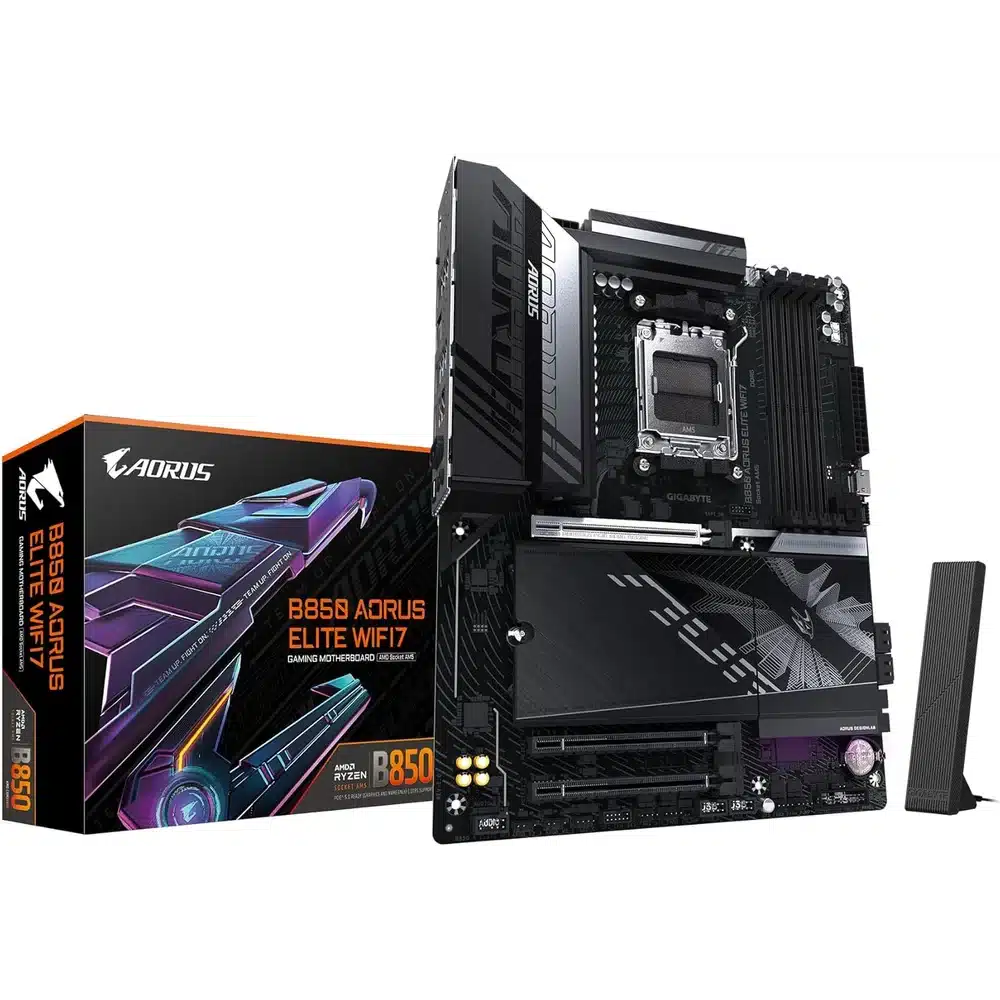

For building, the B850 AORUS ELITE WIFI7 has M.2 EZ-Latch Plus for screwless SSD installation, M.2 EZ-Latch Click for the heatsinks, PCIe EZ-Latch Plus for releasing the graphics card, and a Q-Flash Plus button to update the BIOS without a CPU or memory installed. In the box: one antenna, two SATA cables, a G Connector, an M.2 thermal pad and M.2 rubber pads.

Who This Is Not For

Ryzen 8000 APU owners who want PCIe 5.0: those chips run the graphics slot and the first M.2 at PCIe 4.0, and at reduced lane counts. Anyone planning two graphics cards, since the extra slots are PCIe 3.0 x1. Buyers who need USB4 or Thunderbolt, which GIGABYTE does not list for this board. Windows 10 users, since the B850 AORUS ELITE WIFI7 is listed for Windows 11 64-bit only. And if you want a white build, this is the black board; the ICE model is a separate product.

Ordering in the UAE

The B850 AORUS ELITE WIFI7 is delivered across the UAE in up to 3 business days, free on orders from AED 300. It carries a 1-year warranty from Totot, with returns within 14 days for defective or non-matching items and 48 hours to report any shipping damage.

Technical Specifications

• Model: GIGABYTE B850 AORUS ELITE WIFI7 (Rev. 1.x)
• Socket: AMD AM5; Ryzen 9000, 8000 and 7000 series
• Chipset: AMD B850
• Form factor: ATX, 30.5 x 24.4 cm
• Memory: 4 x DDR5, dual channel, up to 256 GB (64 GB per module); 4400 to 8200 MT/s listed, speeds above the CPU’s rated memory speed are overclocking (EXPO/XMP)
• VRM: 14+2+2 Twin Digital (7+7 parallel), 60A DrMOS
• PCIEX16 (CPU): PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8 (Ryzen 8000 Phoenix 1); PCIe 4.0 x4 (Phoenix 2)
• Other PCIe slots: 2 x full-length slots from the chipset, PCIe 3.0 x1
• M2A_CPU: PCIe 5.0 x4 (Ryzen 9000/7000); PCIe 4.0 x4 (Ryzen 8000)
• M2B_CPU: PCIe 4.0 x4 (x2 with Ryzen 8000 Phoenix 2)
• M2C_SB: PCIe 4.0 x4 (chipset)
• SATA: 4 x SATA 6Gb/s
• RAID: NVMe RAID 0/1/10 (RAID 5 with Ryzen 9000 only); SATA RAID 0/1/10
• LAN: Realtek 2.5GbE
• Wireless: Wi-Fi 7 (Realtek RTL8922AE), Bluetooth 5.4, 2.4/5/6 GHz
• Display outputs: DisplayPort 1.4 (up to 3840×2160 at 144 Hz); internal HDMI 1.4 (1920×1080 at 30 Hz); CPU with integrated graphics required
• Rear USB: 1 x USB-C 3.2 Gen 2, 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 4 x USB 2.0
• Front USB-C header: USB 3.2 Gen 2×2 (20 Gb/s)
• Audio: Realtek codec (ALC1220 on Rev. 1.1), 2 analogue jacks, optical S/PDIF out
• BIOS tools: Q-Flash, Q-Flash Plus button
• OS support: Windows 11 64-bit
• In the box: Antenna, 2 SATA cables, G Connector, M.2 thermal pad, M.2 rubber pads
• Warranty: 1-year warranty from Totot

Specifications are from GIGABYTE’s B850 AORUS ELITE WIFI7 (Rev. 1.x) specification page, its product page and the GIGABYTE user manual. Full details are published on the GIGABYTE B850 AORUS ELITE WIFI7 specifications.

FAQ

Does the B850 AORUS ELITE WIFI7 support Ryzen 9000?

Yes. GIGABYTE lists Ryzen 9000, 8000 and 7000 processors on socket AM5.

Is the graphics slot PCIe 5.0?

Yes, with a Ryzen 9000 or 7000 CPU it runs PCIe 5.0 x16. With Ryzen 8000 APUs it drops to PCIe 4.0 x8 or x4.

How many M.2 slots does it have?

3. One PCIe 5.0 x4 from the CPU, one PCIe 4.0 x4 from the CPU and one PCIe 4.0 x4 from the chipset.

Will my DDR5 kit run at 8000 MT/s?

Not guaranteed. 8200 MT/s is the top of GIGABYTE’s overclocking list; results depend on your CPU and kit, so check the QVL.

Can I use the rear DisplayPort without a graphics card?

Yes, but only with a Ryzen CPU that has integrated graphics.

Does the B850 AORUS ELITE WIFI7 have Bluetooth?

Yes. The Wi-Fi 7 module includes Bluetooth 5.4.
