GIGABYTE X870 Gaming X WIFI7 Motherboard – AM5 ATX, 16+2+2 Phases, DDR5 up to 8200 (OC), PCIe 5.0 x16, 3x M.2, 2x USB4, Wi-Fi 7, 2.5GbE

The GIGABYTE X870 Gaming X WIFI7 is an ATX motherboard on AMD’s X870 chipset for Socket AM5 and Ryzen 9000, 8000 and 7000 processors. Its headline is power delivery: a 16+2+2 phase digital VRM on 60A DrMOS in an 8+8 parallel design, which gives a 12- or 16-core Ryzen more headroom than the 14-phase Eagle in the same family. Around that sit four DDR5 slots for up to 256 GB, a PCIe 5.0 x16 graphics slot, three M.2 slots including one PCIe 5.0, two USB4 Type-C ports at up to 40Gb/s, Wi-Fi 7 with Bluetooth 5.4 and Realtek 2.5GbE.

A 16+2+2 VRM for high core count Ryzen chips

The GIGABYTE X870 Gaming X WIFI7 feeds the processor through 16 VCORE phases, 2 SOC phases and 2 MISC phases, using 60A DrMOS stages arranged as an 8+8 parallel design. GIGABYTE pairs that with a 6-layer, 2X copper PCB and a fully covered MOSFET heatsink with a 5 W/mK thermal pad, claimed at four times the surface area of a standard design. The practical benefit is lower VRM temperature under long all-core loads such as rendering, compiling or video export on a Ryzen 9. For a gaming build with an eight-core chip the extra phases matter less, which is why GIGABYTE also sells the 14-phase X870 Eagle WIFI7 with the same connectivity.

Memory: four DDR5 slots and OC speeds up to 8200

There are four DDR5 DIMM slots in dual channel, holding up to 256 GB with 64 GB per module, and the board reads AMD EXPO and XMP profiles. GIGABYTE lists 4400, 4800 and 5200 MT/s as standard and 5600 to 8200 MT/s as overclocking speeds, with the result depending on the processor, the kit and the number of modules. A two-module 6000 MT/s EXPO kit is the usual choice for AM5. GIGABYTE adds AORUS AI SNATCH, a BIOS tool for one-click memory boost and overclock tuning; its performance claims of up to 9% are GIGABYTE’s own figures under specific test conditions.

PCIe 5.0 graphics, three M.2 slots and how lanes are shared

PCIEX16 on the GIGABYTE X870 Gaming X WIFI7 runs PCIe 5.0 x16 with Ryzen 9000 and 7000, PCIe 4.0 x8 with Ryzen 8000 Phoenix 1 and PCIe 4.0 x4 with Phoenix 2. The two lower full-length slots run PCIe 3.0 x1 from the chipset. M2A_CPU is the PCIe 5.0 x4 slot for a Gen5 SSD with Ryzen 9000/7000 (PCIe 4.0 with Ryzen 8000). M2B_SB runs PCIe 4.0 x4 but drops to x2 if a PCIe SSD sits in M2C_SB, which is PCIe 4.0 x2. All three slots sit under M.2 Thermal Guard Ext. heatsinks. Four SATA 6Gb/s ports are included, with NVMe RAID 0/1/5/10 (RAID 5 needs Ryzen 9000).

USB4 and the back panel

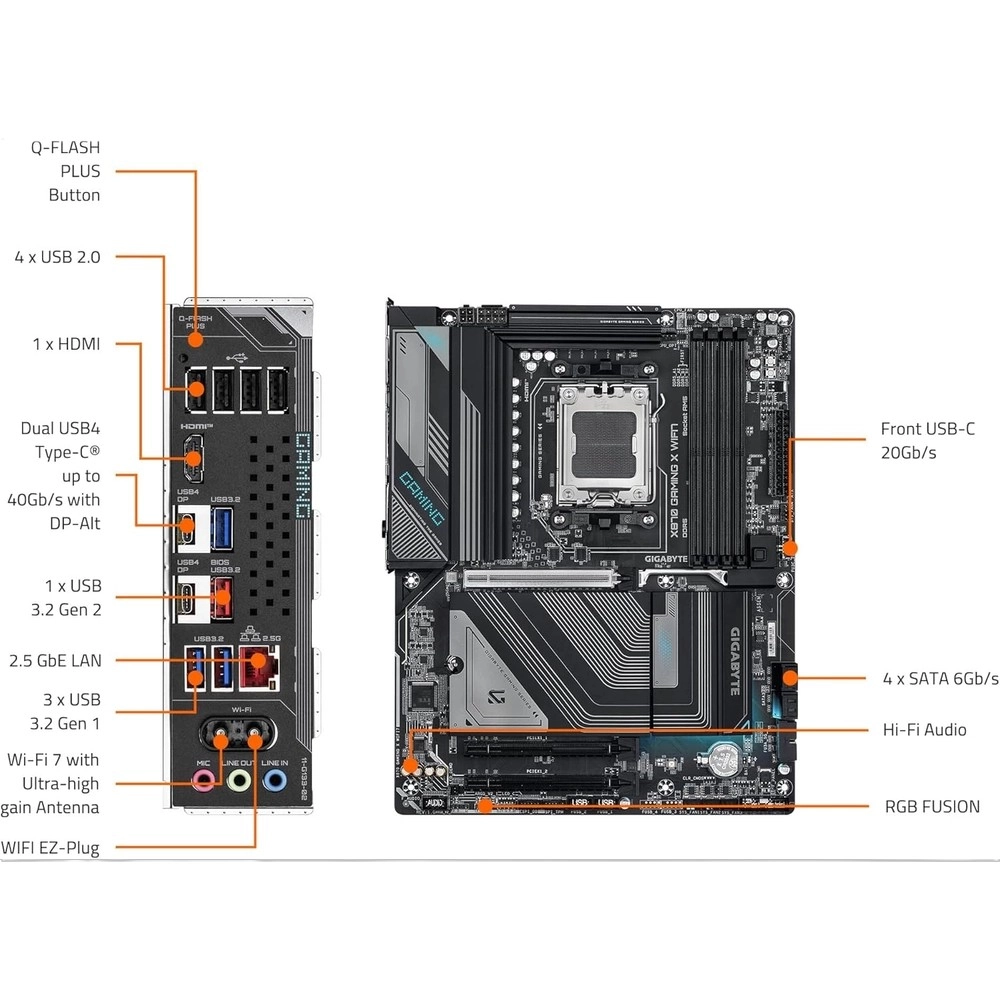

Two rear USB4 Type-C ports deliver up to 40Gb/s and carry DisplayPort 1.4 up to 3840 x 2160 at 240 Hz when the processor has integrated graphics; the HDMI 2.1 port handles up to 4096 x 2160 at 60 Hz. Also on the back: one red USB 3.2 Gen 2 Type-A, three USB 3.2 Gen 1, four USB 2.0, the 2.5GbE RJ-45, three audio jacks, two antenna connectors and the Q-Flash Plus button. Internally there is a USB 3.2 Gen 2×2 Type-C header for a 20Gb/s front port, one USB 3.2 Gen 1 header and two USB 2.0 headers.

Wi-Fi 7 with two possible modules

Wireless on the GIGABYTE X870 Gaming X WIFI7 is Wi-Fi 7 across 2.4, 5 and 6 GHz with 160 MHz channels, plus Bluetooth 5.4. The module depends on PCB revision: MediaTek MT7925 on revision 1.0 and Realtek RTL8922AE on revision 1.1. GIGABYTE notes that Wi-Fi 7 features need a current Windows 11 build with no Windows 10 driver, and that 6 GHz availability follows local regulations. The included antenna connects through WIFI EZ-Plug and GIGABYTE quotes up to 5dBi gain in directional mode and up to 4dBi omnidirectional. Wired networking is a Realtek 2.5GbE controller.

Fans, lighting and build helpers

Smart Fan 6 controls six fan headers (CPU, CPU/pump and four system), each rated up to 24W, with fan stop and a seven-point curve. Lighting runs through three addressable RGB Gen2 headers and one RGB header. For assembly, PCIe EZ-Latch Plus releases the graphics card with one click, M.2 EZ-Latch Plus and EZ-Latch Click remove the screws from SSDs and heatsinks, and Q-Flash Plus updates the BIOS from a USB drive with no CPU, memory or graphics card installed. EZ-Debug Zone adds debug LEDs and a multi-key for RGB, direct-to-BIOS and safe mode.

Who This Is Not For

The GIGABYTE X870 Gaming X WIFI7 is more board than a mid-range eight-core gaming build strictly needs; the X870 Eagle WIFI7 keeps the same ports with 14+2+2 phases. Its two extra x16-size slots run PCIe 3.0 x1, so it is not for dual graphics cards or fast add-in cards. Only one M.2 slot is PCIe 5.0, and using M2C_SB cuts M2B_SB to x2. The GIGABYTE X870 Gaming X WIFI7 supports Windows 11 64-bit only, has four SATA ports, and does not accept AM4 processors.

Ordering from Totot

Totot sells the GIGABYTE X870 Gaming X WIFI7 brand-new and genuine in its sealed box, backed by a 1-year warranty from Totot. We deliver UAE-wide in up to 3 business days, and delivery is free on orders from AED 300, with cash on delivery or instalments via Tabby and Tamara. Items that arrive defective or not as ordered can be returned within 14 days, and any shipping damage should be reported within 48 hours of delivery. Browse more in our Motherboards range, or see the official GIGABYTE X870 GAMING X WIFI7 specification page.

GIGABYTE X870 Gaming X WIFI7 Specifications

• Model: GIGABYTE X870 GAMING X WIFI7 (rev. 1.x)
• Socket: AMD Socket AM5
• Processor support: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD X870
• VRM: 16+2+2 phase digital VRM, 60A DrMOS, 8+8 parallel design
• PCB: 6-layer, 2X copper
• Memory: 4 x DDR5 DIMM, dual channel, up to 256 GB (64 GB per DIMM)
• Memory speeds: 4400 / 4800 / 5200 MT/s standard; 5600 to 8200 MT/s overclocking
• PCIEX16: PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8 / x4 (Ryzen 8000 Phoenix 1 / 2)
• Other slots: 2 x PCIe 3.0 x1 (x16 size, chipset)
• M2A_CPU: PCIe 5.0 x4/x2 (Ryzen 9000/7000); PCIe 4.0 x4/x2 (Ryzen 8000)
• M2B_SB: PCIe 4.0 x4/x2; x2 when M2C_SB holds a PCIe SSD
• M2C_SB: PCIe 4.0 x2
• SATA: 4 x SATA 6Gb/s
• Rear USB: 2 x USB4 Type-C (up to 40Gb/s), 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0
• Internal USB: 1 x USB 3.2 Gen 2×2 Type-C header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
• Video outputs: 2 x USB4 (DisplayPort 1.4, up to 3840×2160@240Hz), 1 x HDMI 2.1 (up to 4096×2160@60Hz); depends on CPU
• LAN: Realtek 2.5GbE
• Wireless: Wi-Fi 7 (MediaTek MT7925 rev. 1.0 / Realtek RTL8922AE rev. 1.1), Bluetooth 5.4
• Audio: Realtek HD audio codec, up to 7.1 channel
• Fan headers: 6, up to 24W each
• RGB headers: 3 x ARGB Gen2, 1 x RGB
• Operating system: Windows 11 64-bit
• Form factor: ATX, 30.5 x 24.4 cm
• Warranty: 1-year warranty from Totot

GIGABYTE X870 Gaming X WIFI7 FAQ

What is the VRM on the GIGABYTE X870 Gaming X WIFI7?

16+2+2 phases with 60A DrMOS in an 8+8 parallel design, according to GIGABYTE.

Is it better than the X870 Eagle WIFI7?

Yes for sustained heavy loads, because the GIGABYTE X870 Gaming X WIFI7 has 2 more VCORE phases. Ports, slots and wireless are the same on both boards.

Does it support a PCIe 5.0 SSD?

Yes. On the GIGABYTE X870 Gaming X WIFI7, M2A_CPU runs PCIe 5.0 x4 with Ryzen 9000 or 7000; with Ryzen 8000 it runs PCIe 4.0.

Can I use the HDMI port without a graphics card?

Yes, if the processor has integrated Radeon graphics, as Ryzen 9000 and 7000 desktop chips do. The HDMI and USB4 ports then output video; GIGABYTE notes support depends on the CPU.

Does it support Windows 10?

No. GIGABYTE lists Windows 11 64-bit only.

Is it genuine?

Yes. We sell the genuine GIGABYTE X870 Gaming X WIFI7, brand-new in its sealed retail box.

How long does delivery take?

No more than 3 business days to any emirate, free from AED 300; the live fee for your order appears at checkout.
