GIGABYTE X870 Eagle WIFI7 Motherboard – AM5 ATX, 14+2+2 Phases, DDR5 up to 8200 (OC), PCIe 5.0 x16, 3x M.2, 2x USB4, Wi-Fi 7, 2.5GbE

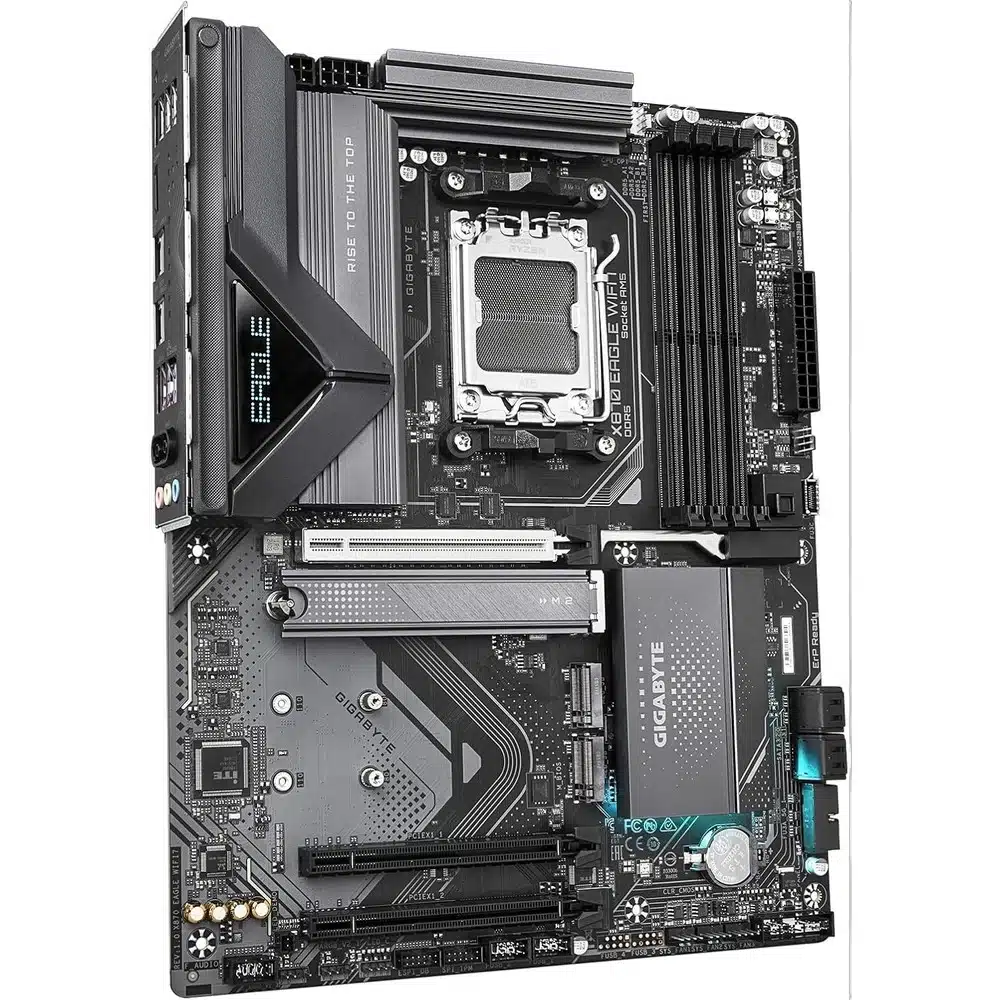

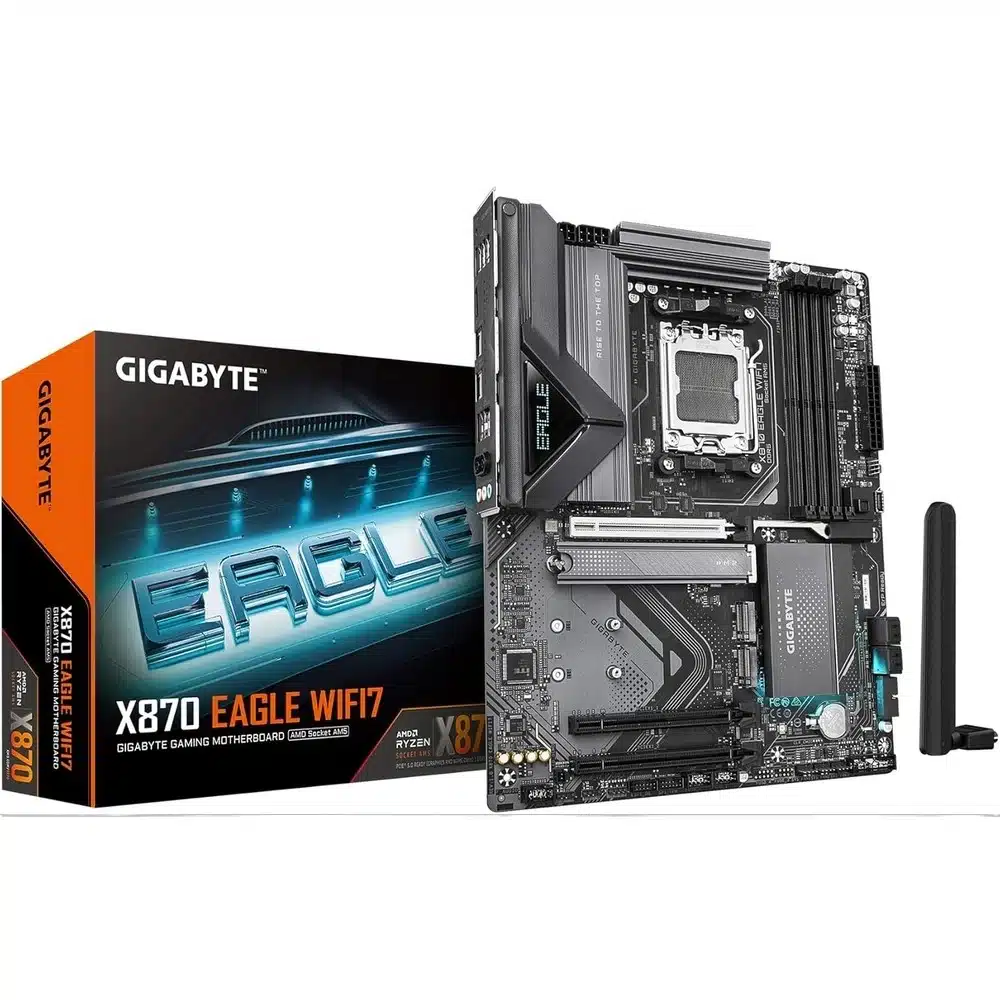

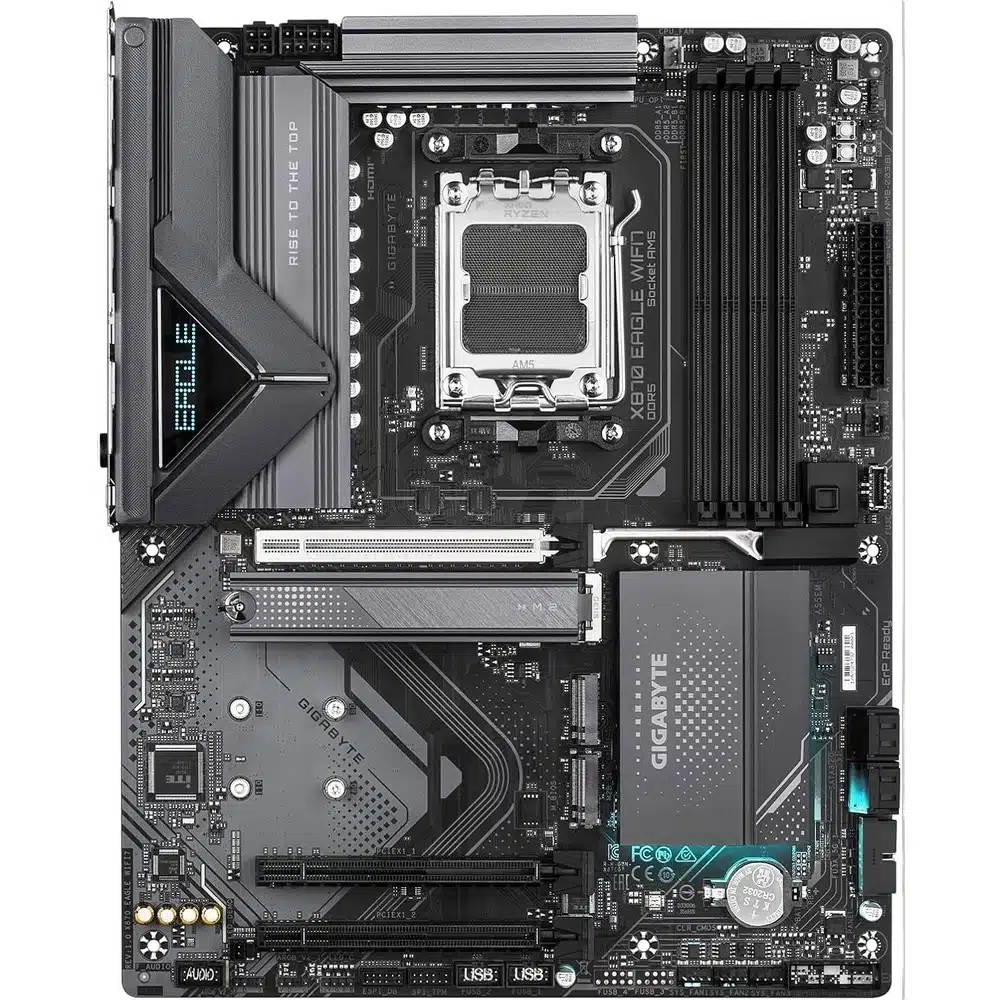

The GIGABYTE X870 Eagle WIFI7 is an ATX motherboard on AMD’s X870 chipset for Socket AM5, supporting Ryzen 9000, 8000 and 7000 processors. GIGABYTE builds it around a 14+2+2 phase digital VRM with 60A DrMOS, four DDR5 slots for up to 256 GB, a PCIe 5.0 x16 graphics slot, three M.2 slots (one of them PCIe 5.0), two rear USB4 Type-C ports at up to 40Gb/s, Wi-Fi 7 and Realtek 2.5GbE. It sits below the X870 Gaming X WIFI7 in GIGABYTE’s range and keeps the same connectivity, so the main thing you give up is two VRM phases.

Eagle or Gaming X: where the GIGABYTE X870 Eagle WIFI7 differs

On paper the two boards share almost everything: the same X870 chipset, the same PCIe 5.0 x16 slot, the same three M.2 slots, two USB4 ports, Realtek 2.5GbE, Wi-Fi 7 with Bluetooth 5.4, four SATA ports and the same 30.5 x 24.4 cm ATX size. The difference is the power stage. The GIGABYTE X870 Eagle WIFI7 uses 14+2+2 phases in a 7+7 parallel design, while the Gaming X uses 16+2+2 in 8+8, both on 60A DrMOS. For an eight-core gaming processor such as a Ryzen 7 the Eagle has plenty of headroom. A 16-core Ryzen 9 held at full load for hours, or serious manual overclocking, is where the larger VRM of the Gaming X becomes the better choice.

DDR5 support and what the OC speeds mean

The board has four DDR5 DIMM slots in dual channel, up to 256 GB in total with 64 GB per module, and reads both AMD EXPO and Intel XMP profiles. GIGABYTE lists 4400, 4800 and 5200 MT/s as standard speeds and everything from 5600 up to 8200 MT/s as overclocking. Reaching those higher figures depends on the processor’s memory controller, the kit and how many slots are filled, and GIGABYTE points buyers to its Memory Support List. On the GIGABYTE X870 Eagle WIFI7 a two-module 6000 MT/s EXPO kit is the sensible starting point for most AM5 builds; four modules generally run at lower speeds than two. AORUS AI SNATCH in the BIOS offers one-click memory tuning.

Expansion slots and M.2 storage lanes

The main PCIEX16 slot runs PCIe 5.0 x16 with Ryzen 9000 and 7000. With Ryzen 8000 it drops to PCIe 4.0 x8 on Phoenix 1 chips and PCIe 4.0 x4 on Phoenix 2 chips. The two lower slots are full length but run PCIe 3.0 x1 from the chipset, fine for a sound card or capture card, not for a second graphics card. Storage starts with M2A_CPU, which runs PCIe 5.0 x4 with Ryzen 9000/7000. M2B_SB is PCIe 4.0 x4, but GIGABYTE notes it drops to x2 when an SSD is installed in M2C_SB, and M2C_SB itself is PCIe 4.0 x2. Put the fastest drive on the CPU slot. Four SATA 6Gb/s ports complete the storage on the GIGABYTE X870 Eagle WIFI7.

USB4, display outputs and the rear panel

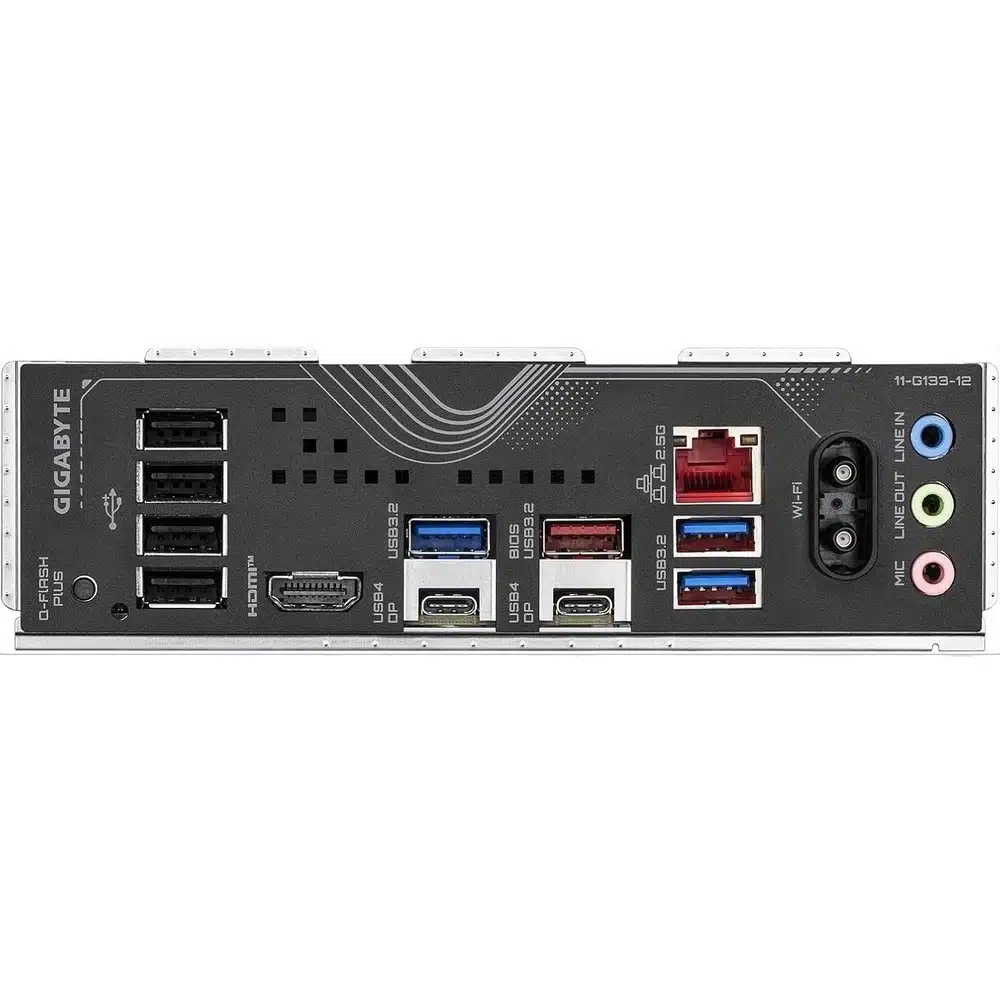

The two rear USB4 Type-C ports reach up to 40Gb/s and carry DisplayPort for a processor with integrated graphics, up to 3840 x 2160 at 240 Hz. The HDMI 2.1 port supports up to 4096 x 2160 at 60 Hz. GIGABYTE notes that video output depends on the processor. The rest of the back panel has one red USB 3.2 Gen 2 Type-A, three USB 3.2 Gen 1, four USB 2.0, the RJ-45 port, three audio jacks, the antenna connectors and a Q-Flash Plus button. Inside, a USB 3.2 Gen 2×2 Type-C header feeds a 20Gb/s front port on cases that have one, plus one USB 3.2 Gen 1 header and two USB 2.0 headers.

Wi-Fi 7, LAN and audio

Wired networking on the GIGABYTE X870 Eagle WIFI7 is Realtek 2.5GbE. Wireless is Wi-Fi 7 on 2.4, 5 and 6 GHz with 160 MHz channels and Bluetooth 5.4, and GIGABYTE lists two possible modules: MediaTek MT7925 on PCB revision 1.0 and Realtek RTL8922AE on revision 1.1. GIGABYTE states that Wi-Fi 7 features need a current Windows 11 release, that there is no Windows 10 driver, and that 6 GHz availability depends on local regulations. The antennas attach through WIFI EZ-Plug, a single combined connector. Audio is a Realtek HD codec with 2, 4, 5.1 and 7.1 channel output; GIGABYTE does not name the exact codec model on the specification page.

Cooling, power connectors and build features

GIGABYTE fits a fully covered one-piece MOSFET heatsink with multi-cut airflow channels and a 5 W/mK thermal pad, on a 6-layer PCB with 2X copper. CPU power comes through 8-pin and 4-pin ATX12V connectors. There are six fan headers (CPU, CPU/pump and four system), each rated up to 24W, plus three addressable RGB Gen2 headers and one RGB header. Assembly is helped by PCIe EZ-Latch Plus for one-click graphics card release, M.2 EZ-Latch Plus and EZ-Latch Click for screwless SSDs and heatsinks, and Q-Flash Plus, which updates the BIOS with no processor, memory or graphics card installed. EZ-Debug Zone adds debug LEDs.

Who This Is Not For

The GIGABYTE X870 Eagle WIFI7 is not the right board for a second graphics card or a fast add-in card, because the two extra slots are PCIe 3.0 x1. It is not ideal for three fast NVMe drives at full speed, since M2C_SB runs at x2 and pulls M2B_SB down to x2. Builders running a 16-core Ryzen 9 at sustained full load or overclocking hard should look at the 16+2+2 Gaming X instead of the GIGABYTE X870 Eagle WIFI7. The GIGABYTE X870 Eagle WIFI7 supports Windows 11 64-bit only, has four SATA ports, and fits AM5 processors only, not AM4.

Ordering from Totot

Totot sells the GIGABYTE X870 Eagle WIFI7 brand-new and genuine in its sealed box, backed by a 1-year warranty from Totot. It reaches any emirate within 3 business days at most, with free delivery on orders from AED 300, with cash on delivery or instalments via Tabby and Tamara. Items that arrive defective or not as ordered can be returned within 14 days, and any shipping damage should be reported within 48 hours of delivery. Browse more in our Motherboards range, or see the official GIGABYTE X870 EAGLE WIFI7 specification page.

GIGABYTE X870 Eagle WIFI7 Specifications

• Model: GIGABYTE X870 EAGLE WIFI7 (rev. 1.x)
• Socket: AMD Socket AM5
• Processor support: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD X870
• VRM: 14+2+2 phase digital VRM, 60A DrMOS, 7+7 parallel design
• Memory: 4 x DDR5 DIMM, dual channel, up to 256 GB (64 GB per DIMM), non-ECC unbuffered
• Memory speeds: 4400 / 4800 / 5200 MT/s standard; 5600 to 8200 MT/s overclocking
• Memory profiles: AMD EXPO, XMP
• PCIEX16: PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8 (Ryzen 8000 Phoenix 1); PCIe 4.0 x4 (Phoenix 2)
• Other slots: 2 x PCIe 3.0 x1 (x16 size, chipset)
• M2A_CPU: PCIe 5.0 x4/x2 (Ryzen 9000/7000); PCIe 4.0 x4/x2 (Ryzen 8000)
• M2B_SB: PCIe 4.0 x4/x2; runs x2 when M2C_SB holds a PCIe SSD
• M2C_SB: PCIe 4.0 x2
• SATA: 4 x SATA 6Gb/s
• RAID: NVMe RAID 0/1/5/10 (RAID 5 with Ryzen 9000 only); SATA RAID 0/1/10
• Rear USB: 2 x USB4 Type-C (up to 40Gb/s), 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0
• Internal USB: 1 x USB 3.2 Gen 2×2 Type-C header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
• Video outputs: 2 x USB4 Type-C with DisplayPort 1.4 up to 3840×2160@240Hz; 1 x HDMI 2.1 up to 4096×2160@60Hz (depends on CPU)
• LAN: Realtek 2.5GbE
• Wireless: Wi-Fi 7 (MediaTek MT7925 on PCB rev. 1.0, Realtek RTL8922AE on rev. 1.1), 2.4/5/6 GHz, 160 MHz, Bluetooth 5.4
• Audio: Realtek HD audio codec, 2/4/5.1/7.1 channel
• Fan headers: 6 (1 CPU, 1 CPU/pump, 4 system), up to 24W each
• RGB headers: 3 x ARGB Gen2, 1 x RGB
• Power connectors: 24-pin ATX, 8-pin + 4-pin ATX12V
• BIOS: 256 Mbit flash, AMI UEFI, Q-Flash Plus
• Operating system: Windows 11 64-bit
• Form factor: ATX, 30.5 x 24.4 cm
• Warranty: 1-year warranty from Totot

GIGABYTE X870 Eagle WIFI7 FAQ

Does the GIGABYTE X870 Eagle WIFI7 support Ryzen 9000?

Yes. GIGABYTE lists Ryzen 9000, 8000 and 7000 support, and Q-Flash Plus can update the BIOS without a processor installed if a newer chip needs it.

How many M.2 slots does it have?

3. M2A_CPU is PCIe 5.0 x4 with Ryzen 9000/7000, M2B_SB is PCIe 4.0 x4 (x2 when M2C_SB is used) and M2C_SB is PCIe 4.0 x2.

How fast are the USB4 ports?

Up to 40Gb/s each. There are 2 on the rear panel, and both carry DisplayPort video up to 3840 x 2160 at 240 Hz with a processor that has graphics.

Does it work with Windows 10?

No. GIGABYTE lists Windows 11 64-bit only, and states there is no Windows 10 driver for the Wi-Fi 7 module.

What is the maximum memory?

256 GB across 4 DDR5 slots, 64 GB per module. Speeds above 5200 MT/s are listed by GIGABYTE as overclocking.

Can I use the lower long slots for a second graphics card?

No. Both run PCIe 3.0 x1 from the chipset, which suits sound, capture or network cards.

Is it genuine?

Yes. We sell the genuine GIGABYTE X870 Eagle WIFI7, brand-new in its sealed retail box.

How long does delivery take?

3 business days at most across the UAE. Orders from AED 300 ship free, and the checkout page shows any current fee for your order.
