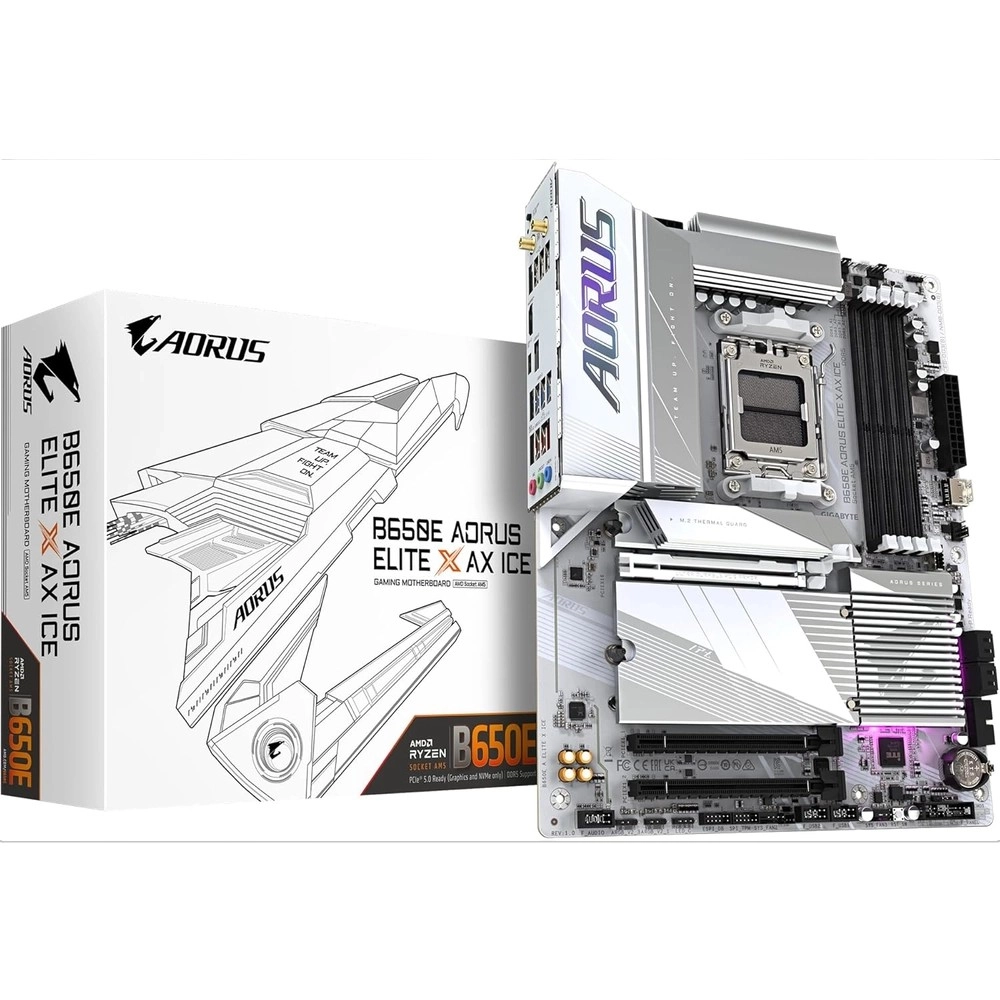

GIGABYTE B650E AORUS ELITE X AX ICE AM5 ATX Motherboard – DDR5, PCIe 5.0, 12+2+2 VRM, Wi-Fi 6E, 2.5GbE

The Gigabyte B650E AORUS ELITE X AX ICE Motherboard is a high-performance ATX motherboard designed for AMD Ryzen™ 7000 and Ryzen™ 8000 Series processors using the AM5 socket. Built for gamers, creators, and advanced PC users, it delivers strong power efficiency, next-generation connectivity, and a clean ICE white design suitable for premium builds.

Power Delivery and VRM Design

This motherboard features a Digital Twin 12+2+2 phases VRM solution, providing stable and efficient power delivery to modern AMD Ryzen processors.
The configuration includes:

• 12 phases for CPU Vcore

• 2 phases for SoC

• 2 phases for memory

This design ensures reliable voltage regulation, efficient thermal performance, and consistent stability during gaming, multitasking, and heavy workloads. Combined with VRM Thermal Armor Advanced, the board maintains safe operating temperatures even under sustained CPU load.

Memory Support

The B650E AORUS ELITE X AX ICE supports Dual Channel DDR5 memory with four DIMM slots, offering compatibility with both AMD EXPO™ and Intel® XMP memory profiles. This allows users to achieve higher memory speeds, improved bandwidth, and optimized system performance for demanding applications.

Expansion and Graphics Support

The motherboard is equipped with a PCIe 5.0 x16 UD Slot X, reinforced with 10× strength, ensuring durability and stable support for modern high-end graphics cards. This slot delivers next-generation bandwidth for future GPUs and long-term upgrade flexibility.

Storage Capabilities

It offers three M.2 slots for ultra-fast NVMe storage:

• 1× PCIe 5.0 M.2 slot

• 2× PCIe 4.0 M.2 slots

All M.2 slots are protected by M.2 Thermal Guard XL, helping to reduce SSD temperatures and prevent performance throttling.
EZ-Latch Click and EZ-Latch Plus provide screwless installation and quick-release functionality for easy upgrades.

Connectivity and Networking

The motherboard includes 2.5GbE LAN for fast wired networking and Wi-Fi 6E with an ultra-high gain antenna for stable, low-latency wireless connections.
Extended connectivity options include HDMI, rear USB-C® with up to 40Gb/s, and front USB-C® with up to 20Gb/s, ensuring compatibility with modern peripherals and high-speed devices.

Thermal and Build Design

Designed for efficient heat management, the board features VRM Thermal Armor Advanced, large heatsinks, and optimized PCB layout to maintain system stability under continuous workloads.

Audio and User Experience

High-quality 8-channel HD audio with audiophile-grade capacitors delivers clear and immersive sound.
The UC BIOS provides a user-centered interface with quick access features, simplifying system tuning and configuration.
Sensor Panel Link allows easy integration of internal display panels without additional adapters.

Ideal Platform for Modern AM5 Builds

The Gigabyte B650E AORUS ELITE X AX ICE Motherboard offers a balanced combination of power stability, next-gen features, and user-friendly design. With its 12+2+2 VRM, DDR5 support, PCIe 5.0 graphics and storage, Wi-Fi 6E, and premium thermal solutions, it is a reliable foundation for high-performance AMD AM5 systems.
