The JBL Bar 500 MK2 is a 5.1-channel soundbar and wireless subwoofer package that JBL rates at 750W total speaker power, measured as maximum output at 1% THD. That is a peak figure, not a continuous one. The RMS rating JBL publishes for the same system, at the same 1% THD, is 375W. Both numbers come from JBL. Knowing which is which is the difference between a realistic expectation and a disappointed one, so this page keeps the two apart everywhere they appear.
Table of Contents
- What the JBL Bar 500 MK2 Actually Is
- JBL Bar 500 MK2 Power: 750W Peak Against 375W RMS
- The Dolby Atmos Height Layer Here Is Virtual
- PureVoice 2.0, Room Calibration and SmartDetails
- Connections, Wi-Fi and What the USB Port Does
- Who This Is Not For
- Ordering the JBL Bar 500 MK2 from Totot
- Technical Specifications
- FAQ
What the JBL Bar 500 MK2 Actually Is

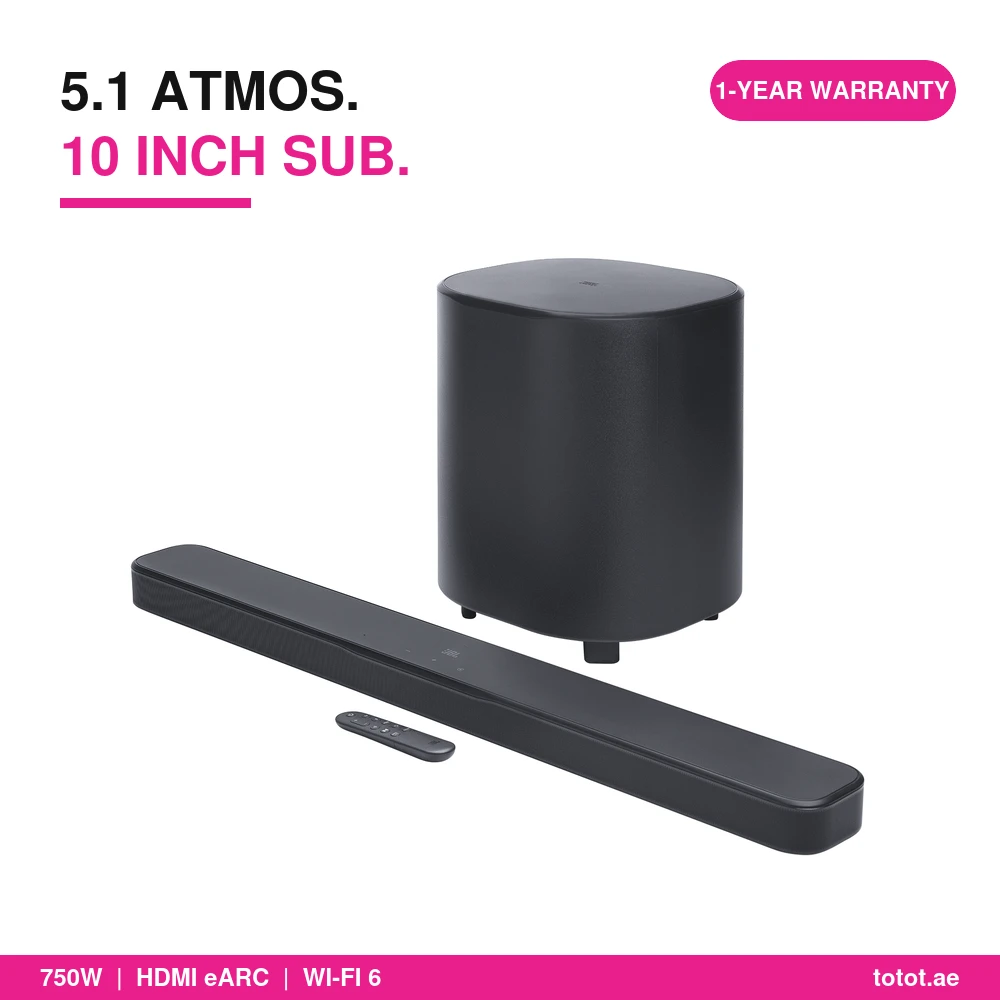

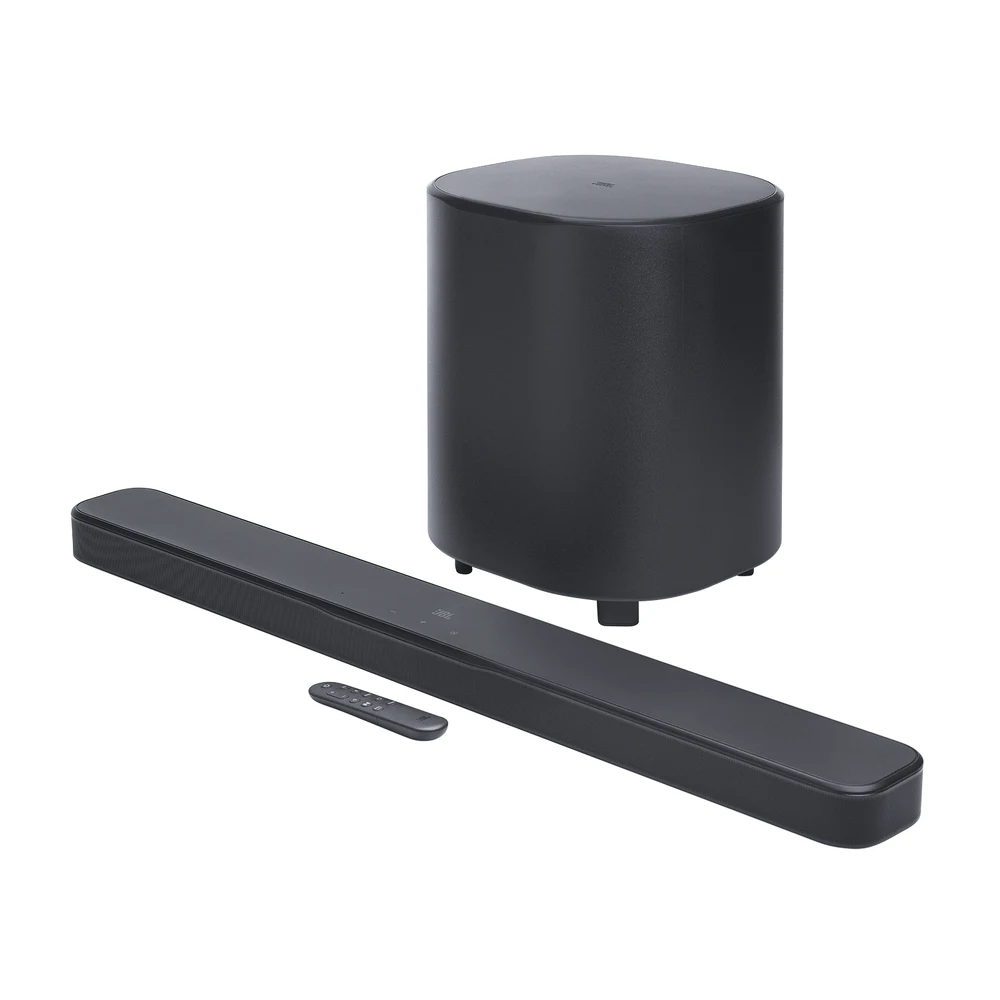

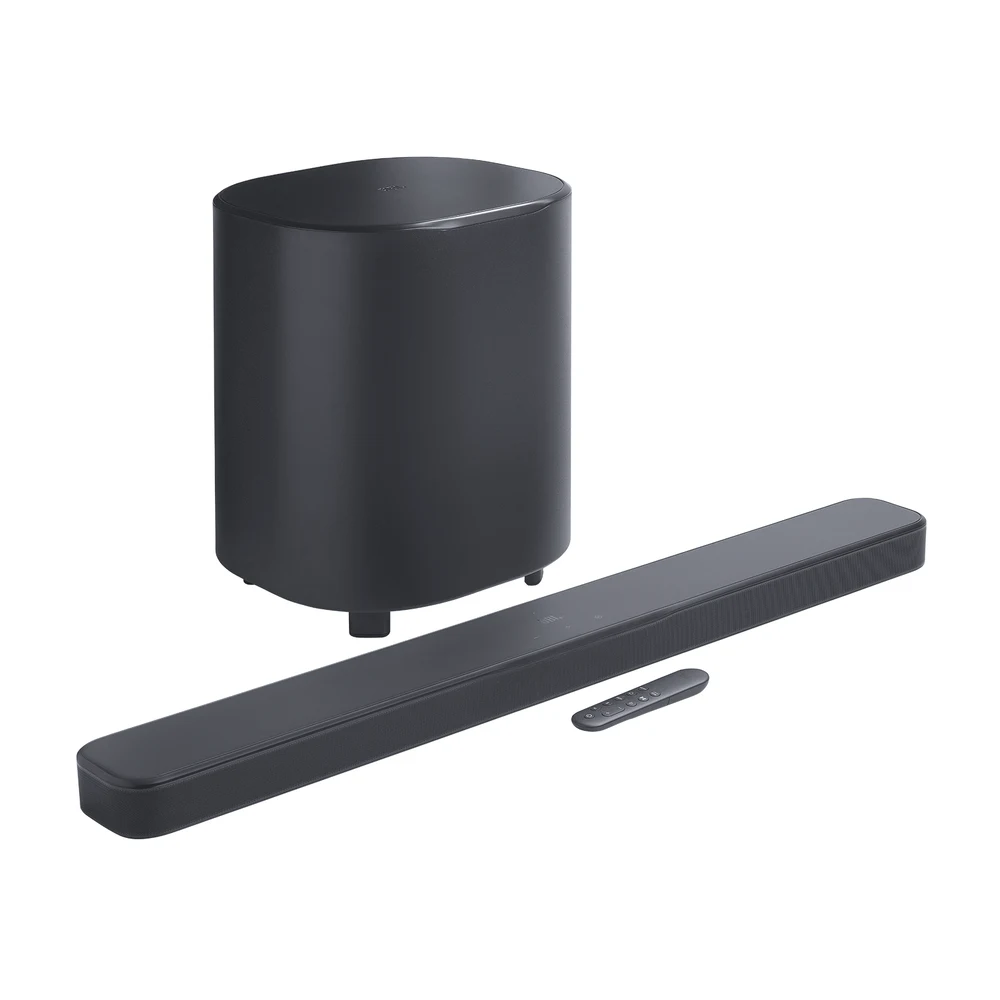

The JBL Bar 500 MK2 package is two boxes. The bar measures 940 x 50.5 x 104 mm and weighs 2.9 kg. The subwoofer is a separate 325 x 400 x 325 mm cabinet weighing 8.1 kg, and it connects wirelessly, so it can sit beside a cabinet or behind a sofa rather than next to the television. At 50.5 mm tall the JBL Bar 500 MK2 is low enough to sit in front of most screens without covering the bottom of the panel, but measure your own stand before you assume it clears.
Inside the bar JBL fits five 42 x 80 mm racetrack drivers and four 0.75-inch (20 mm) tweeters. The subwoofer carries one 10-inch (260 mm) driver. System frequency response is quoted as 40 Hz to 20 kHz at -6 dB. The -6 dB qualifier matters: a -3 dB figure, which is the stricter way to measure the same speaker, would land higher than 40 Hz. JBL does not publish a -3 dB number.
JBL Bar 500 MK2 Power: 750W Peak Against 375W RMS
JBL publishes two power ratings for the JBL Bar 500 MK2 and they are not interchangeable. Total speaker power output is 750W maximum at 1% THD. The RMS rating, at that same 1% THD, is 375W. Peak describes a brief burst the amplifiers can deliver before distortion reaches one percent. RMS describes what the system sustains over time.
JBL also breaks the peak figure into its parts: 450W maximum from the soundbar and 300W maximum from the subwoofer, both at 1% THD. When you are judging whether this system will fill your room, the 375W RMS figure is the honest one to reason from. The 750W number is real, but it is headroom, and any listing that prints it without the word peak is quoting the more flattering of the two.
The Dolby Atmos Height Layer Here Is Virtual
The JBL Bar 500 MK2 decodes Dolby Atmos, and JBL’s own owner’s manual describes what comes out as virtual Dolby Atmos with height sound effects. There are no up-firing drivers in this bar. The full driver list is five racetrack drivers and four tweeters, all of them facing forward or out to the sides. The height layer is produced by processing rather than by bouncing sound off your ceiling.
What does the physical work is MultiBeam 3.0, JBL’s beam-steering technology, which aims sound at your side walls so part of it arrives from beside you instead of from straight ahead. JBL adds DTS Virtual:X on top for surround effects. Both are genuine features and both widen the soundstage noticeably. Neither is the same thing as a speaker actually placed above your head, and it is worth setting that expectation before the box arrives.
PureVoice 2.0, Room Calibration and SmartDetails
PureVoice 2.0 is the dialogue processing on the JBL Bar 500 MK2. JBL describes it as automatically raising and optimising dialogue based on ambient sound, rather than applying a fixed midrange boost the way a simple voice mode does. If you keep subtitles switched on for modern film mixes, this is the feature aimed squarely at you.
Calibration on the JBL Bar 500 MK2 is a button on the remote marked CALIBR. The bar plays test tones, listens to how they come back, and corrects for the reflections off your walls and furniture. JBL documents the procedure in the owner’s manual and it takes a couple of minutes. SmartDetails is a HARMAN technology JBL introduced across this generation of the Bar Series. Setup, firmware and streaming services all run through the JBL One app.
Connections, Wi-Fi and What the USB Port Does
The rear panel of the JBL Bar 500 MK2 carries one HDMI input, one HDMI output with eARC, an optical input, a USB port and the mains inlet. HDMI runs HDCP 2.3 and passes Dolby Vision and HDR10+ through untouched, so a 4K HDR console or streaming box can route its video through the bar without losing its HDR format on the way to the television.
Wireless covers Wi-Fi on 802.11 a/b/g/n/ac/ax across both 2.4 GHz and 5 GHz, plus Bluetooth 5.3 with the A2DP 1.3 and AVRCP 1.5 profiles. JBL lists AirPlay, Google Cast, Spotify Connect, Tidal Connect and Roon Ready for this model. One caution worth knowing before you buy: JBL’s owner’s manual limits USB MP3 playback to the US version, so treat the USB port on stock sold here as a service and software-update port.
Power supply is 100-240V AC at 50/60 Hz, which covers the 220-240V mains used in the UAE, and JBL rates standby consumption at under 2.0W. In the box you get the bar, the subwoofer, a remote with two AAA batteries, two power cords, a 1.2 m HDMI cable and a wall-mounting kit.
Who This Is Not For
If you want a real height layer, this is not the JBL Bar 500 MK2’s strength. The Atmos height effect is virtual, and a setup with up-firing modules or ceiling speakers will do something this system cannot. If you want detachable rear surround speakers, JBL puts those on the larger Bar models, not on this one.
If you need Alexa built into the JBL Bar 500 MK2 itself, JBL does not list Alexa support for this model, so you would be relying on a separate speaker. If you had planned to play music from a USB stick, the manual restricts that to the US version. And if your room is genuinely large, judge it by the 375W RMS rating rather than the 750W peak, because the peak is not what the system holds.
Ordering the JBL Bar 500 MK2 from Totot
Shipping is free on orders from 300 AED, so this soundbar ships to you free. Delivery takes up to 3 business days anywhere in the UAE.
Every JBL Bar 500 MK2 carries a 1-year warranty from Totot covering manufacturing defects. Returns are accepted within 14 days if the item is defective or does not match what was listed. If the box arrives damaged in transit, report it to us within 48 hours of delivery so we can act on the claim.
Technical Specifications
- Model: JBL Bar 500 MK2, black finish
- Channels: 5.1, with virtual Dolby Atmos and DTS Virtual:X
- Total power (peak): 750W maximum at 1% THD
- Total power (RMS): 375W at 1% THD
- Peak power split: Soundbar 450W, subwoofer 300W, both maximum at 1% THD
- Soundbar drivers: 5 x 42 x 80 mm racetrack drivers, 4 x 0.75-inch (20 mm) tweeters
- Subwoofer driver: 10-inch (260 mm), wireless
- Frequency response: 40 Hz – 20 kHz (-6 dB); JBL publishes no -3 dB figure
- Soundbar size and weight: 940 x 50.5 x 104 mm, 2.9 kg
- Subwoofer size and weight: 325 x 400 x 325 mm, 8.1 kg
- HDMI: 1 input, 1 output with eARC, HDCP 2.3, Dolby Vision and HDR10+ pass-through
- Other inputs: Optical, USB (MP3 playback is US version only, per JBL)
- Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, 2.4 GHz and 5 GHz
- Bluetooth: 5.3, profiles A2DP 1.3 and AVRCP 1.5
- Streaming: AirPlay, Google Cast, Spotify Connect, Tidal Connect, Roon Ready, JBL One app
- Power supply: 100-240V AC, 50/60 Hz; standby under 2.0W
- Maximum SPL: JBL does not publish a maximum SPL figure for this system
- Warranty: 1 year from Totot against manufacturing defects
Every figure on this page is taken from JBL’s own published spec sheet and owner’s manual for the Bar 500MK2. Full details are published on the official JBL Bar 500MK2 product page.
FAQ
Does the JBL Bar 500 MK2 really output 750 watts?
750W is JBL’s peak rating, measured as maximum total speaker power at 1% THD. The continuous RMS rating JBL publishes for the same system, at the same 1% THD, is 375W. Both are official numbers and they describe two different things.
Does the JBL Bar 500 MK2 have up-firing speakers for Dolby Atmos?
No. The driver list is five racetrack drivers and four tweeters, none of them up-firing, and JBL’s owner’s manual describes the result as virtual Dolby Atmos with height sound effects.
How low does the subwoofer actually go?
40 Hz is the bottom of JBL’s published range, quoted as 40 Hz to 20 kHz at -6 dB. JBL does not publish a -3 dB figure for this system, so there is no stricter number to compare against.
Will the JBL Bar 500 MK2 run on UAE mains power?
Yes. JBL rates the power supply at 100-240V AC, 50/60 Hz, which covers the 220-240V supply used across the UAE.
Can I play MP3 files from a USB stick?
No, not on this version. JBL’s owner’s manual limits USB MP3 playback to the US version of the Bar 500MK2, so the USB port here is for service and software updates.
Does the box include rear surround speakers?
No. JBL lists the contents as the soundbar, the wireless subwoofer, a remote with two AAA batteries, two power cords, a 1.2 m HDMI cable and a wall-mounting kit.
What warranty and returns apply?
1 year from Totot against manufacturing defects, plus a 14-day return window if the item is defective or does not match the listing. Shipping damage should be reported within 48 hours of delivery.
