GIGABYTE B650 EAGLE – AM5 ATX Motherboard, 12+2+2 Phases, PCIe 5.0 M.2, PCIe 4.0 x16, 3x M.2, DDR5 up to 8000 (OC), Gigabit LAN

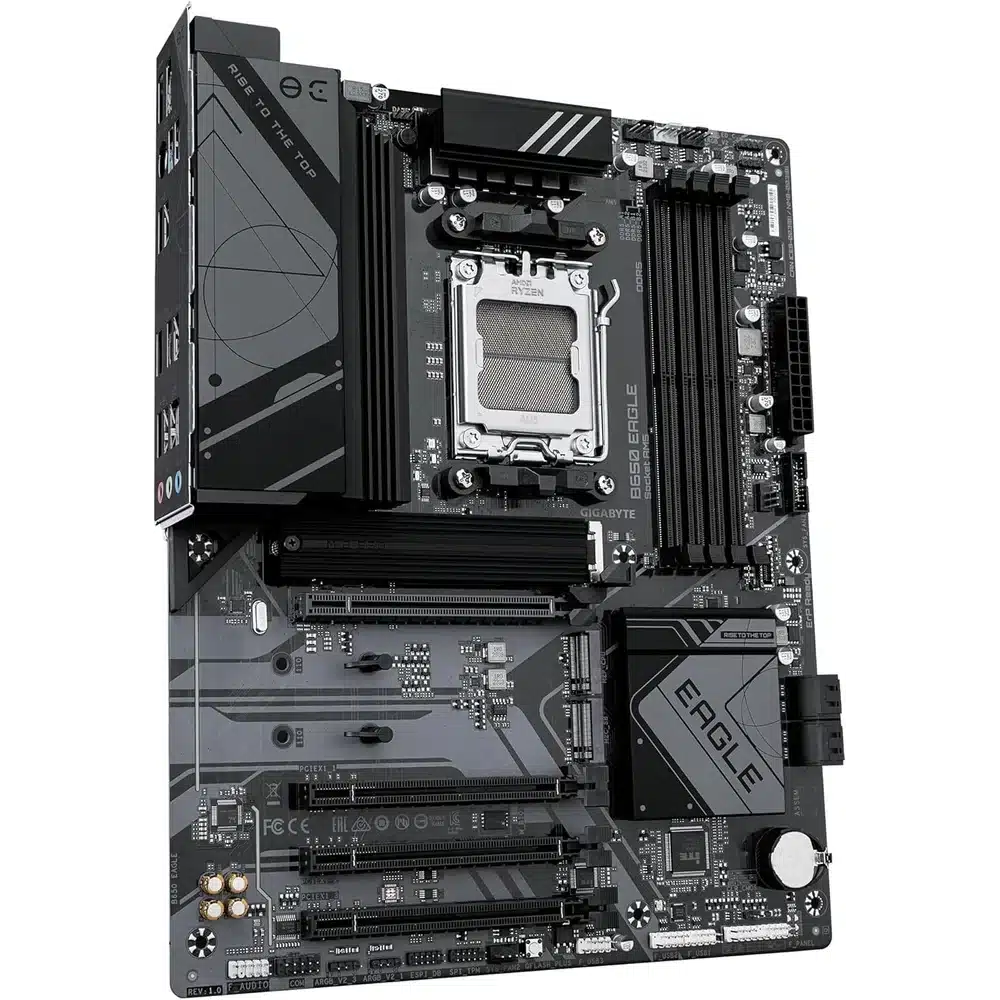

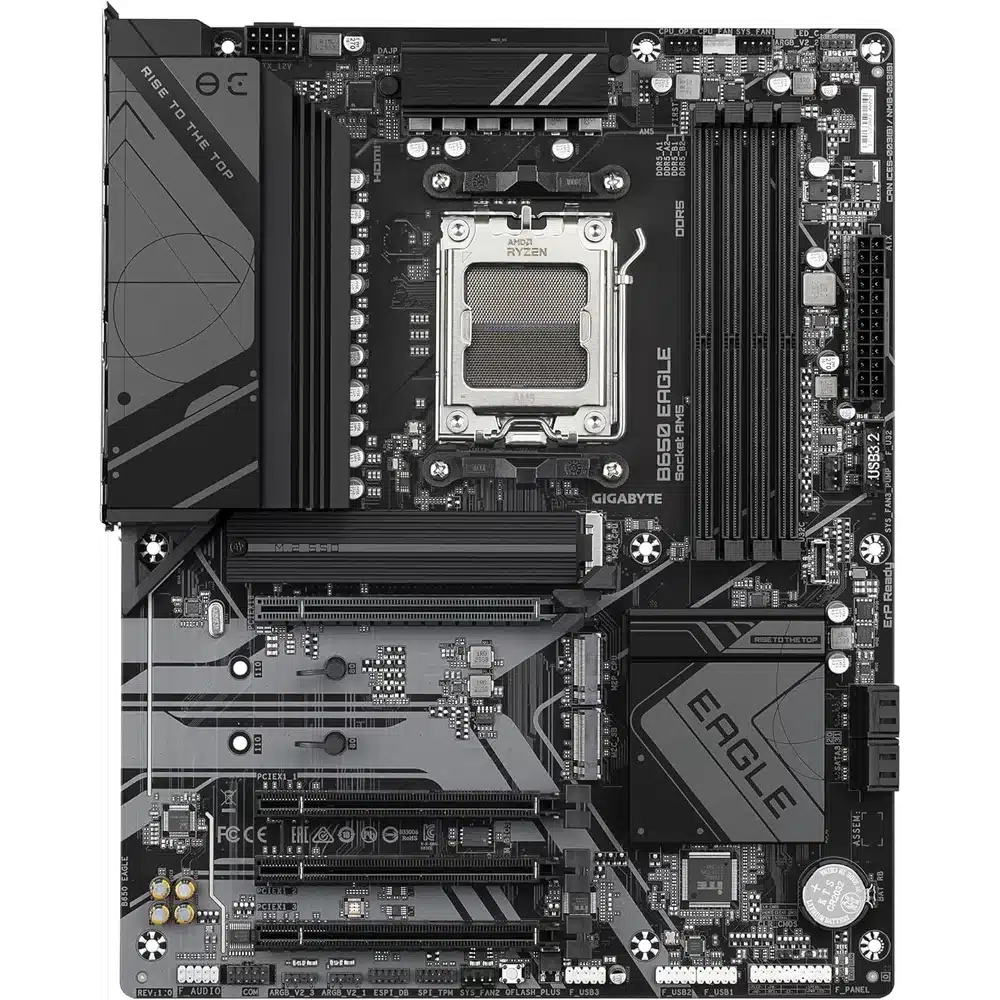

The GIGABYTE B650 EAGLE is an ATX motherboard for AMD Socket AM5 on the B650 chipset, supporting Ryzen 7000, 8000 and 9000 processors. It keeps the budget focused on the processor and storage: a 12+2+2 phase VRM, four DDR5 slots, three M.2 slots with one running PCIe 5.0, and a PCIe 4.0 x16 graphics slot. There is no Wi-Fi or Bluetooth module listed by GIGABYTE, and the wired port is gigabit Ethernet, so the GIGABYTE B650 EAGLE suits a desk PC connected to the router by cable.

What B650 means on this board

B650 is the AM5 chipset where PCIe 5.0 is guaranteed for storage but not for the graphics card. On the GIGABYTE B650 EAGLE the main slot runs PCIe 4.0 x16 with Ryzen 7000 and 9000 (x8 with Ryzen 8000 Phoenix 1, x4 with Phoenix 2). For current graphics cards PCIe 4.0 x16 is rarely a bottleneck, so this mainly matters if you plan to keep the board through several graphics card generations. The PCIe 5.0 link goes to the first M.2 slot instead, which is where a Gen5 SSD benefits most.

Slots and M.2 lanes

M2A_CPU runs PCIe 5.0 x4 with Ryzen 7000/9000 and PCIe 4.0 x4 with Ryzen 8000. M2P_CPU is a slower CPU-attached slot at PCIe 4.0 x2 with every supported processor, and M2C_SB runs PCIe 4.0 x4 from the chipset. So the second fast drive belongs in M2C_SB, not M2P_CPU. Besides the x16 slot there are three PCIe 3.0 x1 slots: two from the processor (unavailable with Ryzen 8000 Phoenix 2) and one from the chipset. Four SATA 6Gb/s ports are included, with RAID 0, 1 and 10 for NVMe and SATA. An M.2 Thermal Guard heatsink covers the main SSD.

DDR5 memory: standard and overclocked speeds

Four DDR5 slots in dual channel take up to 256 GB, 64 GB per module, with AMD EXPO and XMP. GIGABYTE lists 4800 and 5200 MT/s as standard speeds and 5600 up to 8000 MT/s as overclocking, which depends on the processor, the kit and the number of modules. GIGABYTE’s DDR5 Auto Booster can raise native DDR5-4800 memory to 5000 under heavy load. For a typical build on the GIGABYTE B650 EAGLE, a two-module 6000 MT/s EXPO kit is the practical choice.

Power delivery and cooling

GIGABYTE lists a 12+2+2 phase digital PWM design with low RDS(on) MOSFETs, on a 6-layer, mid-loss PCB described as PCIe 5.0 ready. It does not publish a DrMOS current rating for this board. Cooling is a fully covered one-piece MOSFET heatsink, claimed at up to three times the surface of a traditional design, with a 5 W/mK thermal pad and an integrated I/O shield. CPU power comes through a 24-pin ATX and a single 8-pin ATX12V connector. Smart Fan 6 controls five fan headers, each rated up to 24W with over-current protection and fan stop.

Rear panel, video and audio

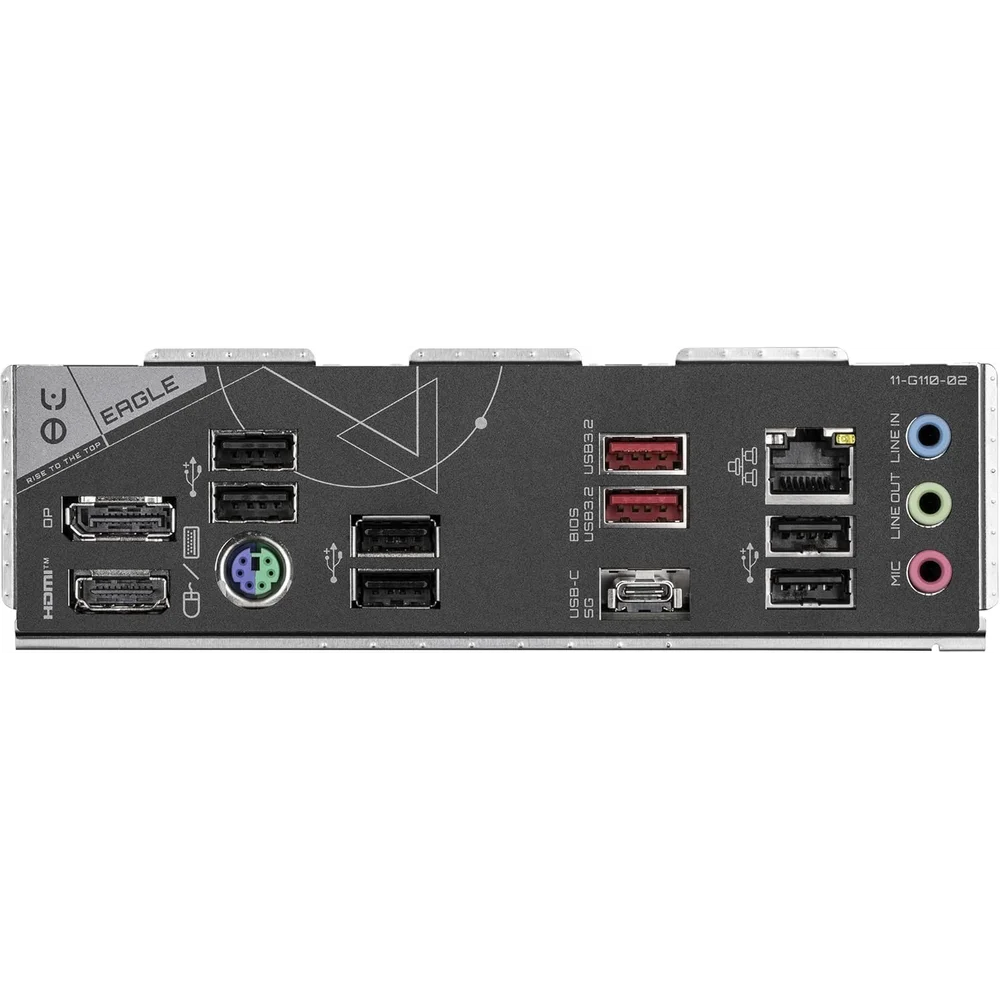

The rear panel of the GIGABYTE B650 EAGLE has two red USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 1 Type-C, six USB 2.0 ports, a PS/2 port, RJ-45 for the Realtek gigabit LAN and three audio jacks. For processors with integrated graphics there is a DisplayPort 1.4 output up to 3840 x 2160 at 144 Hz and an HDMI 2.1 output up to 4096 x 2160 at 60 Hz. Internally there is a USB 3.2 Gen 1 Type-C header for the front panel, a USB 3.2 Gen 1 header, USB 2.0 headers and a serial port header. Audio is a Realtek HD codec with up to 7.1 channels and Audio Noise Guard.

Who This Is Not For

The GIGABYTE B650 EAGLE is not for anyone who needs Wi-Fi or Bluetooth: GIGABYTE lists no wireless module, so you would need an add-in card or USB adapter. Its LAN is 1 Gbps, not 2.5GbE. The graphics slot is PCIe 4.0, not 5.0, there is no USB4, and the front USB-C header is only USB 3.2 Gen 1. M2P_CPU runs at PCIe 4.0 x2, slower than the other two M.2 slots.

Ordering from Totot

Totot sells the GIGABYTE B650 EAGLE brand-new and genuine in its sealed box, backed by a 1-year warranty from Totot. Delivered across the UAE in up to 3 business days, free on orders from AED 300, with cash on delivery or instalments via Tabby and Tamara. Items that arrive defective or not as ordered can be returned within 14 days, and any shipping damage should be reported within 48 hours of delivery. Browse more in our Motherboards range, or see the official GIGABYTE B650 EAGLE specification page.

GIGABYTE B650 EAGLE Specifications

• Model: GIGABYTE B650 EAGLE (rev. 1.0)
• Socket: AMD Socket AM5
• Processor support: AMD Ryzen 7000, 8000 and 9000 Series
• Chipset: AMD B650
• VRM: 12+2+2 phase digital PWM, low RDS(on) MOSFETs
• Memory: 4 x DDR5 DIMM, dual channel, up to 256 GB (64 GB per DIMM)
• Memory speeds: 4800 / 5200 MT/s standard; 5600 to 8000 MT/s overclocking
• PCIEX16: PCIe 4.0 x16 (Ryzen 7000/9000); x8 / x4 (Ryzen 8000 Phoenix 1 / 2)
• PCIe x1 slots: 2 x PCIe 3.0 x1 from CPU (not available with Ryzen 8000 Phoenix 2), 1 x PCIe 3.0 x1 from chipset
• M2A_CPU: PCIe 5.0 x4/x2 (Ryzen 7000/9000); PCIe 4.0 x4/x2 (Ryzen 8000)
• M2P_CPU: PCIe 4.0 x2
• M2C_SB: PCIe 4.0 x4/x2 (chipset)
• SATA: 4 x SATA 6Gb/s, RAID 0/1/10
• Video outputs: 1 x DisplayPort 1.4 (up to 3840×2160@144Hz), 1 x HDMI 2.1 (up to 4096×2160@60Hz); depends on CPU
• Rear USB: 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-C, 6 x USB 2.0
• Internal USB: 1 x USB 3.2 Gen 1 Type-C header, 1 x USB 3.2 Gen 1 header, USB 2.0 headers
• LAN: Realtek gigabit Ethernet (1 Gbps)
• Wireless: No Wi-Fi or Bluetooth module listed by GIGABYTE
• Audio: Realtek HD audio codec, up to 7.1 channel
• Fan headers: 5, up to 24W each
• RGB headers: 3 x ARGB Gen2, 1 x RGB
• Power connectors: 24-pin ATX, 8-pin ATX12V
• Operating system: Windows 11 / Windows 10, 64-bit
• Form factor: ATX, 30.5 x 24.4 cm
• Warranty: 1-year warranty from Totot

GIGABYTE B650 EAGLE FAQ

Does the GIGABYTE B650 EAGLE have Wi-Fi?

No. GIGABYTE lists no Wi-Fi or Bluetooth module for the B650 EAGLE; the wireless version is sold separately as the B650 EAGLE AX.

Is the graphics slot PCIe 5.0?

No. It runs PCIe 4.0 x16 with Ryzen 7000 and 9000. PCIe 5.0 is on the first M.2 slot.

How many M.2 slots does the GIGABYTE B650 EAGLE have?

3: M2A_CPU at PCIe 5.0 x4, M2P_CPU at PCIe 4.0 x2 and M2C_SB at PCIe 4.0 x4.

Does it support Ryzen 9000?

Yes. GIGABYTE lists Ryzen 7000, 8000 and 9000 support, and Q-Flash Plus updates the BIOS without a processor installed.

What LAN speed does it have?

1 Gbps, from a Realtek gigabit Ethernet controller.

Is it genuine?

Yes. We sell the genuine GIGABYTE B650 EAGLE, brand-new in its sealed retail box.

How long does delivery take?

Up to 3 business days anywhere in the UAE, free on orders from AED 300; any current delivery fee for your order is shown at checkout.
