Logitech Tap IP 952-000085 Graphite – 10.1-inch PoE Touch Controller for Teams and Zoom Rooms

The Logitech Tap IP 952-000085 in Graphite is a 10.1-inch touch controller for meeting rooms. It connects over a single network cable using Power over Ethernet, so a room gets a permanent one-touch join panel without running a separate power drop or a USB cable back to a room PC.

10.1-inch Touch Display

The Logitech Tap IP 952-000085 uses a 10.1-inch IPS LCD running at 1280 x 800 with LED backlighting, finished with an oleophobic coating that keeps fingerprints from building up on a panel that gets touched all day. Touch is capacitive with 10-point multi-touch, so the calendar, dial pad and in-call controls respond the way people expect from a tablet rather than the laggy resistive panels older room systems used.

Single-Cable PoE Deployment

Tap IP is powered and connected over one Ethernet run using Power over Ethernet, IEEE 802.3af Type 1, Class 3. That single cable is the whole install: no power brick at the table, no long active USB extension, and no separate cable channel to cut into a boardroom table. For a multi-room rollout this is the practical difference between a quick, tidy deployment and a day of cable management per room.

Supported Meeting Platforms

The controller is certified for Microsoft Teams Rooms on Android, Zoom Rooms, RingCentral Rooms and Tencent Meeting Rooms. Meeting rooms show the day schedule on the panel and join with one tap, so nobody spends the first three minutes of a meeting hunting for a link.

Mounting and Placement

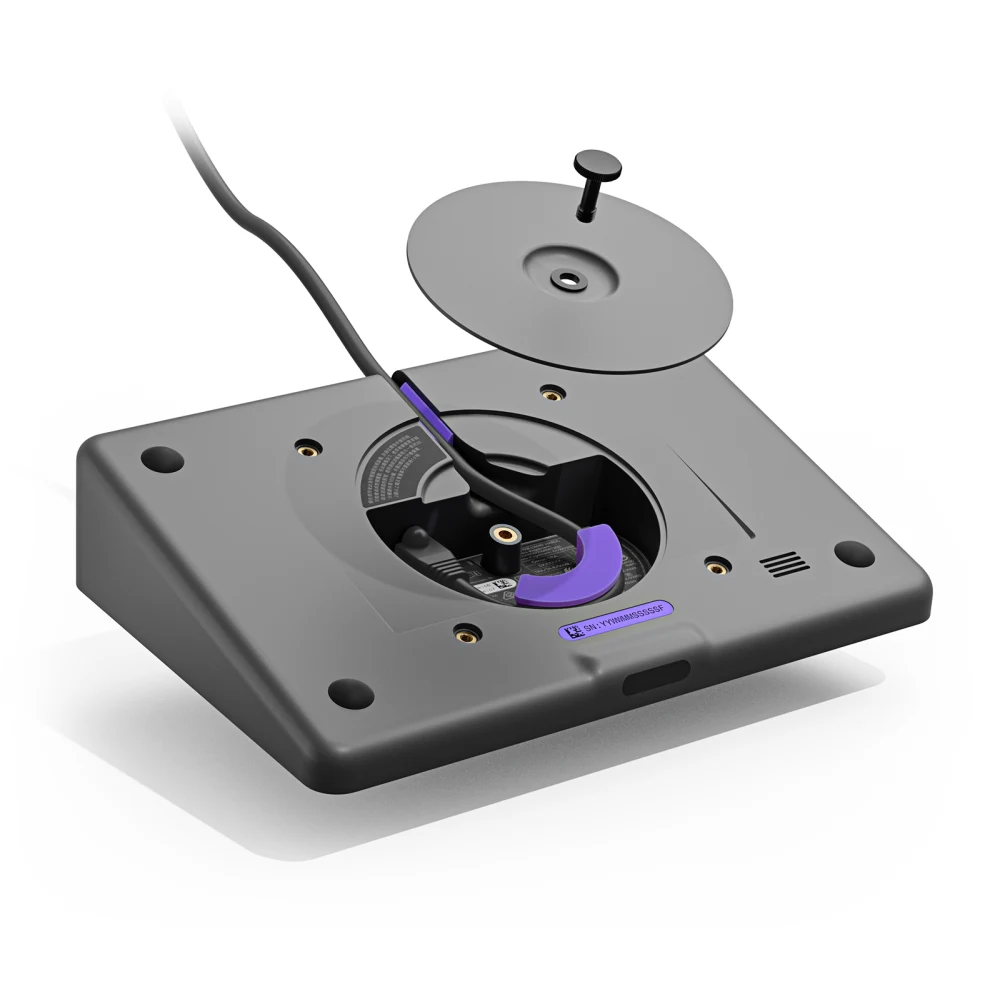

Tap IP uses a standard 100mm x 100mm VESA FDMI mounting pattern and sits flat on the mounting surface at a 0° position angle, which makes it straightforward to fix to a table, a wall plate or a riser mount depending on how the room is laid out. Because mounting is standards-based rather than proprietary, existing brackets and third-party mounts generally work.

Sensors, Audio and Security

Integrated speakers, a motion sensor, an accelerometer and an ambient light sensor let the panel wake as someone approaches and adjust its brightness to the room. On the security side the device uses AES-128 full disk encryption, which matters when a controller sits in an unattended room and holds cached calendar data. Alongside Ethernet it also carries 802.11a/b/g/n/ac Wi-Fi and Bluetooth 5.0.

Pairing It With a Room System

Tap IP is the control surface, not the camera or the audio system — it is designed to be paired with a room appliance such as the Logitech Rally Bar Mini for small rooms, or a larger Rally Bar for medium and large spaces. Together they form a complete certified room system: the bar handles video and audio, the panel handles scheduling and in-call control.

In the Box

Each unit ships with the Tap IP touch controller and documentation. Mounts and the room appliance are ordered separately depending on the room design.

Logitech Tap IP 952-000085: Technical Specifications

• Model: Logitech Tap IP, part number 952-000085, Graphite
• Display: 10.1-inch IPS LCD, 1280 x 800, LED backlight
• Touch: Capacitive, 10-point multi-touch, oleophobic coating
• Power: Power over Ethernet, IEEE 802.3af Type 1, Class 3
• Network: 10/100 Mbps Ethernet, 802.11a/b/g/n/ac Wi-Fi, Bluetooth 5.0
• Sensors: Motion sensor, accelerometer, ambient light sensor
• Audio: Integrated speakers
• Security: AES-128 full disk encryption
• Mounting: 100mm x 100mm VESA FDMI, 0° position angle
• Platforms: Microsoft Teams Rooms on Android, Zoom Rooms, RingCentral Rooms, Tencent Meeting Rooms
• Device dimensions: 246.2 x 171.3 x 56.1 mm
• Shipping weight: 1.326 kg
• Box dimensions: 35 x 25 x 9 cm
• Warranty: 1-year warranty from Totot

FAQ – Logitech Tap IP 952-000085

Does Tap IP need a power adapter?

No — it is powered over the network cable using PoE 802.3af, so one Ethernet run handles both power and data.

Is it a complete video conferencing system on its own?

No. Tap IP is the touch controller. It pairs with a room appliance such as the Rally Bar Mini, which provides the camera, microphones and speakers.

Which platforms does it support?

Microsoft Teams Rooms on Android, Zoom Rooms, RingCentral Rooms and Tencent Meeting Rooms.

How fast is delivery in the UAE?

Totot ships nationwide via Aramex for a fixed AED 10, with cash on delivery, Tabby and Tamara available at checkout.

Order the Logitech Tap IP 952-000085 from Totot

The Logitech Tap IP 952-000085 ships across the UAE with fixed 10 AED Aramex delivery, cash on delivery and Tabby or Tamara instalments, backed by a 1-year warranty from Totot. Browse more in our Video Conferencing range and the full Logitech line-up, or see the official Logitech Tap IP page for the full datasheet.
