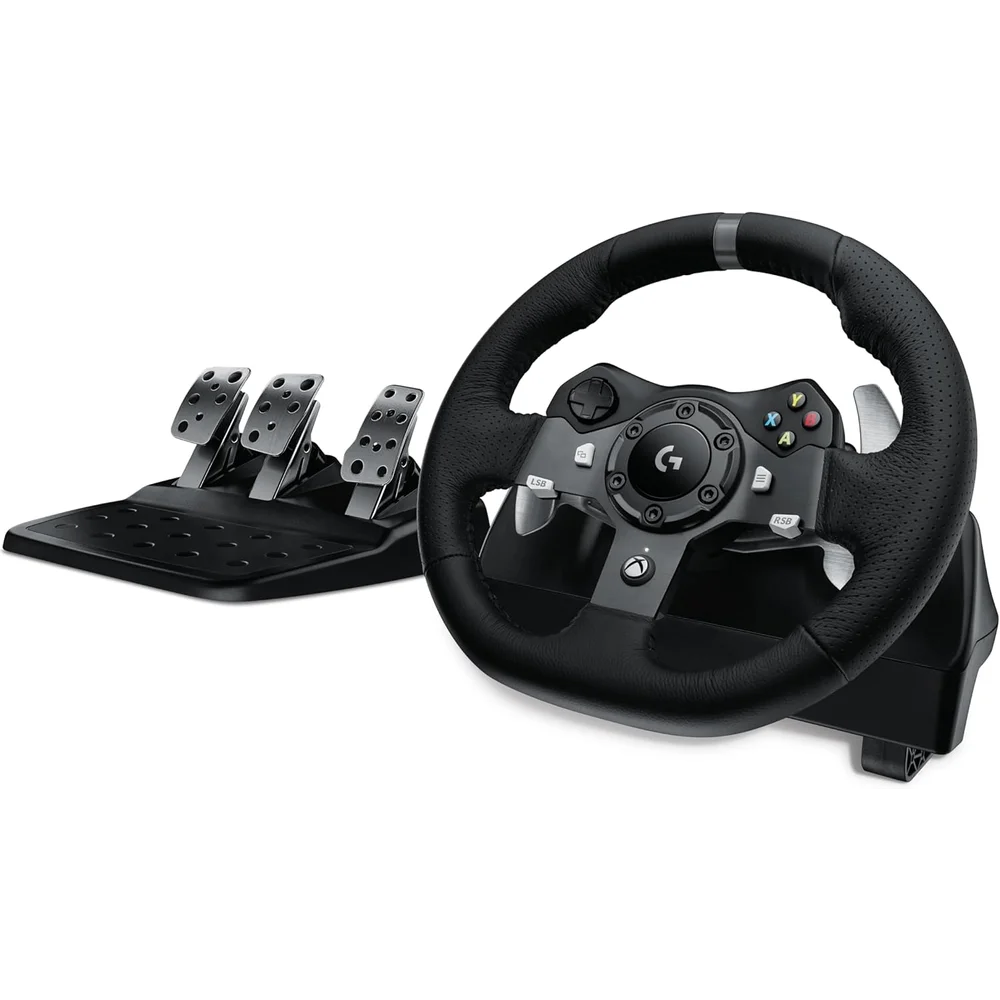

The Logitech G920 Driving Force is a force-feedback steering wheel with a three-pedal floor unit, built for Xbox Series X|S, Xbox One and Windows PC. It is the Xbox member of Logitech’s Driving Force family; the PlayStation version is a different product, the G29, so check which console you own before you order. In the box you get the wheel base with its leather rim and steel paddles, plus throttle, brake and clutch pedals.
Table of Contents
Logitech G920 Is the Xbox and PC Version
Logitech sells the Driving Force wheel in two platform versions. The G29 works with PS5, PS4, PS3 and PC. The Logitech G920 works with Xbox Series X|S, Xbox One and PC. The two are not interchangeable: a G920 will not drive a PlayStation, and a G29 will not drive an Xbox. On PC either one works, so PC-only racers can simply choose the one that suits them.
Logitech’s support specifications list Windows 10 or 11, a free USB port and 150 MB of disk space for the G HUB software on PC. macOS is not in that list, so Mac users should not count on support. On Xbox, the wheel connects by its USB cable and works in racing games that support wheels.
Force Feedback in the Logitech G920: Dual Motors and Helical Gears
Two motors drive the force feedback, and they act on the wheel through helical gears, which Logitech says are modelled on the gears used in car transmissions for smooth, quiet steering. An anti-backlash system keeps the wheel and pedals tight so the play between gear teeth does not blur small corrections. Logitech markets the set as a 2.3 Nm Racing System.
Rotation reaches 900 degrees lock to lock, close to a road car’s steering, which matters in sims where the game sets a realistic range. The Logitech G920 is a geared wheel rather than a direct-drive base, so it suits players moving up from a controller who want real resistance through corners and kerbs without the cost and desk strength a high-torque base demands.

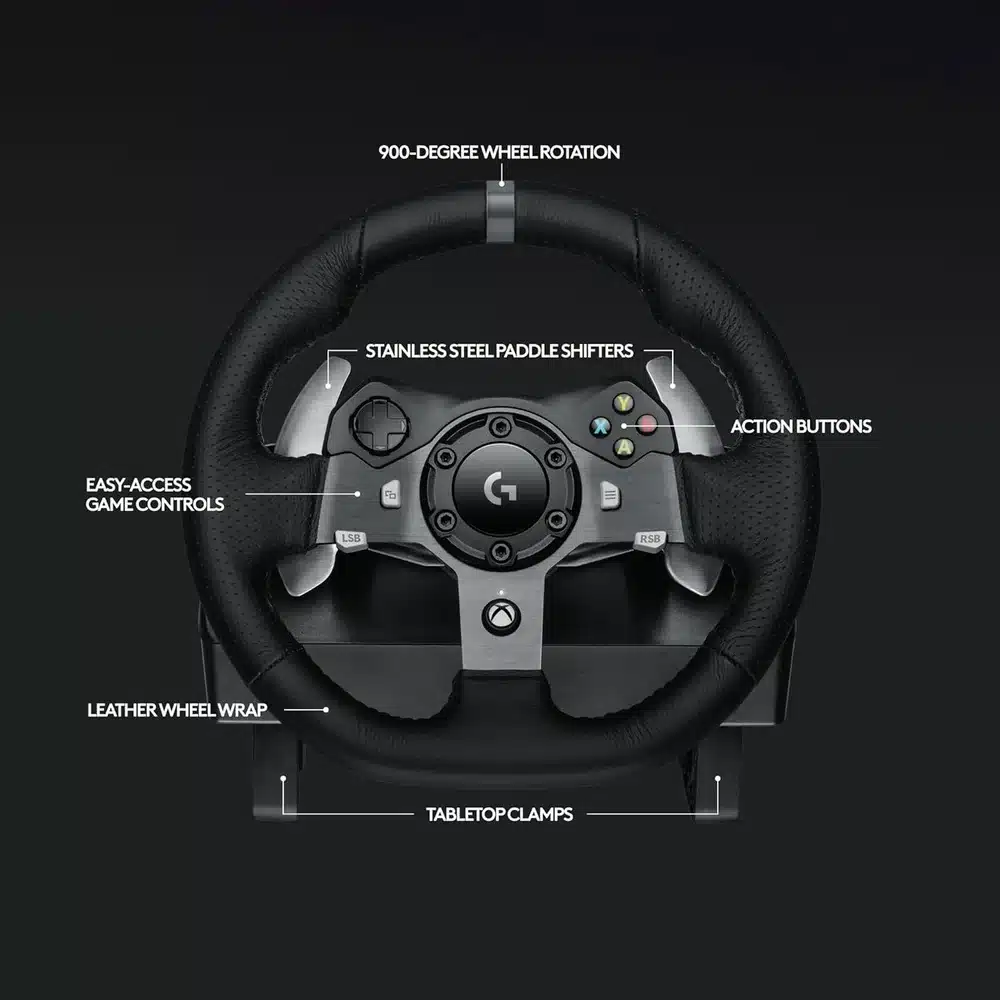

Wheel, Paddles and Pedals

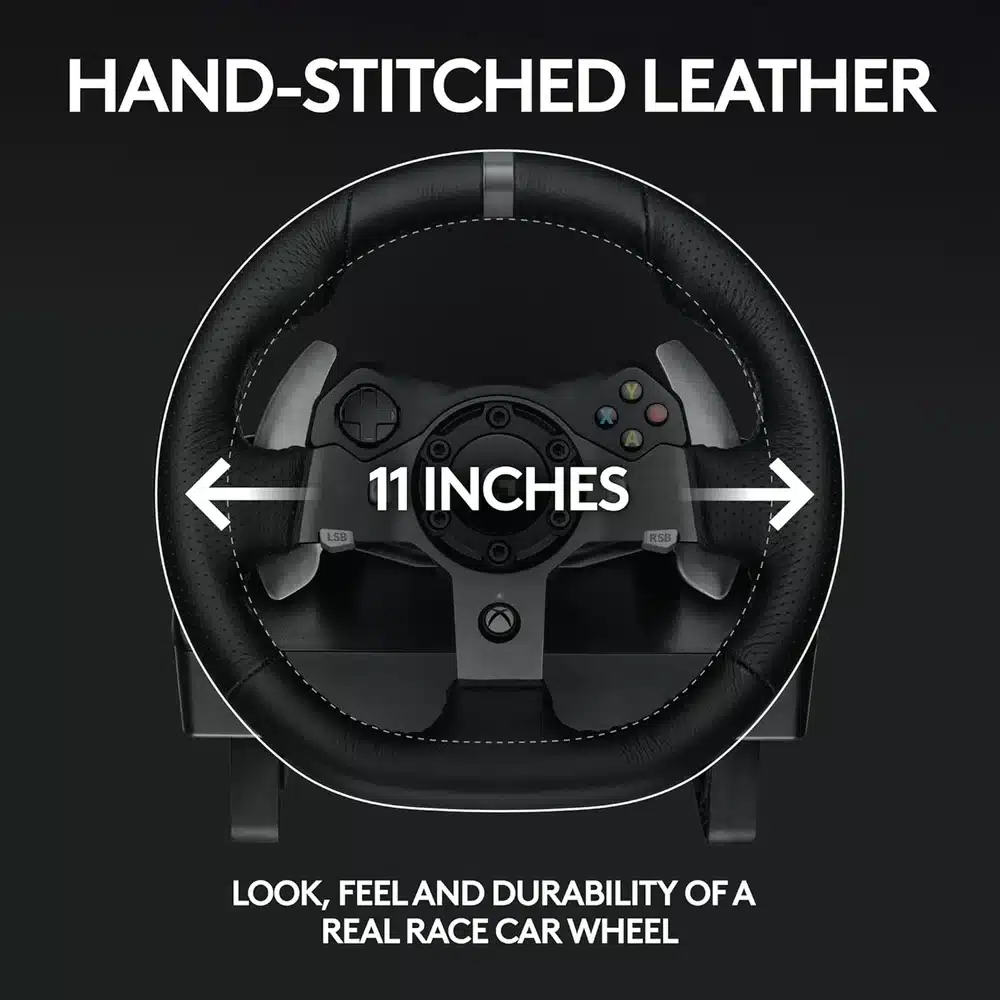

The rim is wrapped in hand-stitched leather, and the paddle shifters behind it are stainless steel. Logitech lists the wheel unit at 270 mm high, 278 mm wide and 260 mm deep, weighing 2.25 kg, with a 1.8 m USB cable.
The floor unit carries three pedals, throttle, brake and clutch, with stainless steel pedal faces. It measures 167 x 311 x 428.5 mm and weighs 3.10 kg, and it connects to the wheel base through a DB9 plug on a 1.8 m cable. The clutch pedal becomes useful once you add a manual shifter, and in games that support a separate clutch axis.
Mounting the Logitech G920 at Home
The wheel base clamps to a desk or table edge, and Logitech lists the clamp as extending up to 50 mm, so check the thickness of your desk top before you buy. Thick gaming desks with a lip or a drawer frame under the edge can get in the way. A racing stand or cockpit with bolt holes is the alternative for a permanent setup.
The pedals sit loose on the floor. On a tiled floor, which is common in UAE homes, a rug or a pedal mat stops the unit sliding forward under hard braking.
Manual Gearbox: Driving Force Shifter Sold Separately
No H-pattern shifter comes with the Logitech G920. Logitech sells the Driving Force Shifter as a separate product: a six-speed H-pattern gearbox with push-down reverse, a steel shaft and a leather-wrapped knob and boot, compatible with the G923, G29 and G920. Without it you change gear with the steel paddles on the wheel.
Power and Setup
The wheel needs its own power supply, which Logitech lists as 24 V 1.75 A, auto-switching, and it talks to the console or PC over USB 2.0. On PC, Logitech G HUB handles settings and firmware. Plan for a power socket near your gaming spot, since the wheel does not run from USB power alone.
Who This Is Not For
PlayStation owners: the Logitech G920 does not work on PS5 or PS4, and the G29 is the correct version. Mac users, since Logitech lists Windows 10 and 11 only. Anyone expecting a gear stick in the box, because the shifter is sold separately. Players who want the strength and detail of a direct-drive wheel will find a geared 2.3 Nm system lighter. And if your desk is thicker than 50 mm, the clamp will not fit without a stand.
Ordering in the UAE
The Logitech G920 is shipped from our stock and delivered across the UAE in up to 3 business days, free for orders of AED 300 and above. Every unit carries a 1-year warranty from Totot, defective or non-matching items can be returned within 14 days, and shipping damage should be reported within 48 hours.
Technical Specifications
- Model: Logitech G920 Driving Force (M/N W-U0002)
- Platforms: Xbox Series X|S, Xbox One, PC (not PlayStation)
- PC requirements: Windows 10 or 11, USB port, 150 MB free disk space, Logitech G HUB
- Force feedback: Dual-motor, helical gearing with anti-backlash (Logitech 2.3 Nm Racing System)
- Rotation: 900 degrees (max)
- Rim: Hand-stitched leather
- Paddle shifters: Stainless steel
- Wheel dimensions: 270 x 278 x 260 mm (H x W x D)
- Wheel weight: 2.25 kg
- Pedals: Throttle, brake and clutch; 167 x 311 x 428.5 mm; 3.10 kg
- Mounting clamp: Extends up to 50 mm
- Connection: USB 2.0 (corded), 1.8 m; pedals via DB9, 1.8 m
- Power: 24 V 1.75 A, auto-switching
- Shifter: Not included (Driving Force Shifter sold separately)
- Warranty: 1-year warranty from Totot
Specifications are from Logitech’s G920 technical specifications on Logitech Support and Logitech G’s Driving Force product page. Full details are published on the Logitech G920 technical specifications.
FAQ
Does the Logitech G920 work with PS5?
No. The G920 is for Xbox Series X|S, Xbox One and PC. The PlayStation version is the Logitech G29, a separate product.
Does it work on Xbox Series X|S?
Yes. Logitech lists Xbox Series X|S and Xbox One, as well as Windows PC.
Is a gear shifter included?
No. The Driving Force Shifter is sold separately; the wheel has steel paddle shifters for gear changes.
How far does the wheel turn?
900 degrees lock to lock, according to Logitech’s specifications.
Does the Logitech G920 work on a Mac?
No macOS support is listed. Logitech’s requirements name Windows 10 or 11 for PC use.
How thick can my desk be?
50 mm is the maximum, as Logitech lists the clamp as extending up to 50 mm.
