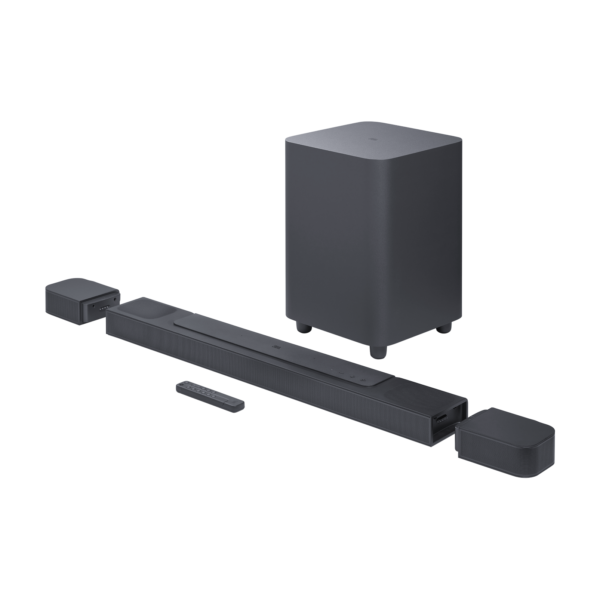

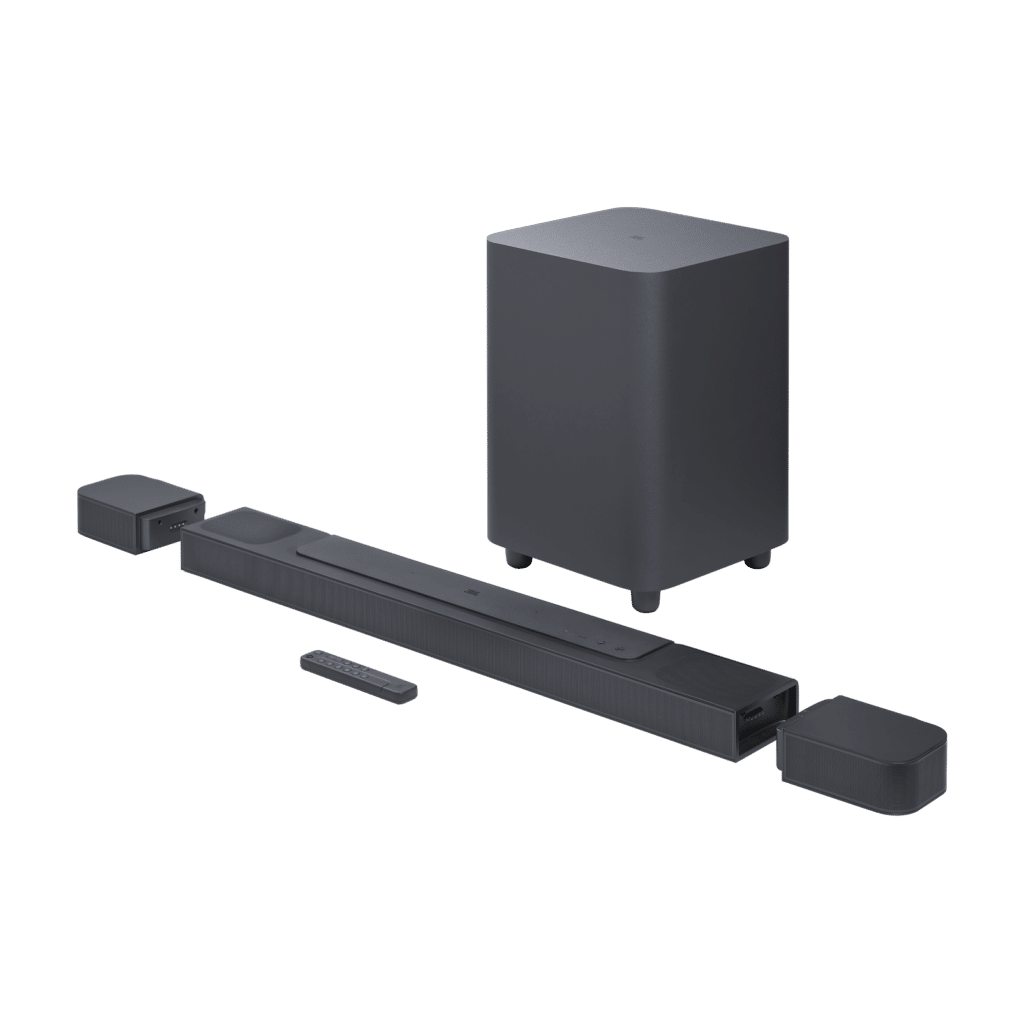

The JBL Bar 800 is a three-part surround system: a main soundbar with up-firing drivers, two detachable wireless surround speakers and a 10-inch wireless subwoofer. JBL’s spec sheet lists 5.1.2 channels with Dolby Atmos, 720W total maximum output at 1% THD, and surround speakers that run on battery for up to 10 hours.
Table of Contents
How the JBL Bar 800 works

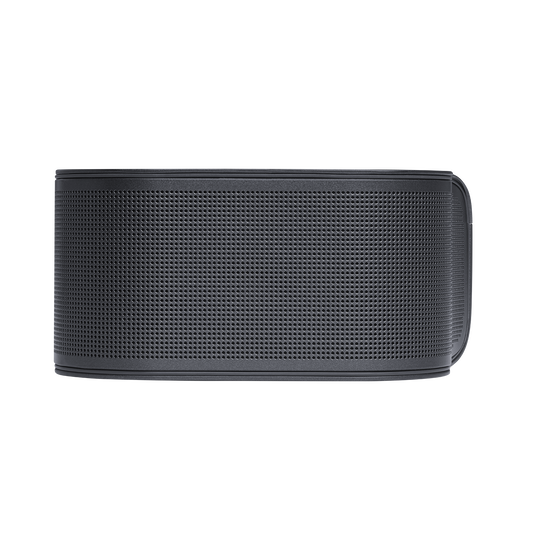

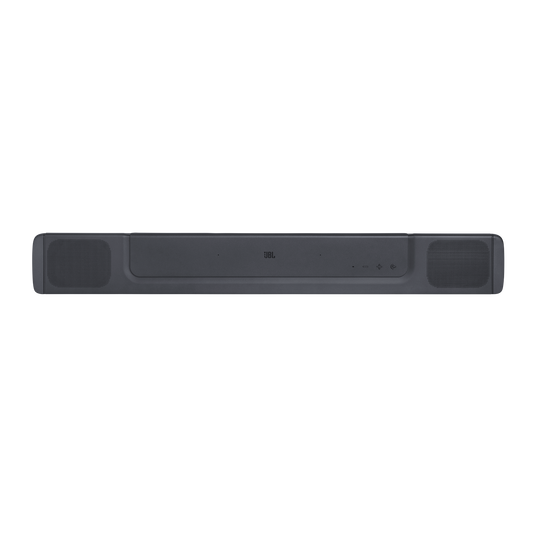

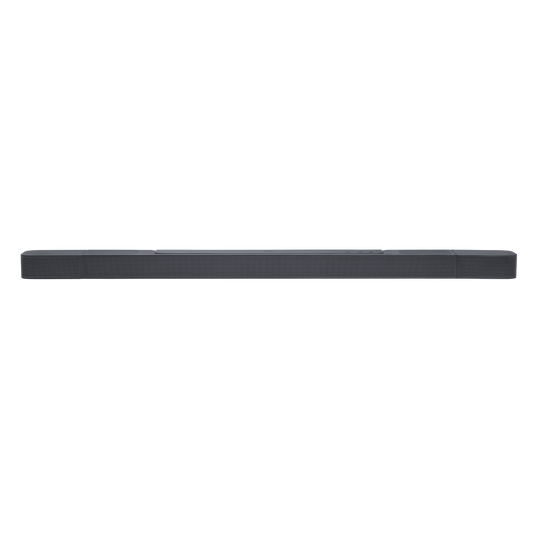

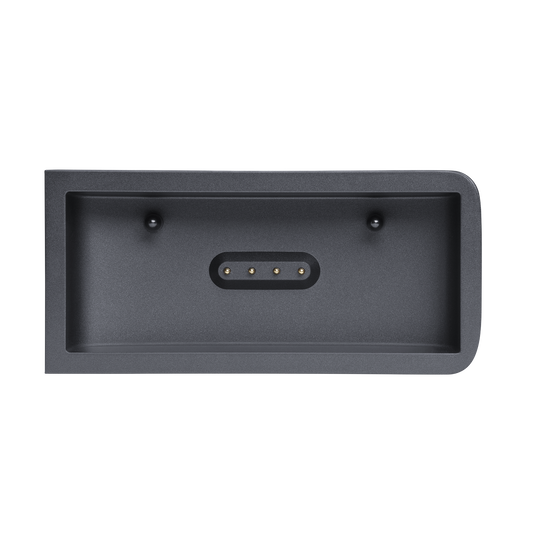

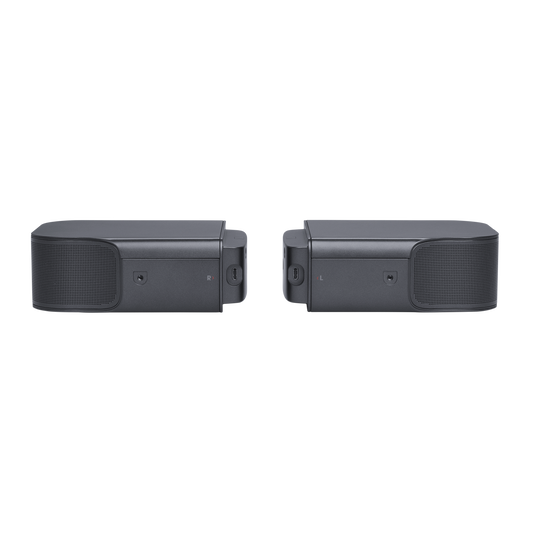

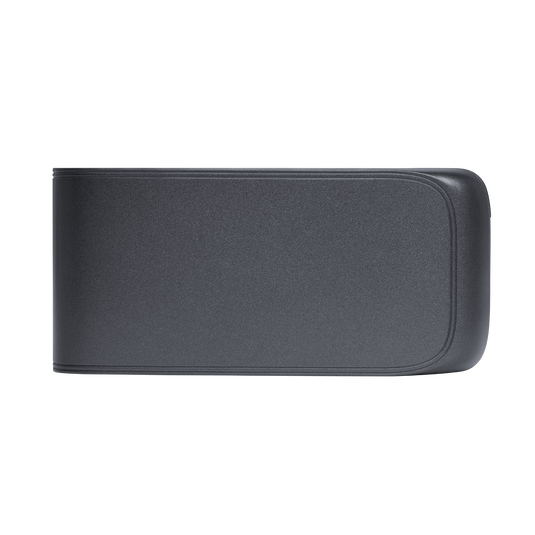

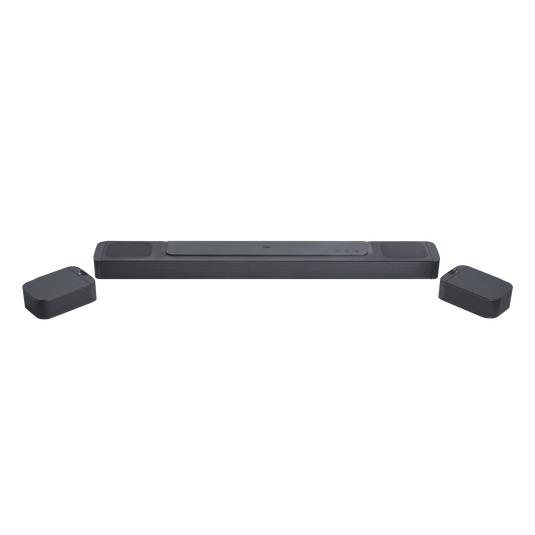

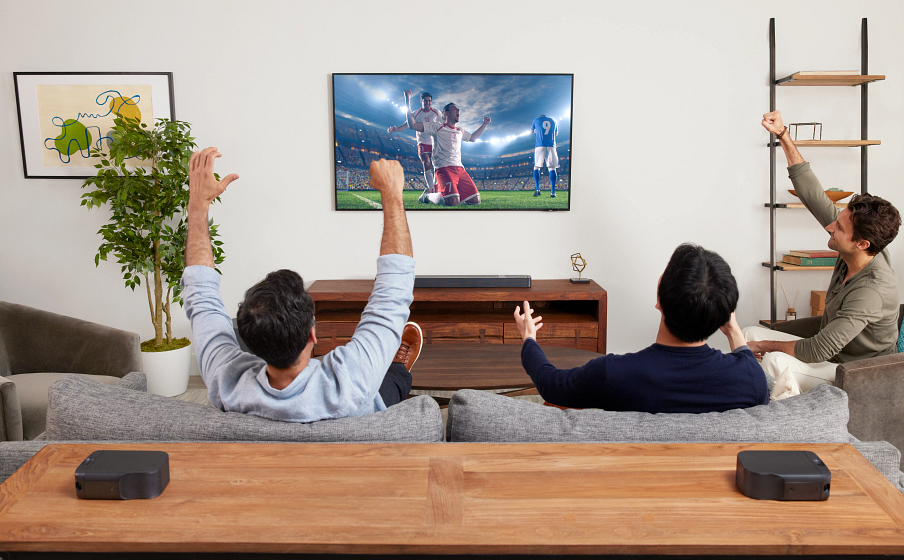

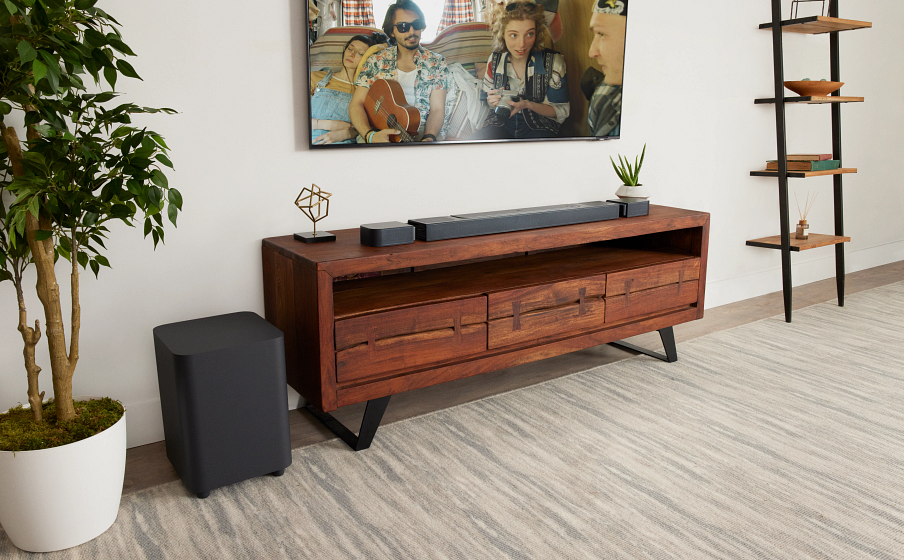

The main bar plays the front channels and bounces height effects off the ceiling through two up-firing drivers. The surround speakers detach from the ends of the bar and run wirelessly on battery, rated by JBL at up to 10 hours depending on content and volume, then recharge when docked. The subwoofer is wireless and needs only a power socket.
Drivers and power
JBL lists 720W maximum output at 1% THD: 340W for the soundbar, 300W for the subwoofer and 40W for each surround speaker. The bar has three 46 × 90 mm racetrack drivers, three 20 mm tweeters and two 70 mm up-firing full-range drivers. Each surround speaker has one 46 × 90 mm racetrack driver, and the subwoofer uses a 10-inch (260 mm) driver. Frequency response is 35Hz to 20kHz at −6dB.
Connections and streaming

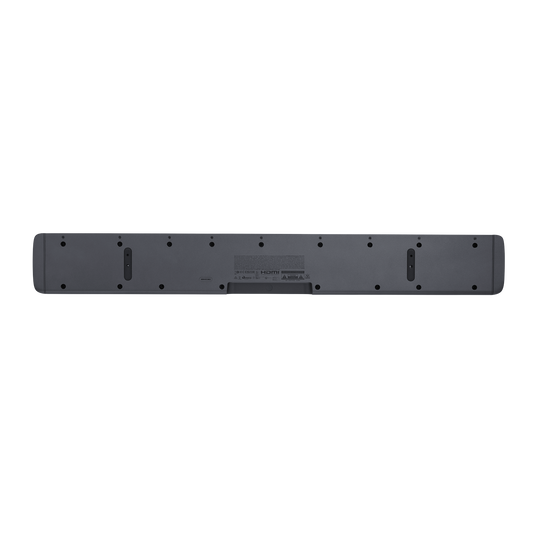

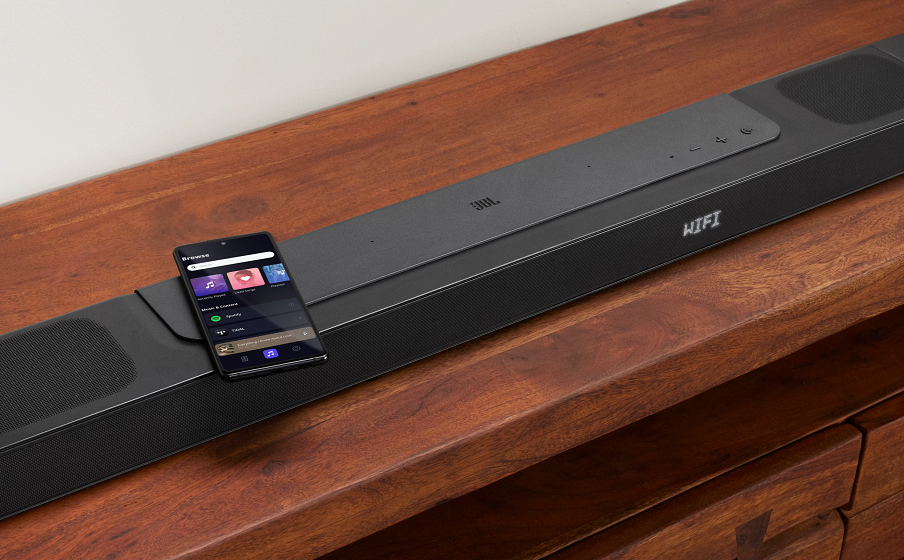

There is one HDMI input and one HDMI output with eARC, with HDR10 and Dolby Vision pass-through, plus an optical input. For streaming, the JBL Bar 800 has dual-band Wi-Fi, Bluetooth 5.0, AirPlay, Chromecast built-in and Alexa Multi-Room Music. JBL does not list DTS:X for this model.
Size and weight
The main bar measures 1174 × 56 × 120 mm and weighs 3.4 kg, so check your TV unit is at least that wide. JBL lists each surround speaker at 145 × 56 × 120 mm and 1.3 kg, and the subwoofer at 305 × 440.4 × 305 mm and 10 kg.
What is in the box
JBL lists the main soundbar, two wireless surround speakers, the wireless subwoofer, a remote with batteries, power cords, an HDMI cable, wall-mount brackets, side caps, a quick start guide, safety papers, a warranty card and a wall-mount template.
JBL Bar 800 or Bar 800MK2
The JBL Bar 800 has two up-firing drivers for 5.1.2 Dolby Atmos. The newer Bar 800MK2 is listed by JBL as 7.1 channels without up-firing drivers. If ceiling height effects matter to you, the Bar 800 has them.
Who the JBL Bar 800 is not for
It is not for anyone who needs several HDMI inputs, since it has one input plus eARC. It is not for DTS:X content fans, because JBL does not list DTS:X. It is not for narrow TV units under about 1.2 m, because the bar is 1174 mm wide.
See the JBL Bar 800MK2, the bigger JBL Bar 1000, or all our home speakers.
Warranty, delivery and returns
Every JBL Bar 800 from Totot comes with a 1-year Totot warranty against manufacturing defects. Delivery across the UAE takes up to 3 business days and is free here, because orders of AED 300 or more ship free.
Please check the system when it arrives and report any damage within 48 hours. Returns are accepted within 14 days. If the fault is ours, the return is free with a full refund. For a change of mind, the customer pays the actual return shipping and payment gateway fees.
Technical Specifications
- Model: JBL Bar 800
- Channels: 5.1.2 with detachable surround speakers
- Total output: 720W max at 1% THD
- Soundbar: 340W; 3 racetrack drivers (46 × 90 mm), 3 × 20 mm tweeters, 2 × 70 mm up-firing drivers
- Surround speakers: 2 × 40W, 1 racetrack driver each
- Subwoofer: 300W, 10-inch (260 mm), wireless
- Surround battery: Up to 10 hours (varies with content and volume)
- Frequency response: 35Hz–20kHz (−6dB)
- Audio: Dolby Atmos
- HDMI: 1 input, 1 output with eARC; HDR10 and Dolby Vision pass-through
- Other inputs: Optical, Bluetooth 5.0
- Streaming: AirPlay, Chromecast built-in, Alexa Multi-Room Music
- Soundbar size: 1174 × 56 × 120 mm, 3.4 kg
- Surround size: 145 × 56 × 120 mm, 1.3 kg each
- Subwoofer size: 305 × 440.4 × 305 mm, 10 kg
- Warranty: 1 year from Totot
Specifications on this page come from JBL’s official Bar 800 spec sheet and product page. JBL rates power as maximum output at 1% THD and surround battery life as up to 10 hours depending on content and volume, so we keep those conditions. Full details are published on the JBL Bar 800 official spec sheet (JBL).
FAQ
Is the JBL Bar 800 5.1.2?
Yes. JBL lists it as a 5.1.2-channel system with up-firing drivers.
Do the JBL Bar 800 surround speakers need cables?
No. They run on battery for up to 10 hours, depending on content and volume, and recharge on the bar.
Does it support DTS:X?
No. JBL lists Dolby Atmos but not DTS:X for the Bar 800.
How many HDMI inputs does it have?
1, plus one HDMI output with eARC.
Does it work with AirPlay?
Yes. JBL lists AirPlay, Chromecast built-in and Alexa Multi-Room Music.
Does Totot deliver the JBL Bar 800 across the UAE?
Yes. Delivery is free because orders of AED 300 or more ship free, and it arrives within up to 3 business days.
Browse more in our home speakers range. Every order from Totot carries a 1-year warranty covering manufacturing defects, with our 14-day return policy for defective or non-compliant items, and nationwide UAE delivery.
