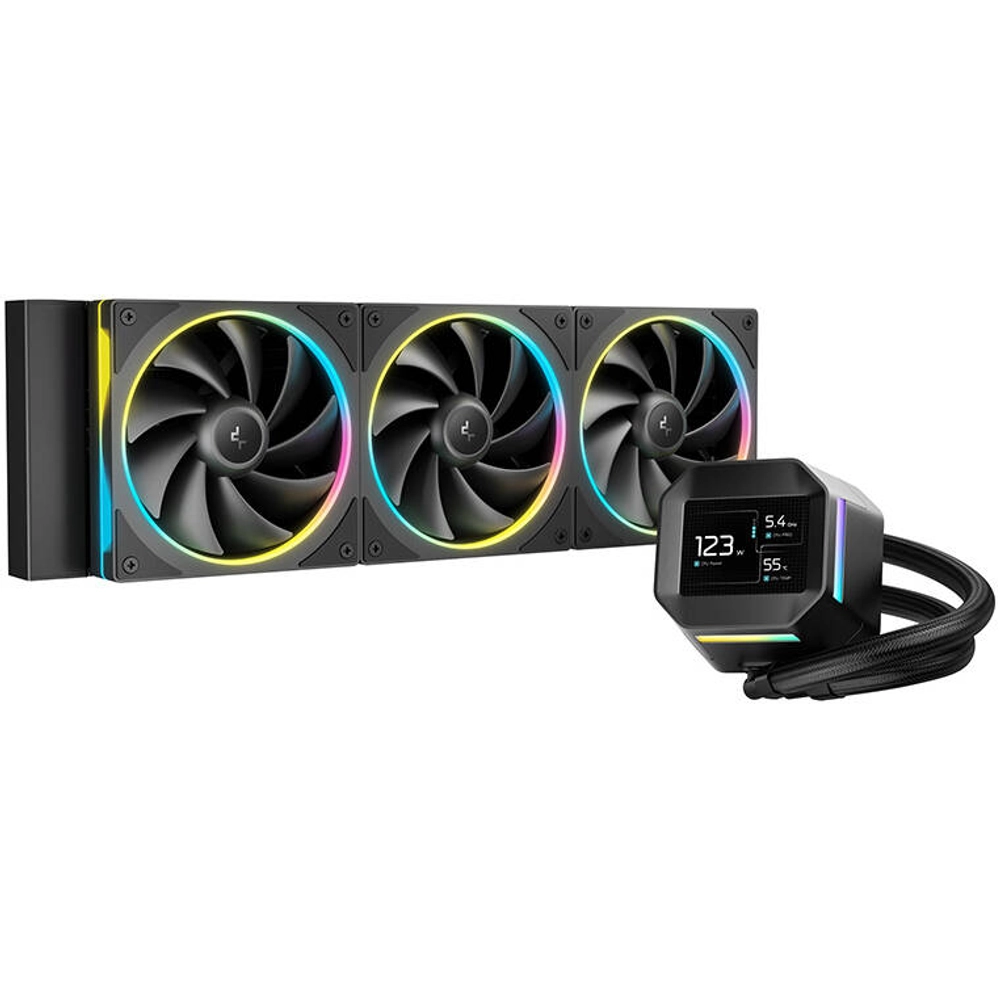

The DeepCool LM360 is an all-in-one (AIO) liquid CPU cooler built around DeepCool’s 6th-generation pump, a 402mm aluminium radiator and three 120mm FL12 SE fans. What sets it apart is the 2.4-inch IPS screen on top of the pump head: through the DeepCreative software it shows live CPU temperature and usage, a still image of your choice, or an MP4 clip. The unit we stock is the black version, part number R-LM360-BKDMMC-1, and it supports current Intel and AMD sockets including LGA1851 and AM5.
Table of Contents
How the DeepCool LM360 Cools Your CPU
The DeepCool LM360 carries heat from the processor through coolant in a sealed loop to the radiator, where the three fans push it away. Unlike a tower air cooler, which dumps warm air inside the case next to the graphics card, a radiator on the case wall sends that heat outside. The large 360mm surface also lets the fans spin slower for the same temperature, so the system stays quieter under long loads, useful headroom in UAE rooms that run warmer than typical test conditions.
6th-Gen Pump and FL12 SE Fans
DeepCool says its 6th-generation pump was designed for better thermal efficiency and lower noise with high-power processors. It uses a three-phase motor with FOC control, runs between 2,500 and 3,400 rpm (±10%), connects to a 4-pin PWM header and draws 3.48 W at 12 V. The three FL12 SE fans use a hydro bearing and run from 400 to 2,400 rpm (±10%). At full speed DeepCool rates each fan at 66.23 CFM of airflow and 3.27 mmAq of static pressure, with noise at or below 36.07 dB(A). Each fan draws 2.16 W.
The 2.4-inch IPS Screen and DeepCreative
The screen on the DeepCool LM360 is a 2.4-inch IPS panel with a 320 × 240 resolution. In DeepCreative you choose what it shows: Real-Time Monitoring for live CPU temperature and usage, Media Mode for an image or MP4 video, or Zen Mode, which automatically eases off screen updates under heavy load so the display does not compete with your games or renders for system resources. The software also lets you adjust brightness and rotate the picture, handy if the pump sits at an unusual angle. DeepCool does not publish the screen’s refresh rate on the official specification page.
Check Your Case Before Ordering

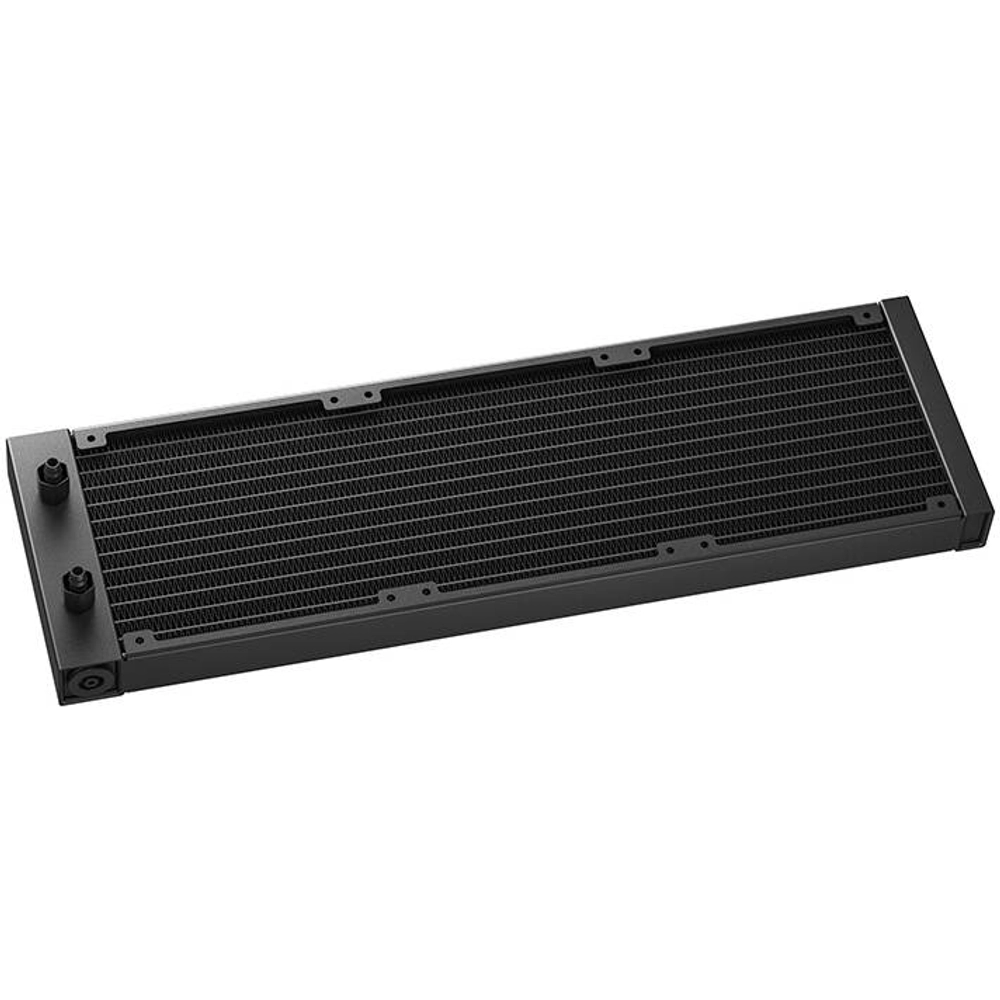

The radiator measures 402 × 120 × 27 mm, and the fans add another 25 mm, so the assembly is about 52 mm thick once installed. Confirm first that your case lists 360mm radiator support at the position you plan to use, top or front. A top mount can clash with tall memory modules or motherboard heatsinks; a front mount can clash with a drive cage. The tubes are 410 mm long and the pump head measures 90 × 80 × 63 mm. Two minutes with your case’s spec sheet prevents the most common reason AIO coolers come back.
Socket Support, ARGB and Leak Protection

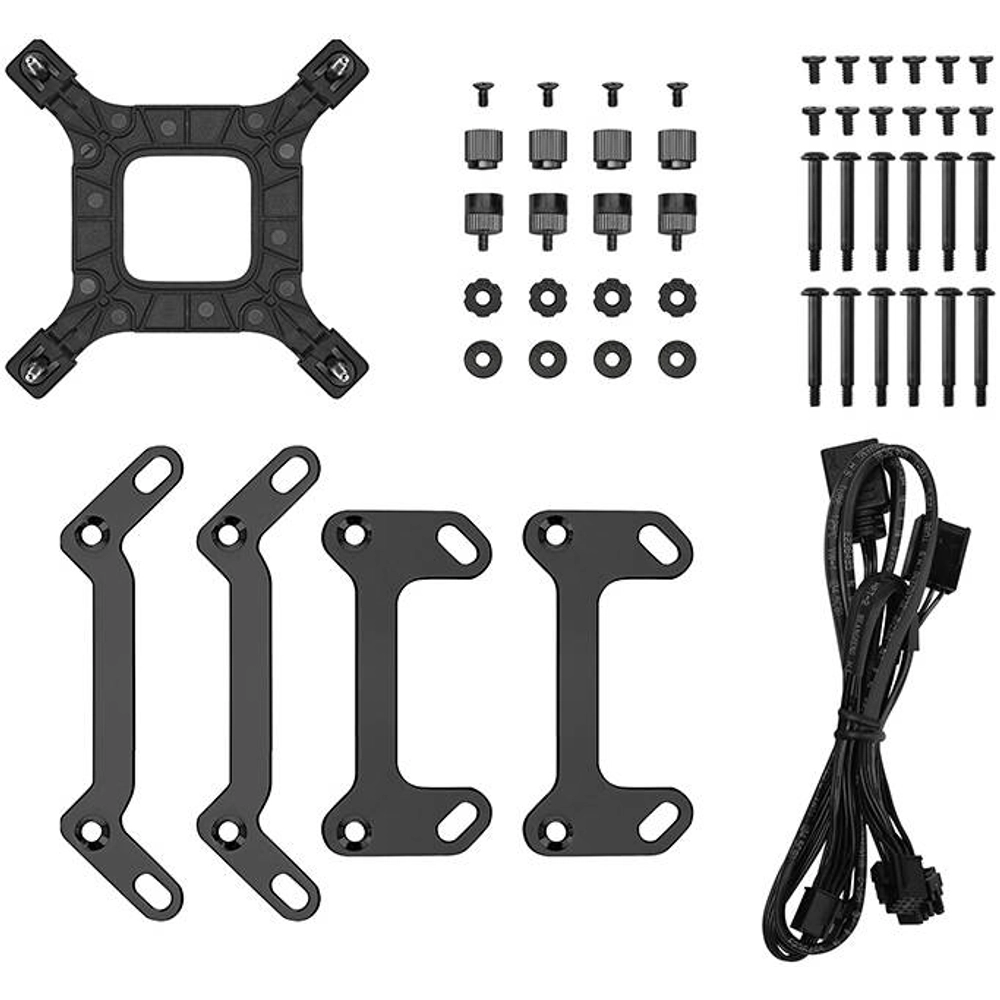

Supported sockets are Intel LGA1851, 1700, 1200, 1151, 1150 and 1155, plus AMD AM5 and AM4, so the cooler covers Core Ultra and Ryzen 9000 builds as well as older platforms. Lighting is addressable RGB on both the pump and the fans, wired to a 5 V 3-pin ARGB header on the motherboard; the pump lighting draws 1.5 W and the three fans 3.5 W combined. DeepCool’s patented anti-leak technology uses an internal valve that releases excess pressure once it exceeds ambient air pressure. The loop is sealed, so there is no coolant to add, and the net weight is 1,729 g.
Who This Is Not For
The DeepCool LM360 is not for small cases that cannot take a 360mm radiator, or for systems that must run untouched for a decade: the pump has a finite life and the sealed loop cannot be refilled. The screen needs DeepCreative on Windows to show live data. And with a mid-range, lower-power processor, a 240mm AIO or a good tower air cooler does the job for less.
Ordering from Totot
Totot sells the DeepCool LM360 brand-new and genuine in its sealed box, backed by a 1-year warranty from Totot. Delivered across the UAE in up to 3 business days, free on orders from AED 300, with cash on delivery or instalments via Tabby and Tamara. Items that arrive defective or not as ordered can be returned within 14 days, and any shipping damage should be reported within 48 hours of delivery. Browse more in our Cooling Systems range, or see the official DeepCool LM360 product page.
DeepCool LM360 Specifications
- Model: DeepCool LM360, part number R-LM360-BKDMMC-1 (black)
- Type: All-in-one liquid CPU cooler
- Radiator: Aluminium, 402 × 120 × 27 mm
- Tubing: 410 mm
- Pump: 6th generation, 2,500–3,400 rpm ±10%, 4-pin PWM, 12 V / 0.29 A / 3.48 W
- Pump head size: 90 × 80 × 63 mm
- Fans: 3 × FL12 SE, 120 × 120 × 25 mm, 400–2,400 rpm ±10%, hydro bearing, 4-pin PWM, 2.16 W each
- Airflow and pressure: 66.23 CFM and 3.27 mmAq per fan
- Noise: ≤ 36.07 dB(A) per fan
- Screen: 2.4-inch IPS LCD, 320 × 240, images and MP4 video (refresh rate not published)
- Software: DeepCreative: Real-Time Monitoring, Media Mode, Zen Mode
- Lighting: ARGB, 5 V 3-pin connector; 1.5 W pump, 3.5 W for three fans
- Sockets: Intel LGA1851 / 1700 / 1200 / 1151 / 1150 / 1155; AMD AM5 / AM4
- Leak protection: Patented internal pressure-release valve
- Net weight: 1,729 g
- Warranty: 1-year warranty from Totot
DeepCool LM360 FAQ
Does the DeepCool LM360 support Intel Core Ultra processors?
Yes. It supports the LGA1851 socket used by Core Ultra chips, as well as LGA1700, 1200 and the 115x family.
Can the screen play video?
Yes. Media Mode in DeepCreative plays MP4 clips and shows still images.
Does the DeepCool LM360 need refilling?
No. It is a sealed unit; coolant cannot and does not need to be added.
How thick is the radiator with fans?
About 52 mm: 27 mm of radiator plus 25 mm of fan, so check clearance above the motherboard for a top mount.
What is the screen refresh rate?
DeepCool does not publish it; the official page lists only the 2.4-inch size and 320 × 240 resolution.
Is it genuine?
Yes. We sell the genuine DeepCool LM360, brand-new in its sealed box.
How long does delivery take?
Up to 3 business days anywhere in the UAE, free on orders from AED 300; any current delivery fee for your order is shown at checkout.
