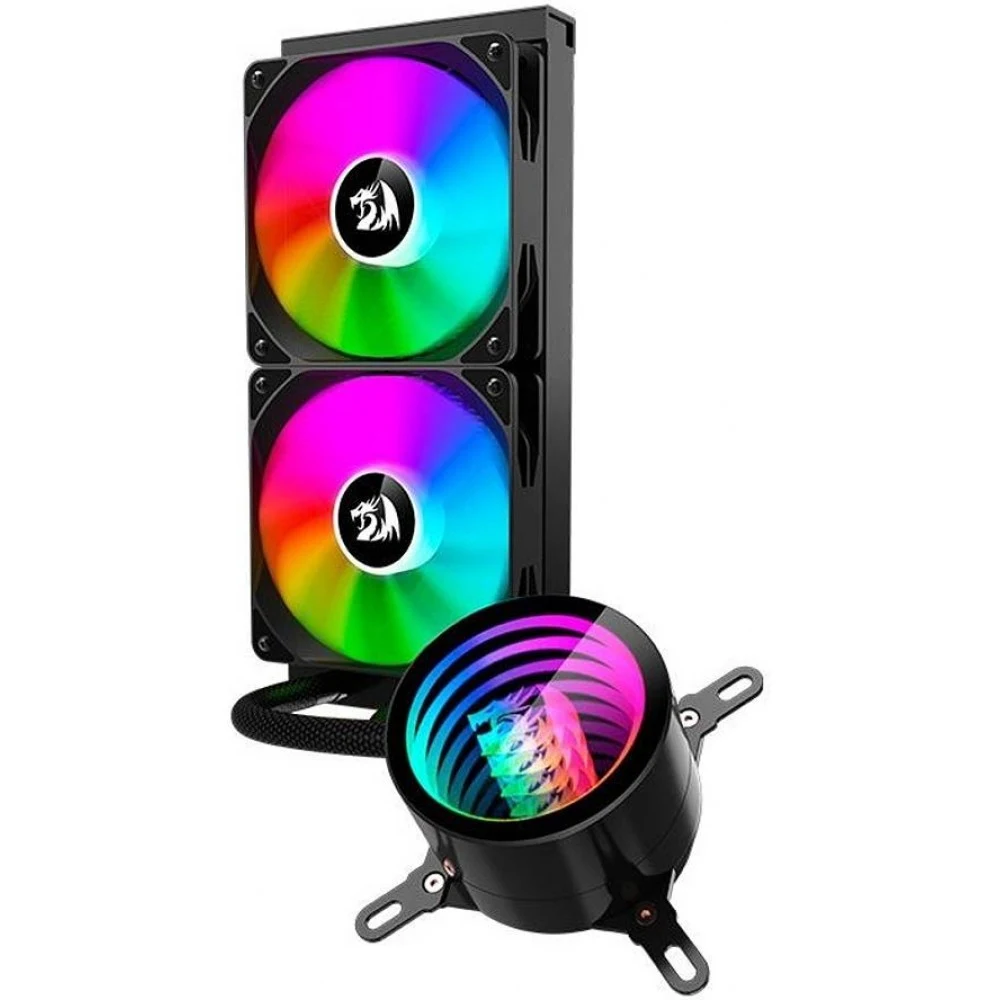

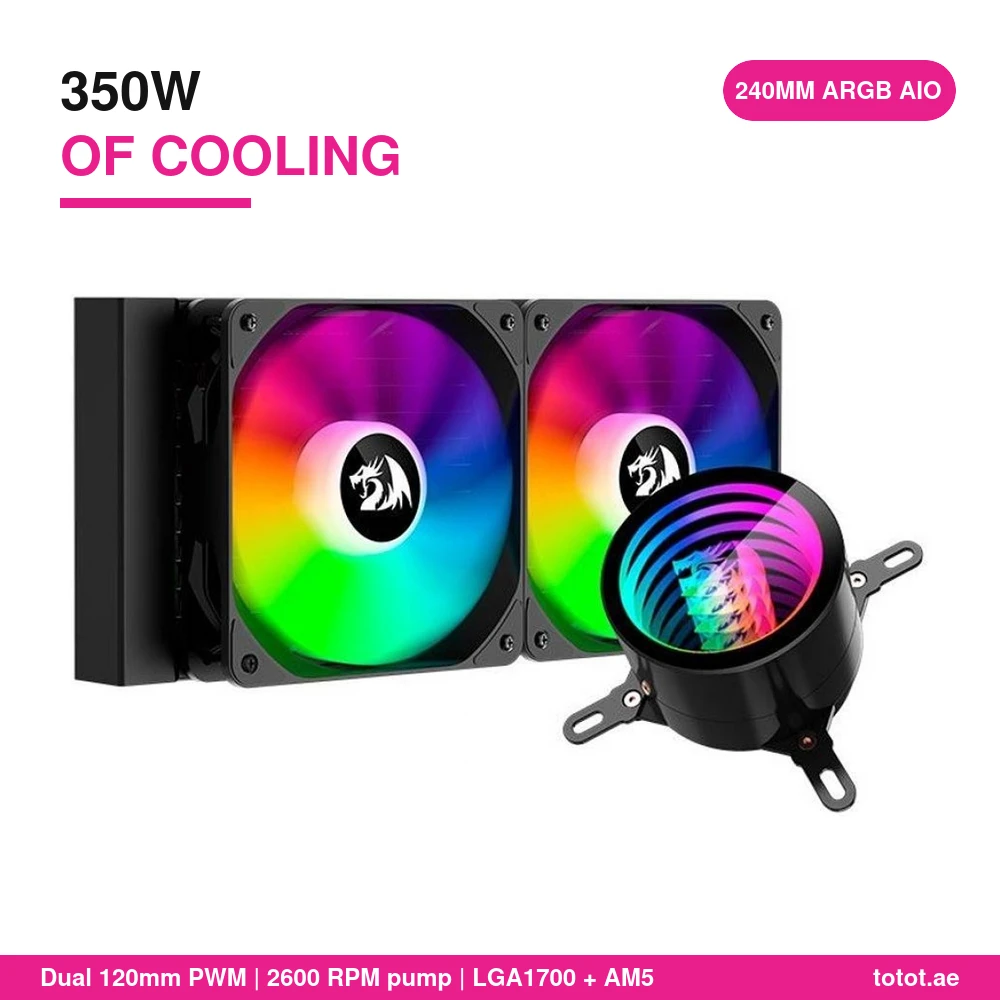

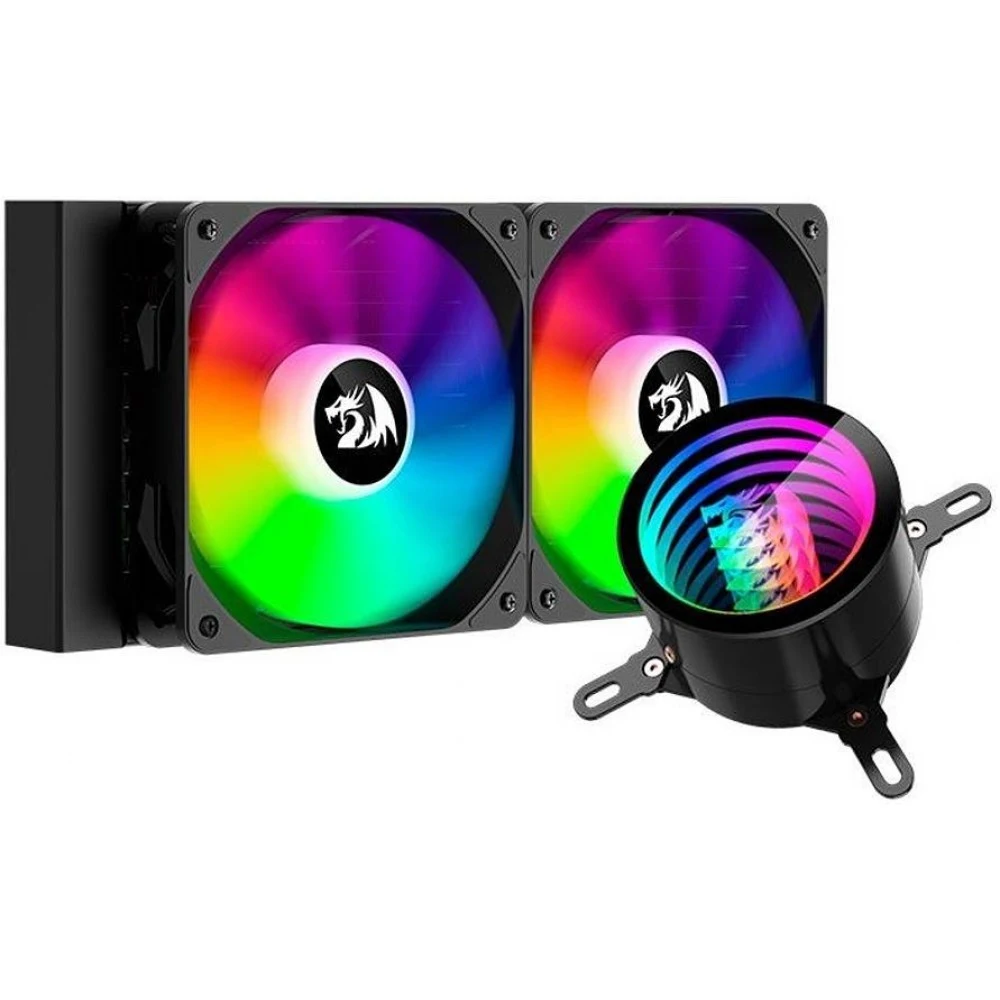

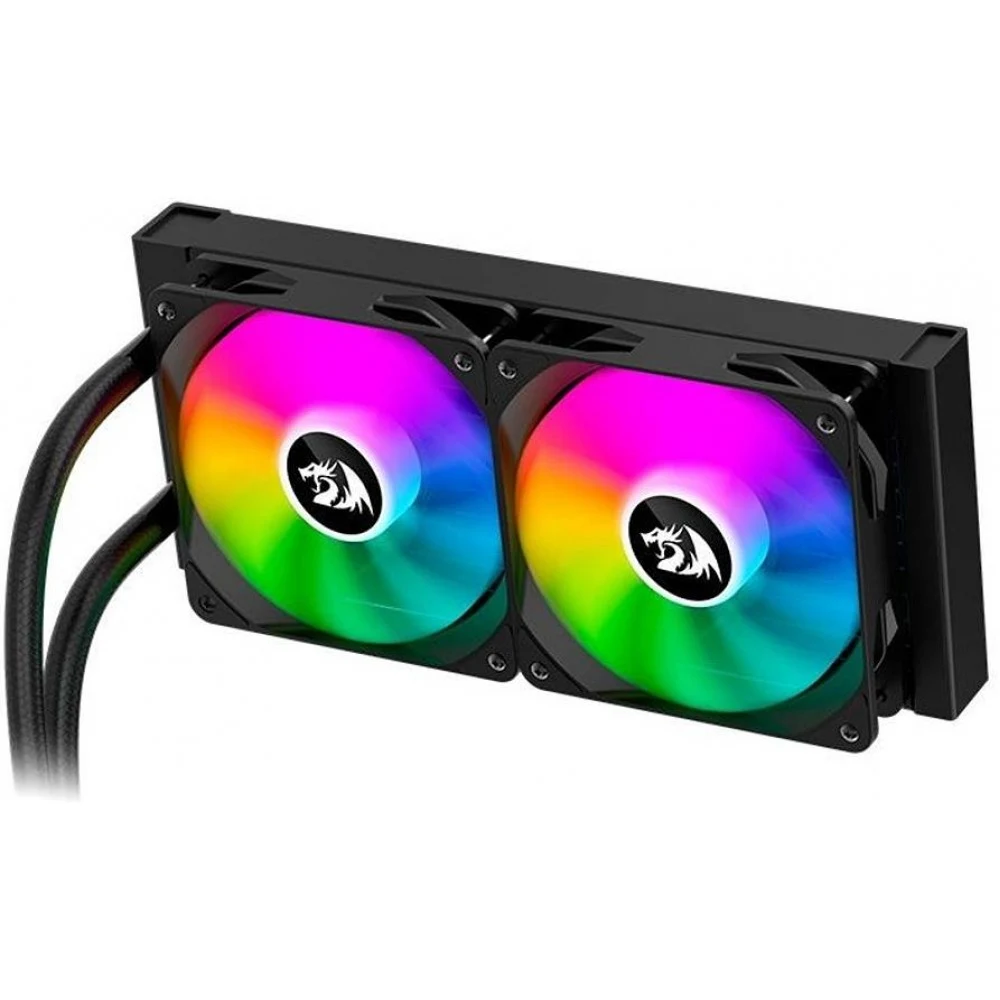

The Redragon CCW-3011 Black is a 240mm all-in-one (AIO) liquid CPU cooler in an all-black finish. The pump head carries an ARGB infinity-mirror cover with the Redragon dragon inside, the 276 × 120 × 27 mm radiator takes two 120mm ARGB fans, and the kit includes brackets for Intel LGA1700, LGA1200, LGA115X, LGA1366 and LGA20XX boards as well as AMD AM2, AM3, AM4 and AM5. Redragon rates the pump at 2600 RPM (±10%) with a noise level of 28 dBA at that speed.
Table of Contents
Black finish and the infinity-mirror pump

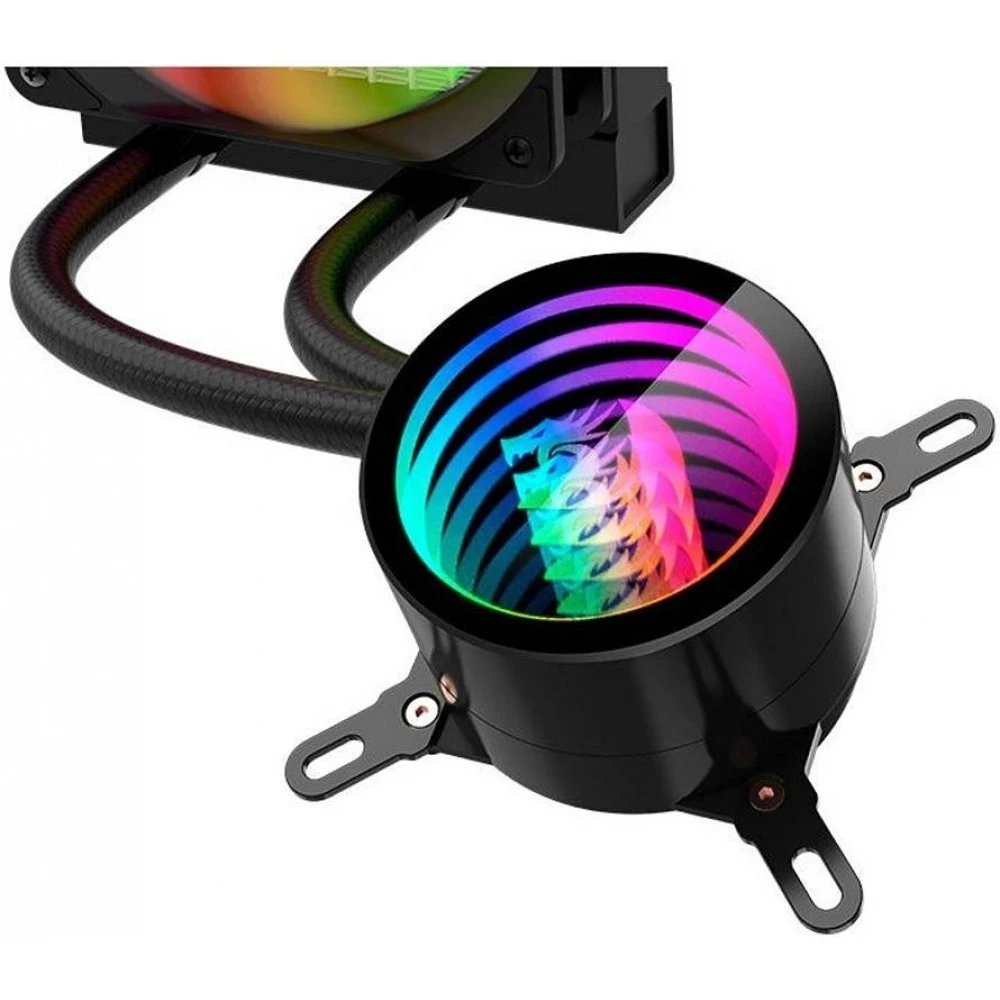

The Redragon CCW-3011 Black keeps everything dark: black radiator, black fan frames, black sleeved tubes and a black pump housing. That lets the lighting do the work. The pump cap is an infinity mirror, so the ARGB ring appears to fall away into the block in repeating layers around the Redragon dragon, while the two fans glow through their translucent blades. In a black case with a tempered-glass side panel, the black version blends into the build and leaves the light show as the focal point. It is also the safer choice if your motherboard, RAM and GPU are black, because nothing on the cooler fights the rest of the parts.
Pump and radiator specifications
For the Redragon CCW-3011 Black, Redragon lists the pump head at Ø70 × 53 mm and the radiator at 276 × 120 × 27 mm, the standard size for a 240mm mount. The pump runs from 12V with the lighting on 5V, starts at 6V, and spins at 2600 RPM ±10%. Rated current is 0.26A (0.35A maximum) and power draw is 3.1W (4.2W maximum). Redragon quotes 28 dBA at 2600 RPM, an operating range of −10 to +60°C and an expected life of 50,000 hours at 25°C. Redragon does not publish a TDP rating, fan speed, airflow or static pressure for the Redragon CCW-3011 Black, so we do not quote those figures.
Socket support and what is in the box
According to the Redragon quick install guide, the Redragon CCW-3011 Black ships with an Intel backplate and brackets for LGA1366, LGA115X, LGA1200, LGA1700, LGA2011, LGA2011-V3 and LGA2066, plus AMD brackets for AM2, AM3, AM4 and AM5. Separate nuts are supplied for AMD (34 mm), LGA115X/1200/1700 (36 mm) and LGA20XX (32.5 mm). You also get four bracket screws, eight fan screws, eight radiator screws and thermal compound, so no extra parts are needed for a standard installation.
Connecting the lighting
On the Redragon CCW-3011 Black, the pump and fans take power from the motherboard fan header, and the lighting connects to a 5V ARGB header so it can be synced with the board’s own RGB software. Check that your motherboard has a 5V 3-pin ARGB header before buying: a 12V 4-pin RGB header is a different standard and must not be used. Redragon’s guide shows the CHA_FAN header for power. With the lighting synced, the pump mirror and both fans follow the same effects as the rest of your build.
Fitting a 240mm radiator

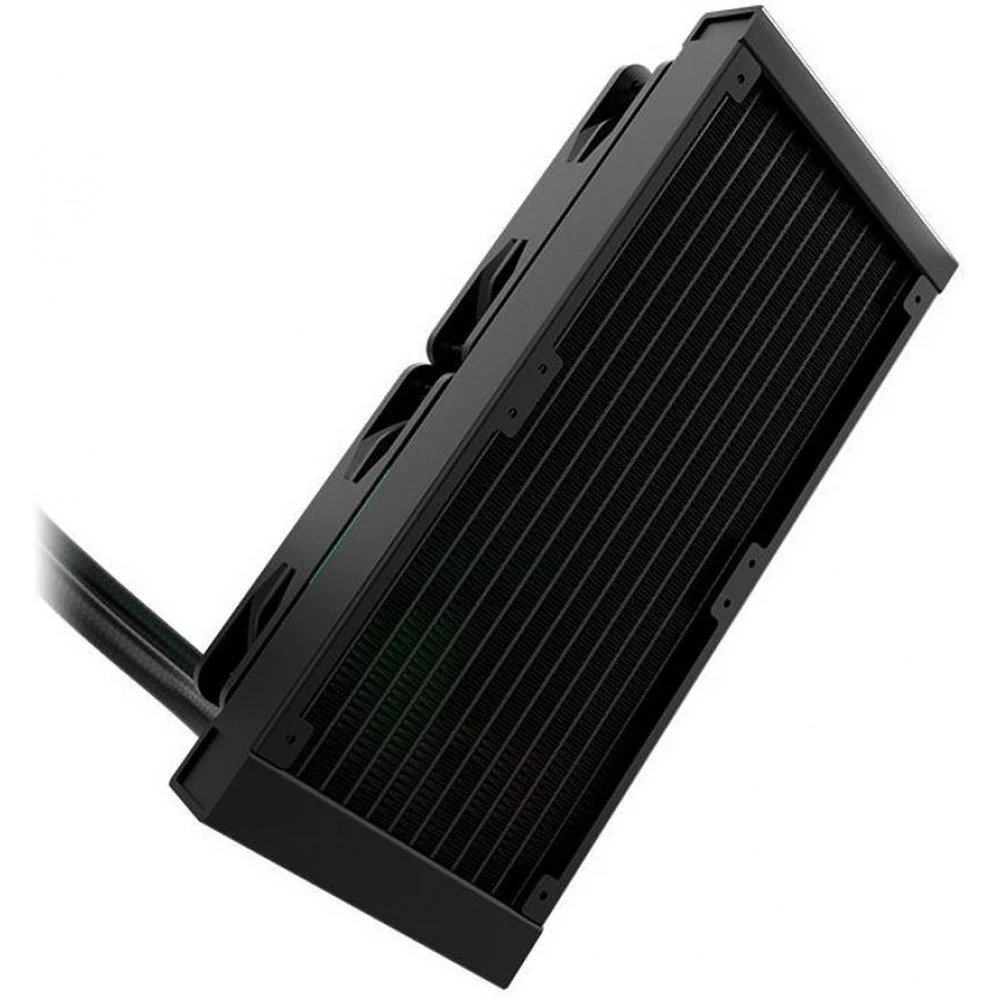

The radiator is 276 mm long, 120 mm wide and 27 mm thick, and the fans add their own depth on top. Most current mid-tower cases accept a 240mm radiator on the top or front, but compact cases may not, and some top mounts clash with tall RAM. Measure the space and check your case manual for 240mm radiator support before ordering the Redragon CCW-3011 Black.
Who This Is Not For
The Redragon CCW-3011 Black is not for anyone who needs published thermal numbers: Redragon does not state a TDP rating, fan speed or airflow, so it is hard to compare with coolers that do. It needs a 5V ARGB header for synced lighting, a 240mm radiator mount in the case, and it has no software or LCD screen of its own. Small-form-factor cases without 240mm support are ruled out.
Ordering from Totot
Totot sells the Redragon CCW-3011 Black brand-new and genuine in its sealed box, backed by a 1-year warranty from Totot. We deliver UAE-wide in up to 3 business days, and delivery is free on orders from AED 300, with cash on delivery or instalments via Tabby and Tamara. Items that arrive defective or not as ordered can be returned within 14 days, and any shipping damage should be reported within 48 hours of delivery. Browse more in our Cooling Systems range, or see the official Redragon CCW-3011 240mm ARGB Liquid CPU Cooler page.
Redragon CCW-3011 Black Specifications
- Model: Redragon CCW-3011 (black)
- Type: 240mm all-in-one liquid CPU cooler
- Colour: Black
- Pump head: Ø70 × 53 mm, ARGB infinity mirror
- Radiator: 276 × 120 × 27 mm
- Fans: 2 × 120mm ARGB (speed not published)
- Pump speed: 2600 RPM ±10%
- Noise: 28 dBA at 2600 RPM
- Rated voltage: Pump 12V, LED 5V
- Start voltage: 6V
- Rated current: 0.26A (0.35A max)
- Power consumption: 3.1W (4.2W max)
- Operating temperature: −10 to +60°C
- Expected life: 50,000 hours at 25°C
- Listed weight: 650 g ± 20 g, as listed by Redragon
- Intel sockets: LGA1366, 115X, 1200, 1700, 2011, 2011-V3, 2066
- AMD sockets: AM2, AM3, AM4, AM5
- Lighting: 5V ARGB, motherboard sync
- TDP rating: Not published by Redragon
- In the box: Cooler, Intel backplate and brackets, AMD brackets, nuts, bracket screws, 8 fan screws, 8 radiator screws, thermal compound, quick install guide
- Warranty: 1-year warranty from Totot
Redragon CCW-3011 Black FAQ
Does the Redragon CCW-3011 Black support LGA1700 and AM5?
Yes. Redragon’s guide lists Intel LGA1700 and AMD AM5 brackets in the box, along with older sockets.
What is the TDP rating?
Redragon does not publish a TDP rating for the CCW-3011.
Is the lighting 5V or 12V?
5V ARGB, connected to a 3-pin ARGB header on the motherboard for sync.
How loud is the pump?
28 dBA at 2600 RPM, according to Redragon.
Is the black version the better match for a black build?
Yes. The black radiator, fans, tubes and pump blend into a dark case and leave the ARGB lighting as the only colour.
Is thermal paste included?
Yes. Thermal compound is listed in the box.
Is it genuine?
Yes. We sell the genuine Redragon CCW-3011, brand-new in its sealed box.
How long does delivery take?
No more than 3 business days to any emirate, free from AED 300; the live fee for your order appears at checkout.
