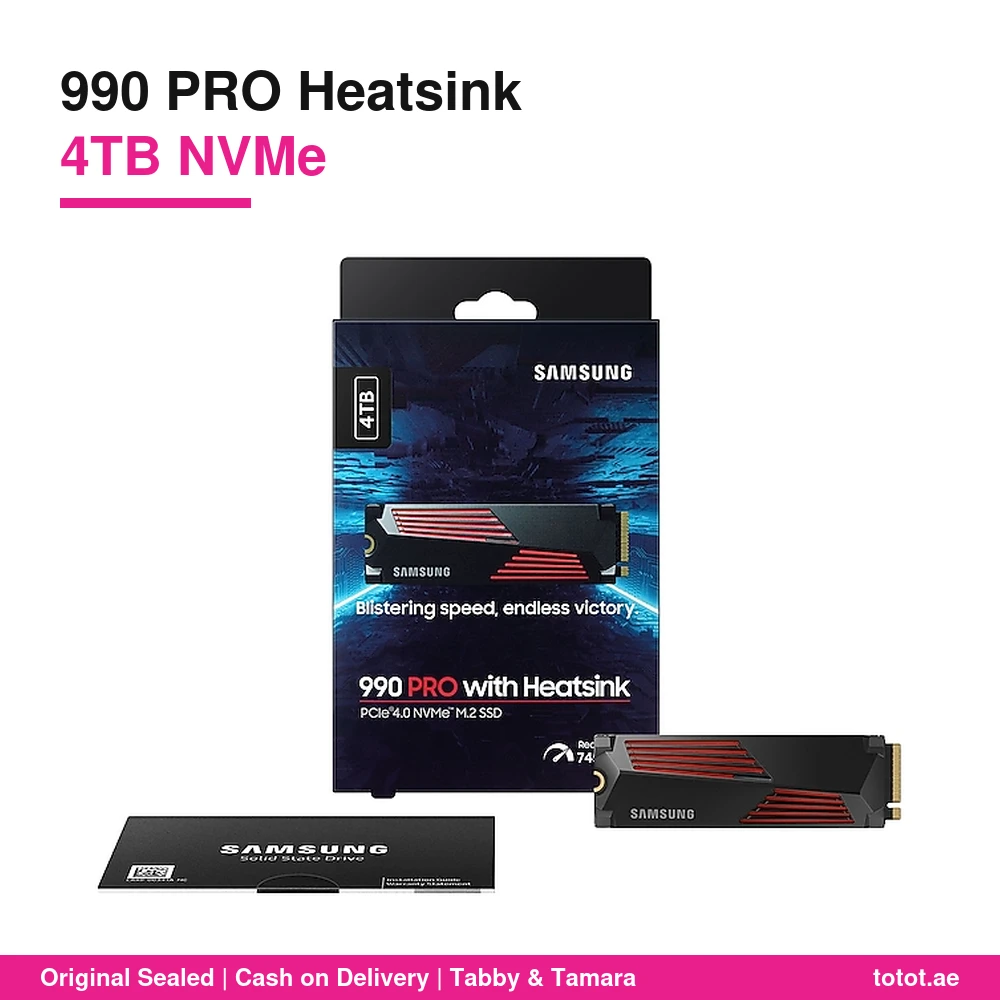

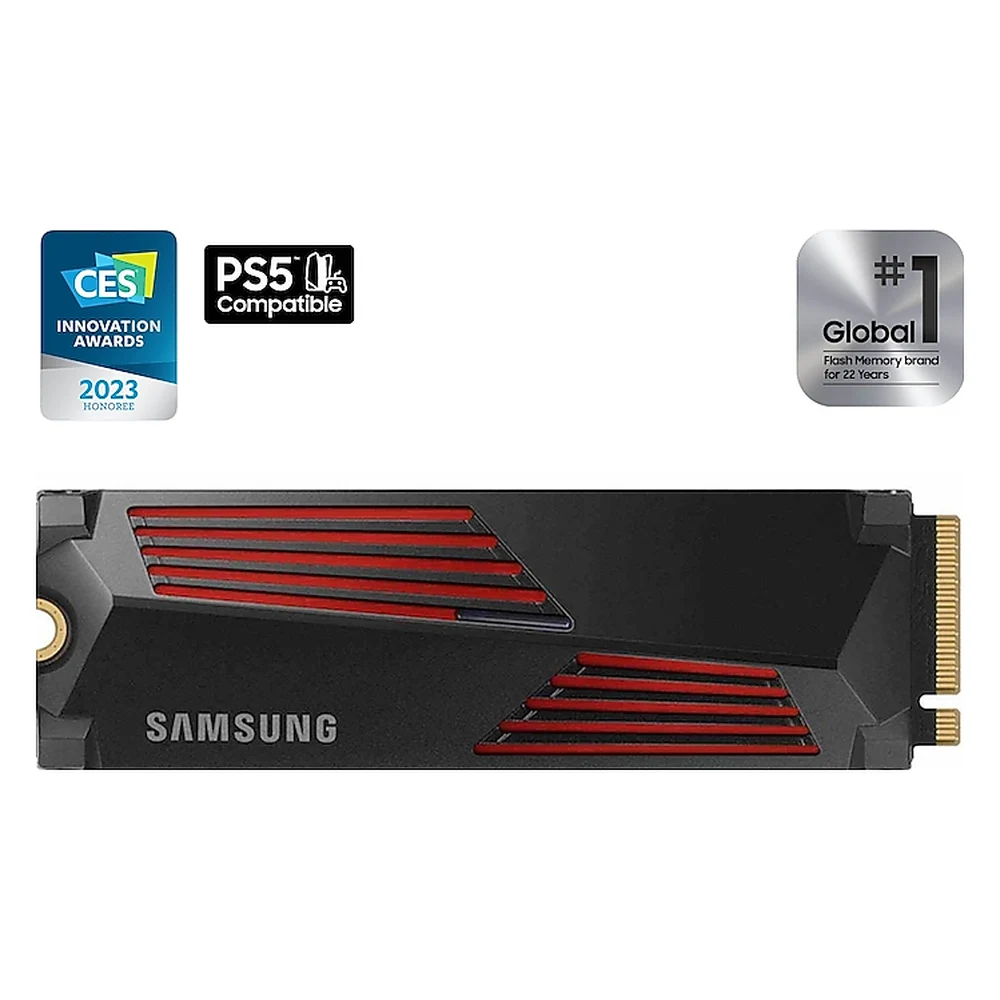

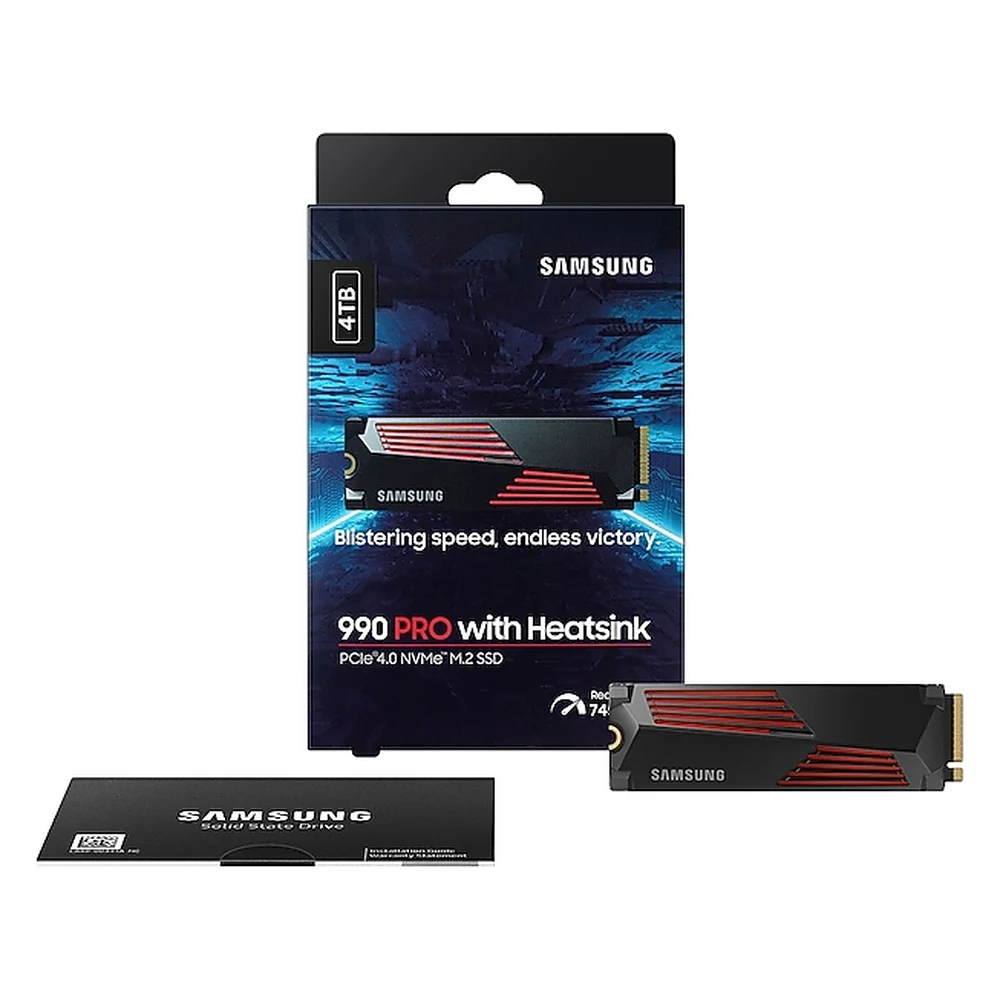

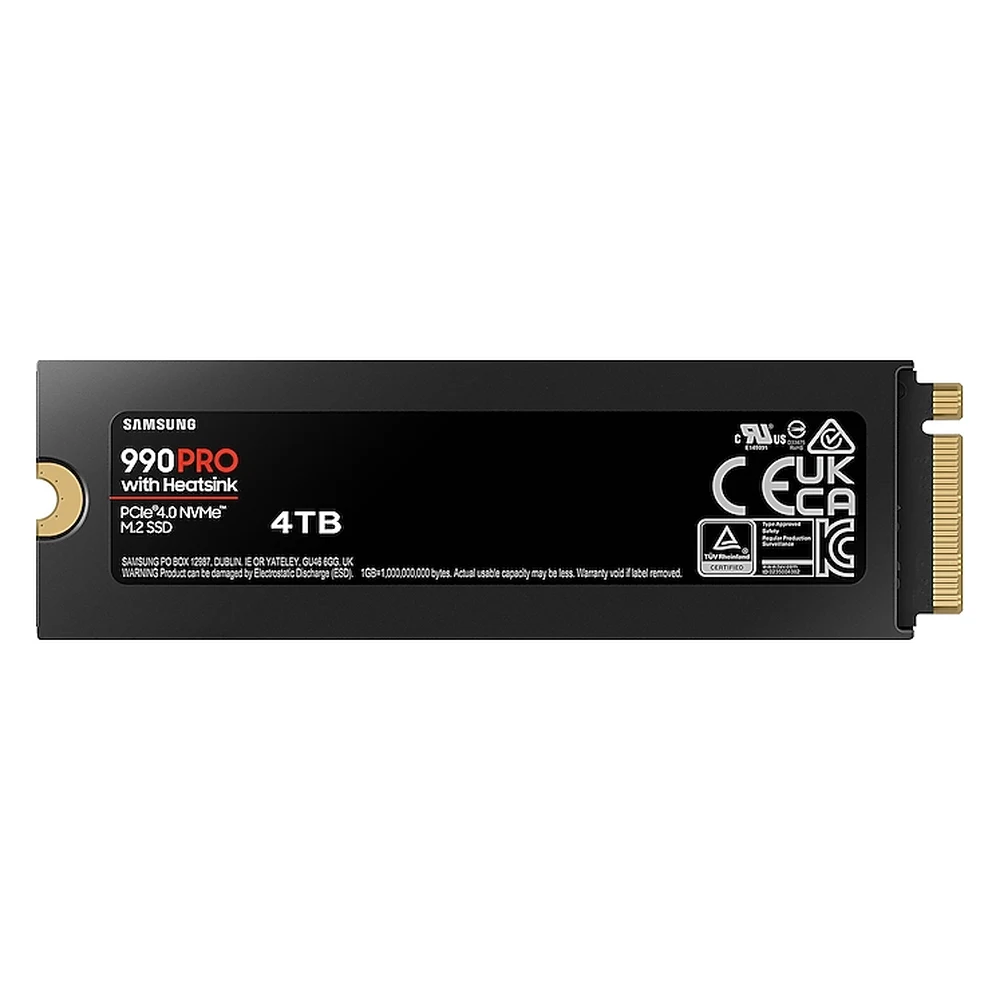

The Samsung 990 PRO with Heatsink 4TB is Samsung’s top PCIe 4.0 NVMe SSD with a factory-fitted heatsink, which makes it a drop-in upgrade for the PS5 as well as desktop PCs. Samsung rates it at up to 7,450 MB/s sequential read and 6,900 MB/s write, with up to 1,600K random read and 1,550K random write IOPS. It combines a Samsung-designed controller, Samsung V-NAND TLC flash and a 4GB LPDDR4 cache, and it is rated for 2,400 TBW.
Samsung 990 PRO with Heatsink 4TB: Table of Contents
Made for PS5 storage upgrades
Sony asks for a PCIe Gen4 M.2 drive of at least 5,500 MB/s with a cooling structure for the PS5 expansion slot. The Samsung 990 PRO with Heatsink 4TB meets both: it reads at up to 7,450 MB/s, ships with its heatsink already fitted, and Samsung lists it as PS5 compatible. At 80.15 x 25 x 8.88 mm it fits the console slot, and 4TB holds a large library of PS5 games without constant deleting.
DRAM cache and in-house controller
Unlike budget drives that borrow system memory, the 990 PRO has a dedicated 4GB LPDDR4 cache and a Samsung-designed controller. That keeps random performance high under mixed workloads, from large game installs to 4K and 8K video editing. Its 2,400 TBW rating is the highest of any 990 PRO capacity, and MTBF is rated at 1.5 million hours.
Heatsink with RGB lighting
The heatsink spreads heat so the drive holds its speed during long transfers, and an RGB light strip can be customised or switched off in Samsung Magician. Samsung says the 990 PRO with Heatsink delivers over 50% better performance per watt than the 980 PRO. Average power is 6.5 W when reading and 5.7 W when writing, with 55 mW at idle.
Samsung Magician and security
Samsung Magician software checks drive health, updates firmware and benchmarks performance on Windows. The Samsung 990 PRO with Heatsink 4TB also supports AES-256 hardware encryption and TCG Opal 2.0, useful for work desktops that store sensitive files.
Who This Is Not For
The heatsink raises the height to 8.88 mm, so the Samsung 990 PRO with Heatsink 4TB does not fit most laptops or handheld PCs; the version without a heatsink is the one for those. It is a PCIe 4.0 drive, so on a PCIe 5.0 motherboard it runs at Gen4 speed. If you only need a boot drive for office work, a 1TB or 2TB drive costs far less, and older PCs with only SATA ports cannot use M.2 NVMe drives.
Below are the full technical details and box contents for Samsung 990 PRO with Heatsink 4TB, taken from the official Samsung specification.
Samsung 990 PRO with Heatsink 4TB: Technical Details
- Model: Samsung 990 PRO with Heatsink (MZ-V9P4T0CW)
- Capacity: 4TB
- Interface: PCIe 4.0 x4, NVMe 2.0
- Form factor: M.2 2280 with heatsink
- NAND: Samsung V-NAND TLC
- Controller: Samsung in-house controller
- Cache: 4GB LPDDR4
- Sequential read: Up to 7,450 MB/s
- Sequential write: Up to 6,900 MB/s
- Random read / write (QD32): Up to 1,600K / 1,550K IOPS
- Endurance: 2,400 TBW
- MTBF: 1.5 million hours
- Power: 6.5 W read / 5.7 W write average, 55 mW idle
- Security: AES-256 encryption, TCG Opal 2.0
- Dimensions: 80.15 x 25 x 8.88 mm, up to 28 g
- Operating temperature: 0 to 70°C
- Lighting: RGB, controlled in Samsung Magician
- Warranty: 1-year warranty from Totot
FAQ – Samsung 990 PRO with Heatsink 4TB
Is Samsung 990 PRO with Heatsink 4TB an original sealed product?
Yes. Every Samsung 990 PRO with Heatsink 4TB we ship is original Samsung stock, new and sealed in its retail box, never a refurbished or opened unit.
Is the Samsung 990 PRO with Heatsink 4TB compatible with PS5?
Yes. Samsung lists it as PS5 compatible, and it exceeds Sony’s 5,500 MB/s recommendation with the heatsink already fitted.
Can I turn off the RGB lighting?
Yes. The lighting can be customised or turned off in Samsung Magician.
Will it fit in a laptop?
No. At 8.88 mm tall with the heatsink it is designed for desktops and the PS5; laptops need the version without a heatsink.
Does it have a DRAM cache?
Yes. It has 4GB of LPDDR4 cache.
How much data can it write over its life?
2,400 TB of rated endurance (TBW), according to Samsung.
How long does delivery take in the UAE?
Up to 3 business days anywhere in the UAE, and delivery is free on orders from AED 300. Cash on delivery, Tabby and Tamara are available at checkout, where the current delivery fee for your order is shown.
Order Samsung 990 PRO with Heatsink 4TB from Totot
Looking for Samsung 990 PRO with Heatsink 4TB at the best price in the UAE? Samsung 990 PRO with Heatsink 4TB is delivered across the UAE in up to 3 business days, free on orders from AED 300, with cash on delivery and Tabby or Tamara instalments, backed by a 1-year warranty from Totot. Faulty or mismatched items can be returned within 14 days, and any shipping damage should be reported within 48 hours of delivery. Browse more in our Gaming collection and SSD, or see the official Samsung 990 PRO with Heatsink page for full manufacturer detail.
Every Samsung 990 PRO with Heatsink 4TB order is checked, packed and dispatched from our UAE warehouse.
