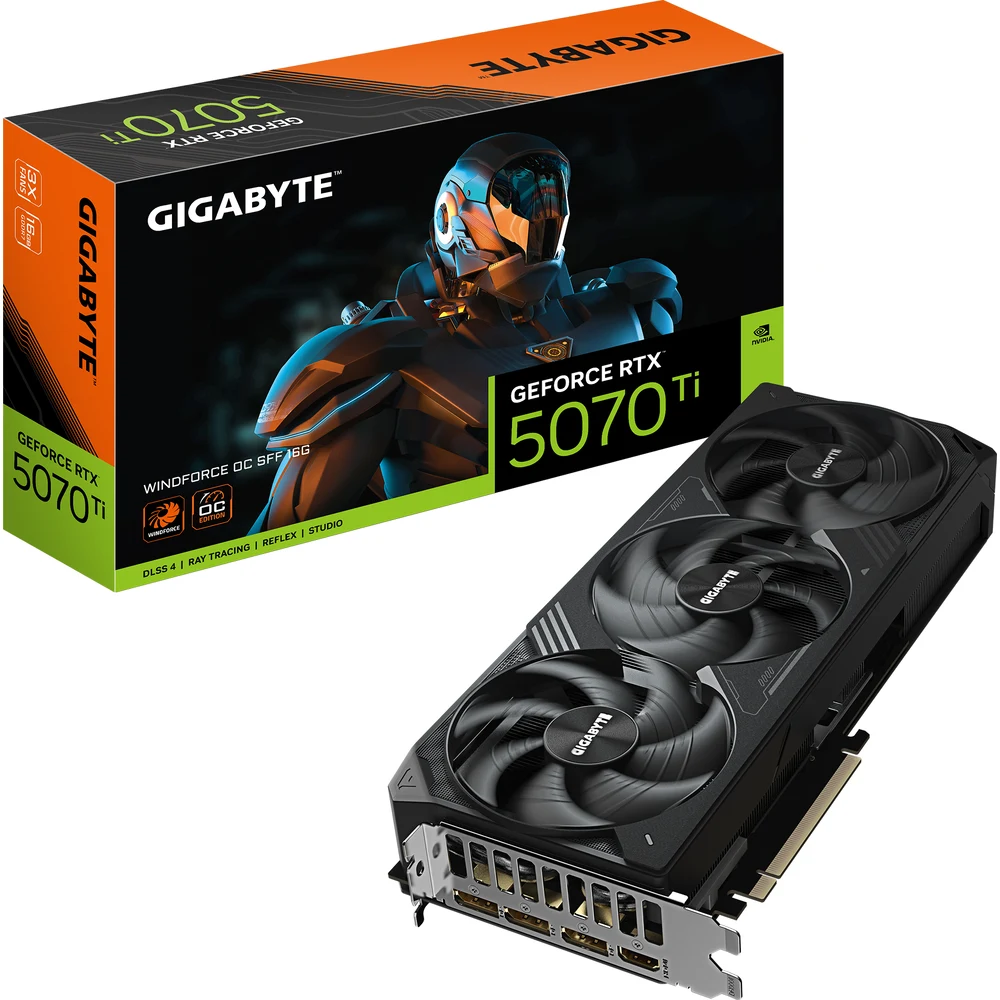

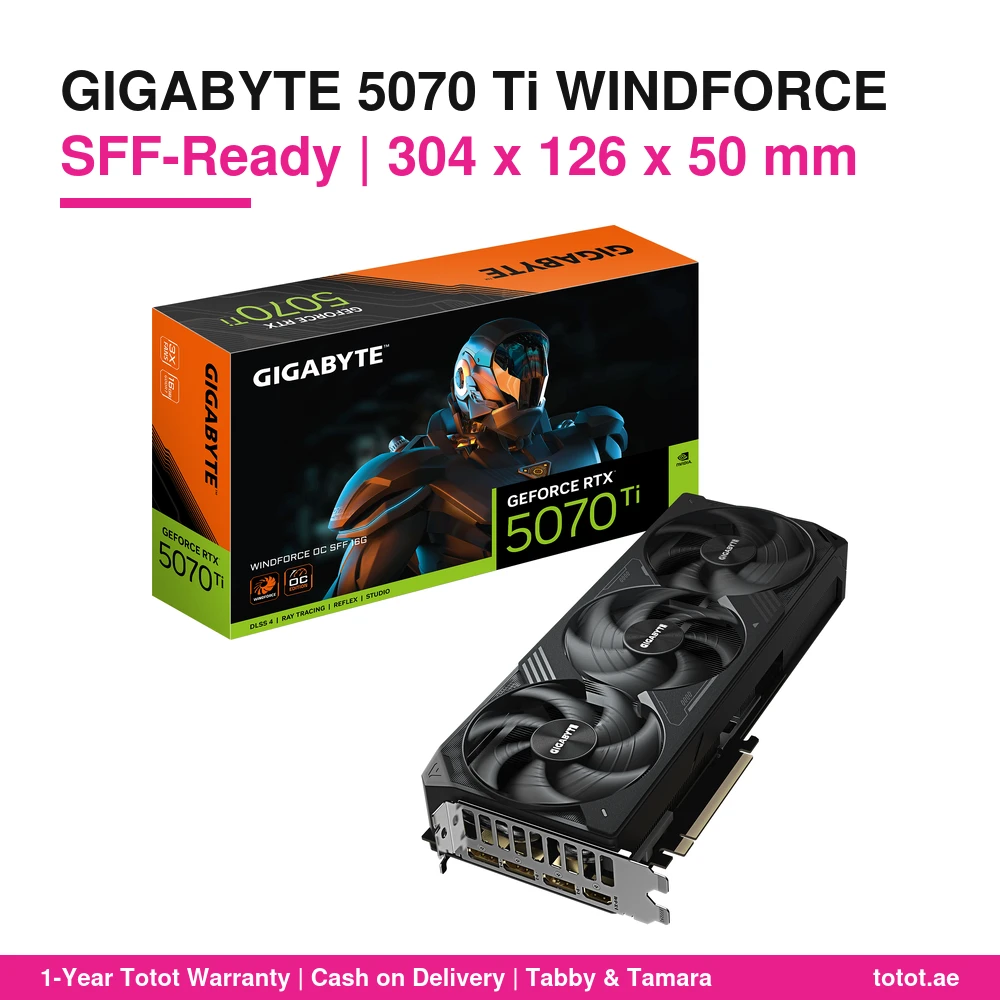

The GIGABYTE RTX 5070 Ti WINDFORCE OC SFF is GIGABYTE’s GV-N507TWF3OC-16GD, a GeForce RTX 5070 Ti built to NVIDIA’s small form factor guideline: 304 mm long, 126 mm tall and 50 mm thick, with a factory core clock of 2497 MHz against the 2452 MHz reference. Inside are 8,960 CUDA cores and 16GB of 28 Gbps GDDR7 on a 256-bit bus, cooled by GIGABYTE’s WINDFORCE system with Hawk fans, composite copper heat pipes and server-grade thermal gel. It is ready stock in the UAE for compact and mid-size builds that still want 16GB of VRAM.
Table of Contents
Why Choose the GIGABYTE RTX 5070 Ti WINDFORCE OC SFF
Full-size RTX 5070 Ti cards often take three slots; PNY’s Triple Fan version, for example, is 59.6 mm thick. GIGABYTE kept this one to a 50 mm height, which is what lets it meet the NVIDIA SFF-Ready specification. For a small case, a living-room PC or a mid-tower with a vertical GPU mount, that 10 mm saving decides whether a 16GB card fits at all. The GIGABYTE RTX 5070 Ti WINDFORCE OC SFF also comes with a Versatile VGA holder in the box, so the card stays level in a standard horizontal mount.
GIGABYTE recommends a 750 W power supply, and the GIGABYTE RTX 5070 Ti WINDFORCE OC SFF takes one 16-pin connector. The included adapter converts it from two PCIe 8-pin cables, so most decent 750 W units can run it without a native 12V-2×6 lead.
WINDFORCE Cooling: Hawk Fans and Alternate Spinning
The cooler on the GIGABYTE RTX 5070 Ti WINDFORCE OC SFF is GIGABYTE’s WINDFORCE design. Its Hawk fans, according to GIGABYTE, deliver up to 53.6% more air pressure and 12.5% more air volume than earlier fans without extra noise. The fans use alternate spinning, so neighbouring fans turn in opposite directions to cut turbulence and raise pressure through the fin stack. A graphene nano lubricant extends the life of the sleeve-bearing fans by 2.1 times, by GIGABYTE’s figure.
Underneath, composite copper heat pipes join a large copper plate that sits directly on the GPU. Server-grade thermal conductive gel, a non-fluid gel that resists deformation, cools the VRAM and MOSFETs in place of traditional thermal pads. An extended heatsink with screen cooling lets air pass straight through the end of the card, and 3D Active Fan keeps the fans off during light loads and low-power games.
Clocks, Memory and Outputs of the GIGABYTE RTX 5070 Ti WINDFORCE OC SFF
GIGABYTE lists a core clock of 2497 MHz for the GIGABYTE RTX 5070 Ti WINDFORCE OC SFF, 45 MHz above the 2452 MHz reference. Memory is 16GB of GDDR7 at 28 Gbps on a 256-bit interface, connected over PCI-E 5.0. The card supports DirectX 12 and OpenGL 4.6.
Outputs are three DisplayPort 2.1b and one HDMI 2.1b, with support for four displays at once and a maximum digital resolution of 7680 x 4320. That is enough for a high-refresh 1440p or 4K monitor on DisplayPort and a TV on HDMI from the same card.
Dual BIOS, Ultra Durable Parts and GCC Software
A Dual BIOS switch chooses between Performance mode, the factory default, and Silent mode. GIGABYTE’s Ultra Durable build uses top-grade metal chokes, lower-ESR solid capacitors, a 2oz copper PCB, lower RDS(on) MOSFETs and an over-temperature protection design. The PCB also has smooth solder joints at the back to reduce the risk of cuts or damaged components while installing.
The GIGABYTE RTX 5070 Ti WINDFORCE OC SFF has a metal backplate with a bent edge that is fastened to the I/O bracket, which stiffens the card. GIGABYTE Control Center (GCC) adjusts clock speed, voltage, fan mode and power target in real time.
Who This Is Not For
The GIGABYTE RTX 5070 Ti WINDFORCE OC SFF is not for buyers who want RGB lighting; GIGABYTE does not list any for this WINDFORCE model. It is not for very small Mini-ITX cases with under 304 mm of GPU length, so measure before ordering. It needs a 750 W PSU per GIGABYTE and either a 16-pin cable or two free PCIe 8-pin cables. Overclockers chasing the highest factory clocks may prefer GIGABYTE’s larger GAMING or AORUS cards, and 1080p 60 Hz players will not use what the card offers.
Ordering in the UAE
The GIGABYTE RTX 5070 Ti WINDFORCE OC SFF is in stock in the UAE and reaches every emirate within up to 3 business days. Delivery costs nothing on orders from AED 300, so this card ships free. Choose cash on delivery, Tabby or Tamara. If the card is defective or not the item you ordered, return it within 14 days; please tell us about any shipping damage within 48 hours of delivery.
Browse more Graphics Cards at Totot, or see the official GIGABYTE page for full product details.
Technical Specifications
- Model: GIGABYTE GeForce RTX 5070 Ti WINDFORCE OC SFF 16G (GV-N507TWF3OC-16GD)
- GPU: NVIDIA GeForce RTX 5070 Ti, Blackwell architecture
- CUDA cores: 8,960
- Core clock: 2497 MHz (reference card: 2452 MHz)
- Memory: 16GB GDDR7, 28 Gbps, 256-bit
- Bus: PCI-E 5.0
- Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
- Max displays / resolution: 4 displays; 7680 x 4320 digital
- API: DirectX 12, OpenGL 4.6
- Dimensions: L 304 x W 126 x H 50 mm
- Form factor: NVIDIA SFF-Ready, ATX PCB
- Power connector: 1 x 16-pin
- Recommended PSU: 750 W
- Cooling: WINDFORCE: Hawk fans with alternate spinning, composite copper heat pipes, copper plate, server-grade thermal gel, 3D Active Fan
- BIOS: Dual BIOS (Performance / Silent)
- In the box: Graphics card, VGA manual, 1 x 12V-2×6 to 2 x PCIe 8-pin adapter, Versatile VGA holder and its manual
- Software: GIGABYTE Control Center (GCC)
- Warranty: 1-year warranty from Totot
FAQ
Is the GIGABYTE RTX 5070 Ti WINDFORCE OC SFF SFF-Ready?
Yes. GIGABYTE says it complies with NVIDIA’s small form factor specification, at 304 x 126 x 50 mm.
What is the clock speed of the GIGABYTE RTX 5070 Ti WINDFORCE OC SFF?
2497 MHz core clock, per GIGABYTE, against 2452 MHz for the reference card.
Which PSU does the GIGABYTE RTX 5070 Ti WINDFORCE OC SFF need?
750 W is GIGABYTE’s recommendation. It uses one 16-pin input, and a 12V-2×6 to 2 x PCIe 8-pin adapter is included.
Do the fans stop at idle?
Yes. GIGABYTE’s 3D Active Fan turns the fans off under low load and in low-power games.
Does it have RGB lighting?
No. GIGABYTE does not list RGB lighting for this WINDFORCE OC SFF model.
Is there an anti-sag bracket?
Yes. A Versatile VGA holder and its manual are in the box.
Is there a warranty?
Yes. The card comes with a 1-year warranty from Totot.
