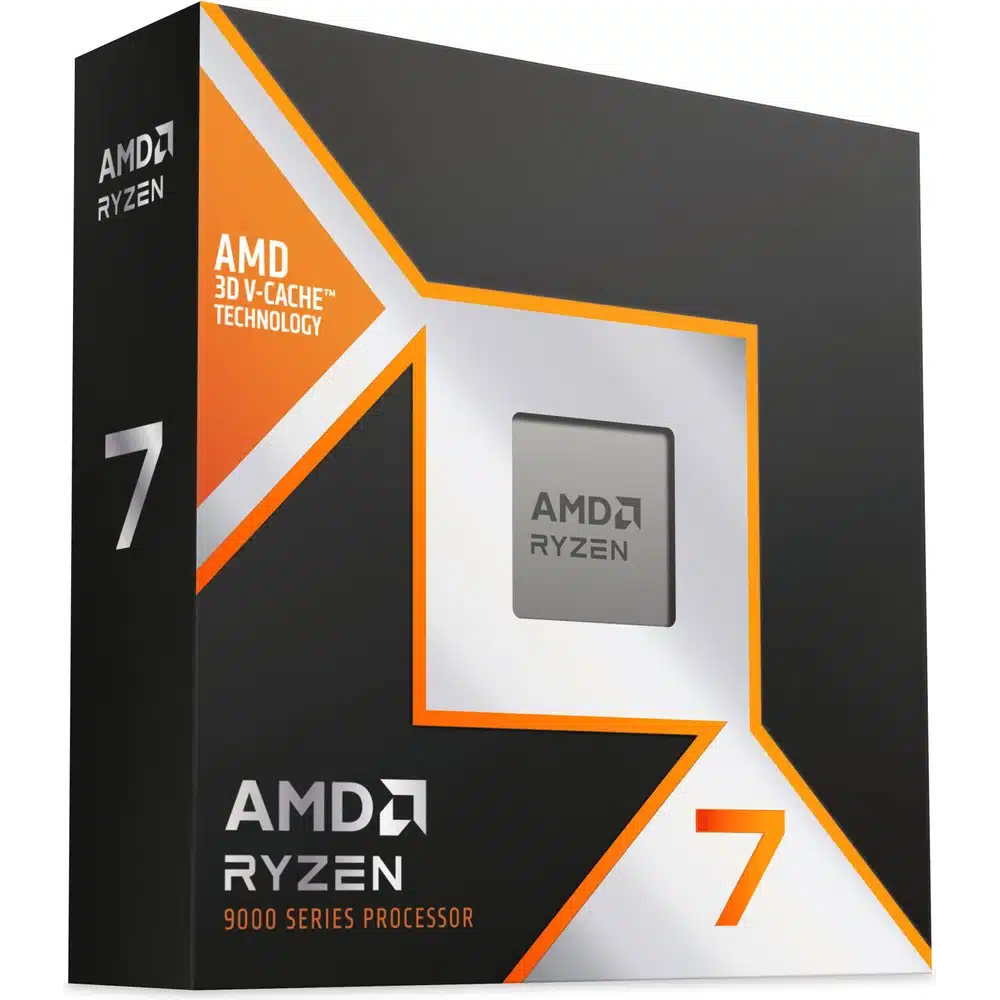

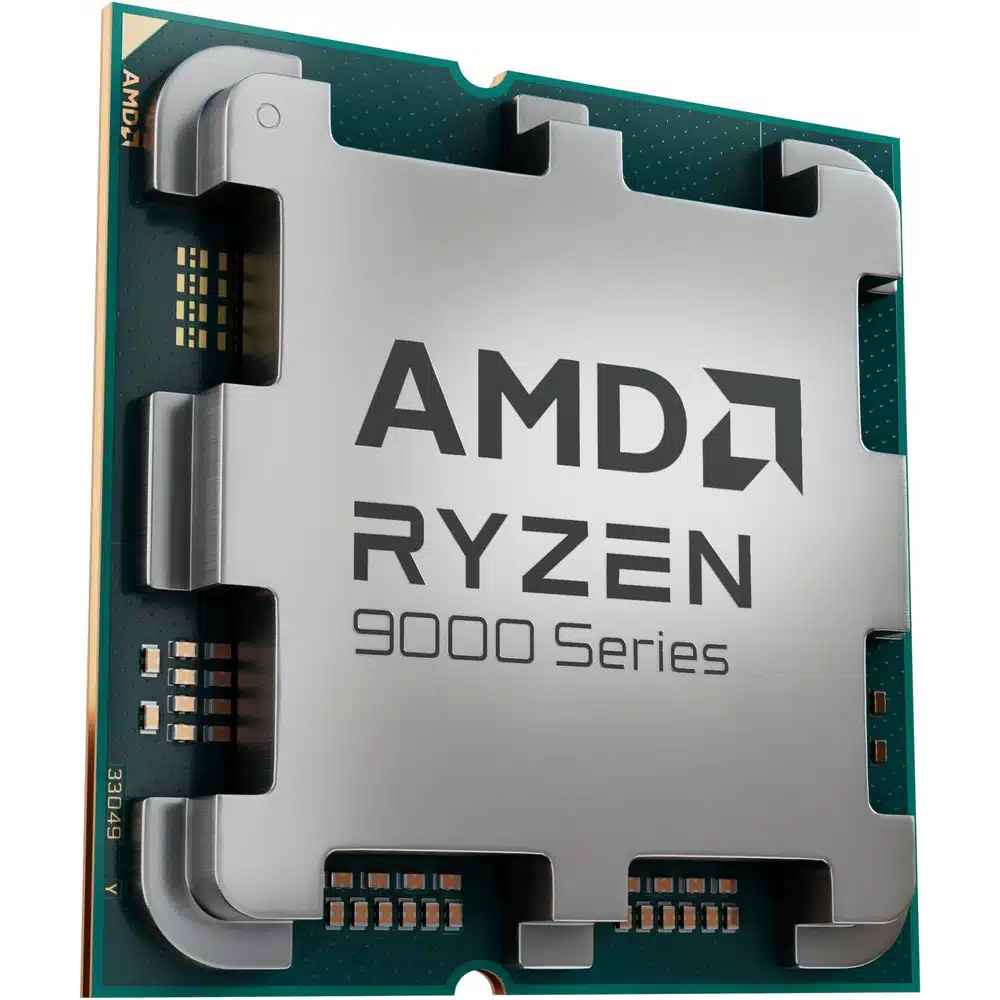

AMD Ryzen 7 9800X3D 8-Core Desktop Processor (Zen 5, AM5)

The AMD Ryzen 7 9800X3D is a high-performance desktop processor designed for gaming, multitasking, and advanced workloads. Built on AMD’s Zen 5 architecture, this CPU brings the benefits of modern design, increased efficiency, and powerful performance to the AM5 platform.

At its heart, the Ryzen 7 9800X3D features 8 cores and 16 threads, allowing it to handle both heavily threaded tasks and single-thread-sensitive applications with ease. The base clock is 4.70 GHz, and it can boost up to 5.20 GHz under load, providing the responsiveness needed for both gaming and productivity tasks. Godukkan+2NanoReview.net+2

One of the most notable features of this CPU is its 96 MB of L3 cache, implemented via AMD’s 3D V-Cache technology. This large cache helps reduce memory latency and improves performance in gaming workloads, where fast access to data is critical. Mansa Computers | 100% 5* Reviews

For thermal design, the 9800X3D has a TDP of 120 W, which signals moderate power consumption for a high-end gaming CPU. B&H Photo Video+1 Because of this, users are recommended to use a suitable AM5-compatible cooler, particularly if they plan to run the CPU under sustained load. REDFOX

This processor supports DDR5 memory, and its dual-channel memory controller can handle up to 192 GB, which makes it ideal for high-bandwidth applications like rendering, simulation, or heavy gaming. Mansa Computers | 100% 5* Reviews It also supports PCIe 5.0, providing future-proof bandwidth for next-generation GPUs and storage devices. REDFOX

Another key feature is the integrated Radeon graphics with 2 cores at 2.20 GHz. While not meant to replace a dedicated GPU, these iGPU cores are useful for setup, diagnostics, or non-GPU-intensive workloads. Godukkan

Overclocking and performance tuning are supported. The 9800X3D works with AMD Precision Boost 2, Precision Boost Overdrive, and EXPO memory technology, giving advanced users control over voltage, boost behavior, and memory performance. REDFOX+1

Additionally, the CPU is rated for a maximum junction temperature (Tjmax) of 95°C, which is standard for high-performance desktop processors. REDFOX The manufacturing process uses TSMC’s 4 nm FinFET technology for the compute die and 6 nm for the I/O die, enabling high efficiency and performance. Godukkan+1

Connectivity and platform compatibility include support for various AM5-compatible chipsets (such as A620, B650, X670, X870) and full PCIe 5.0 functionality, making this CPU suitable for modern and future PC builds. REDFOX

In terms of use case, the AMD Ryzen 7 9800X3D is particularly well-suited for gamers who demand high FPS performance, content creators working on large projects, and anyone building a powerful workstation. Its cache architecture gives it an edge in gaming performance without sacrificing multi-threaded performance in productivity tasks.

Whether paired with a high-end graphics card or used as the heart of a streaming and game-capture rig, this CPU offers strong all-around performance. The large 3D V-Cache allows for improved throughput in game loops, while the efficient design and overclocking headroom enable a customization path for future performance tuning.

Because the processor is not shipped with a cooler in many retail versions, users will need to plan for a high-quality aftermarket cooler to maintain temperature control and performance stability, especially under load.

Overall, the AMD Ryzen 7 9800X3D stands as a compelling choice for high-performance desktop systems where gaming, productivity, and future expandability are key priorities.
